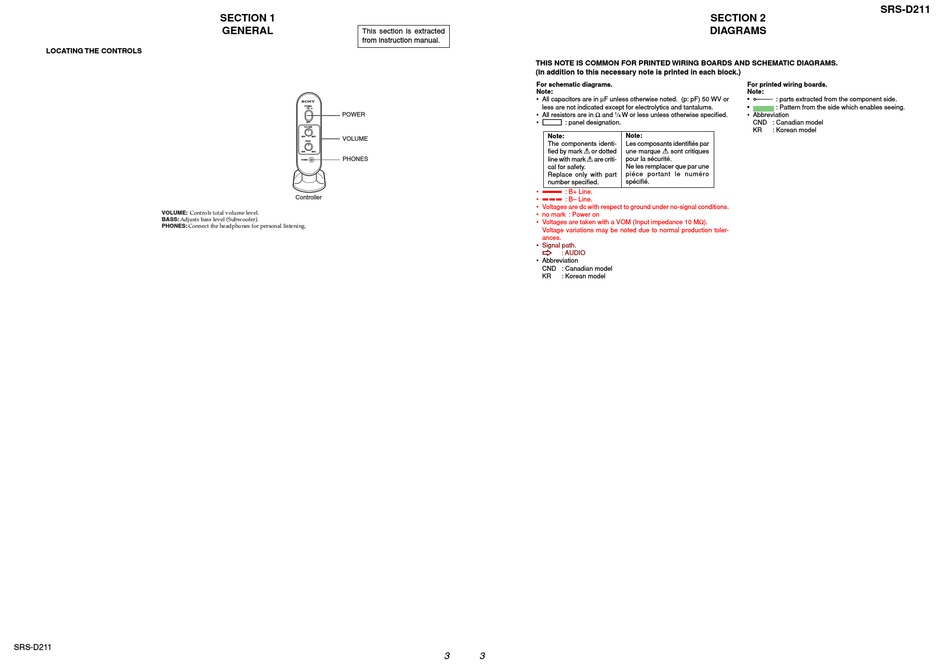

LOCATING THE CONTROLS
Controls total volume level.
VOLUME:
Adjusts bass level (Subwoofer).
BASS:
Connect the headphones for personal listening.
PHONES:
SRS-D211
SECTION 1

GENERAL

This section is extracted
from instruction manual.
POWER
ON
POWER
OFF
VOLUME
MIN
MAX
VOLUME
BASS
MIN
MAX
PHONES
PHONES
Controller
THIS NOTE IS COMMON FOR PRINTED WIRING BOARDS AND SCHEMATIC DIAGRAMS.
(In addition to this necessary note is printed in each block.)
For schematic diagrams.
Note:
• All capacitors are in µF unless otherwise noted. (p: pF) 50 WV or
less are not indicated except for electrolytics and tantalums.
• All resistors are in Ω and
1
/
W or less unless otherwise specified.
4
• C : panel designation.
Note:
The components identi-
fied by mark 0 or dotted
line with mark 0 are criti-
cal for safety.
Replace only with part
number specified.
• A : B+ Line.
• B : B– Line.
• Voltages are dc with respect to ground under no-signal conditions.
• no mark : Power on
• Voltages are taken with a VOM (Input impedance 10 MΩ).
Voltage variations may be noted due to normal production toler-
ances.
• Signal path.
F
: AUDIO
• Abbreviation
CND : Canadian model
KR
: Korean model
3
3
SECTION 2

DIAGRAMS

For printed wiring boards.
Note:
• X : parts extracted from the component side.
: Pattern from the side which enables seeing.
• Abbreviation
CND : Canadian model
KR
: Korean model
Note:
Les composants identifiés par
une marque 0 sont critiques
pour la sécurité.
Ne les remplacer que par une
piéce portant le numéro
spécifié.
SRS-D211
