Camera Features
Camera Features
•
Patented Mirroring Technology Makes Camera Invisible to the Human Eye Yet Allows The
Camera to Properly View
•
Security Mirror Form Factor is Ideal
for Commercial/Retail Applications
•
Cable Pass-through Wall Mount
Bracket Conceals and Protects
Connection Cables
•
Ceiling flush mountable or wall
mountable using included cable pass-
through bracket.

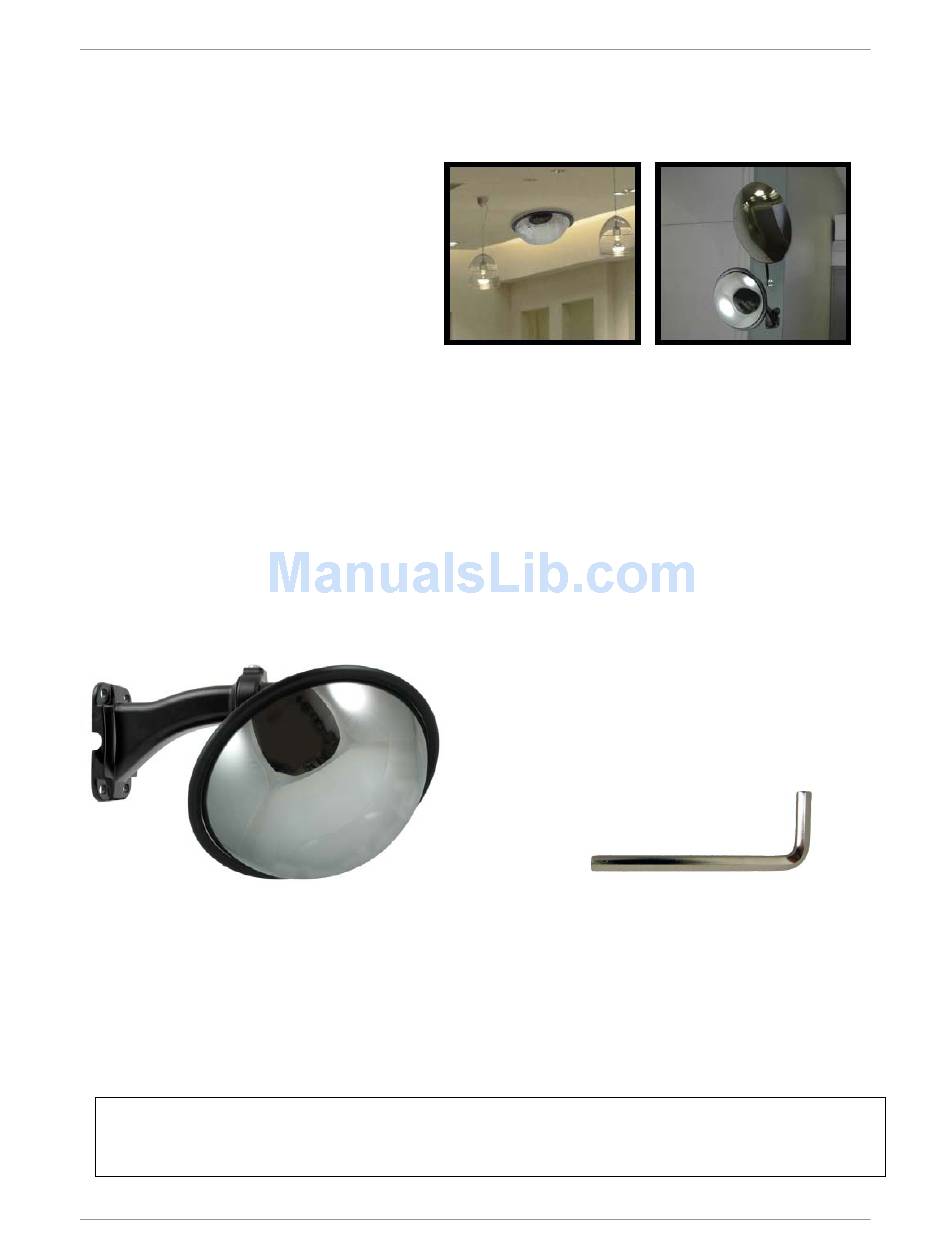

Package Contents
1 x Color Concealed Security Mirror
Camera with Mounting Stand
WARNING
- REGULATED 12V DC 500mA power supply is provided for use with this camera. Use of
a non-regulated, non-conforming power supply can damage this product and will void the warranty.
2
Ceiling Flush
Mount
1 x HEX Adjustment Key
(For Mounting Stand)
Wall Mount
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Lorex CNC1020
Summary of Contents for Lorex CNC1020
-
Page 1: Package Contents
Camera Features Camera Features • Patented Mirroring Technology Makes Camera Invisible to the Human Eye Yet Allows The Camera to Properly View • Security Mirror Form Factor is Ideal for Commercial/Retail Applications • Cable Pass-through Wall Mount Bracket Conceals and Protects Connection Cables •... -
Page 2: Mounting Options
Mounting Options The Camera can be installed to a wall or ceiling, or can be ceiling flush mounted using included cable pass-through bracket. Wall Mounting: 1. Mount the camera to the desired mounting surface by firmly attaching the Mounting Bracket using 4 screws (at points listed as Screws 1~4 on the below diagram). -
Page 3: Ceiling Mounting
Installing the Camera & Optional Extension Cable Ceiling Mounting: 1. Remove the Mounting Bracket from the back of the Camera (4 screws) 2. Drill a hole in the ceiling large enough to pass the BNC/Power Cable through. NOTE: If using the Ceiling Mounting method, run the Extension Cable to the location prior to mounting the Camera. - Page 4 Installing the Camera & Optional Extension Cable 1. Connect the optional Extension cable to the Camera: • Connect the BNC & Power ends of the cable to the Camera • Connect the Power Adaptor connector to the AC Power Cable attached to the camera. Remember to check the ends of the cable before permanent installation, as the power connection ends are different (one side has a female barrel...
-
Page 5: Camera Specifications
Camera Specifications Camera Specifications Image Sensor Type Video Format Effective Pixels Horizontal Resolution Scan System Sync System S/N Ratio Iris AES Shutter Speed Min Illumination Video Output Audio Output Lens / Focal Length FOV (Diagonal) Termination IR LED / Night Vision Range Power Requirement Power Consumption Operating Temperature...
