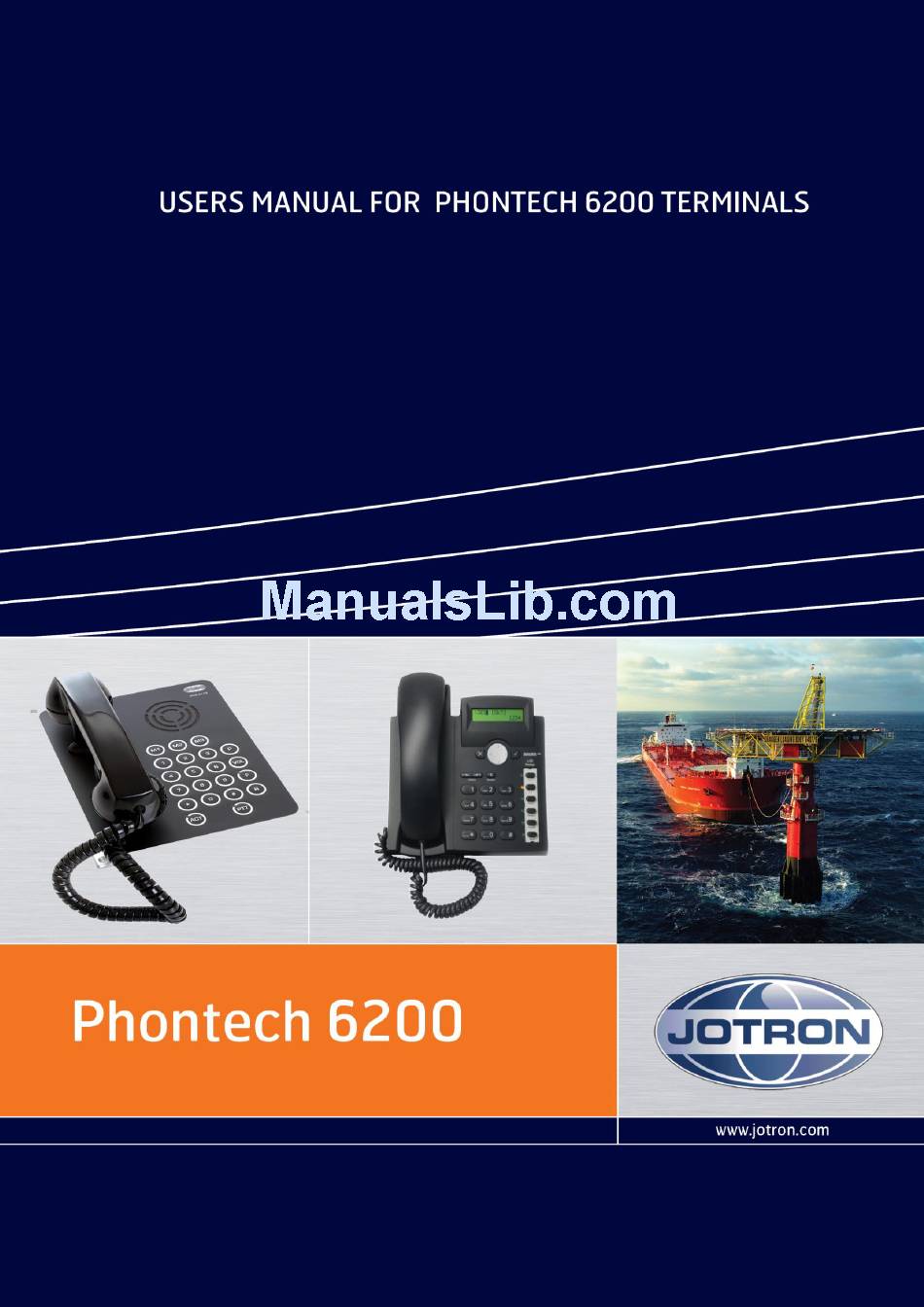

jotron Phonetech 6200 User Manual
  1. Manuals
  2. Brands
  3. jotron Manuals
  4. Telephone
  5. Phonetech 6200
  6. User manual

jotron Phonetech 6200 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Phonetech 6200 and is the answer not in the manual?

Questions and answers

Hassan Mohammed
February 6, 2025

telephone for bridge maker : JOTRON model: 6123 JOTRON - 6123 2 each

0

Subscribe to Our Youtube Channel

Related Manuals for jotron Phonetech 6200

Summary of Contents for jotron Phonetech 6200

  • Page 2 : Intercom Unit POTS : Plain Old Telephone Service = analogue DTMF telephones Snom Snom300 IP telephones Push To Talk : Volume (control) PABX : Private Automatic Branch Exchange Jotron AS| Phontech 6200: User handbook  Page ii P/N: 87477 (v.B)
  • Page 3 Amendment Record INIT DATE CHAPTERS VERSION REASON FOR CHANGE 24.05.13 Initial release 22.10.14 Corrected procedures for special numbers Jotron AS| Phontech 6200: User handbook  Page iii P/N: 87477 (v.B)

  • Page 4: Safety Instructions

    The information in this book has been carefully checked and is believed to be accurate. However, no responsibility is assumed for inaccuracies. Jotron AS reserves the right to make changes without further notice to any products or modules described herein to improve reliability, function or design. Jotron AS does not assume any liability arising out of the application or use of the described product.

  • Page 6: Table Of Contents

    HANDSET VOLUME CONTROL: ..................13 LOUDSPEAKER VOLUME CONTROL: ................13 PRIVACY ( ): ....................... 14 RINGER OFF SOUND MODES: ........................14 BACKLIGHT DIMMER CONTROL:..................14 CHANGE RINGTONE: ......................14 Jotron AS| Phontech 6200: User handbook  Page vi P/N: 87477 (v.B)

  • Page 7: System Overview

    Universal Number Discovery. Phontech 6200 is compatible with all existing DICS stations available. Thus, Phontech 6200 offer a unique combination of analogue, digital and IP based communication terminals. Jotron AS| Phontech 6200: User handbook  SYSTEM OVERVIEW Page 1 P/N: 87477 (v.B)

  • Page 8: System Information Tones

    0.5 sec. ON - 0.5sec. OFF 425Hz: Illegal action (i.e. calling an extension without Congestion 0.2sec. ON - 0.2 sec. OFF any intercom unit connected) Jotron AS| Phontech 6200: User handbook  SYSTEM INFORMATION Page 2 TONES: P/N: 87477 (v.B)

  • Page 9: Configuration Dependant Functionality

    It is not possible to define POT members into an alert group, as these are not equipped with the paging facility. Jotron AS| Phontech 6200: User handbook  CONFIGURATION Page 3 DEPENDANT FUNCTIONALITY:...

  • Page 10: Intrusion

    All parties must go through this entry point and select the same room. Jotron AS| Phontech 6200: User handbook  CONFIGURATION Page 4 DEPENDANT FUNCTIONALITY: P/N: 87477 (v.B)

  • Page 11: Special Functions Overview

    The terminal will ring normally until it is activated (off hook) or automatically cancelled after 3 minutes. *081 Echo test Listen to yourself *082 1kHz, 0dBm Listen to the 1kHz/1mW reference signal Jotron AS| Phontech 6200: User handbook  SPECIAL FUNCTIONS Page 5 OVERVIEW: P/N: 87477 (v.B)

  • Page 12: Basic Operation

    ACT key. Speakerphone: 61xx Idle Push the ACT key  Dial tone (loudspeaker)  ACT led on Dial the extension number  Call tone  …….Conversation (handsfree) Jotron AS| Phontech 6200: User handbook  BASIC OPERATION: Page 6 P/N: 87477 (v.B)

  • Page 13: On Hold

    Idle Unhook the handset  Dial tone Dial the extension number  Call tone / extension ringing Press the PTT key  INDIVIDUAL PAGING is engaged Jotron AS| Phontech 6200: User handbook  BASIC OPERATION: Page 7 P/N: 87477 (v.B)

  • Page 14: Transfer A Call

     ….…Conversation Replace the handset 4.10 SET / RESET WAKE UP CALL: Wake up can be activated for a time within the next 24h Jotron AS| Phontech 6200: User handbook  BASIC OPERATION: Page 8 P/N: 87477 (v.B)

  • Page 15: Wake Up Call

    For more information see chapter 4. Idle Unhook the handset  Dial tone Dial [*080]  Tone off, system outputs WHO AM I / IDENTIFICATION information Replace the handset Jotron AS| Phontech 6200: User handbook  BASIC OPERATION: Page 9 P/N: 87477 (v.B)

  • Page 16: Conference: (Config)

    System informs to select conference room Dial the wanted room number  …… Conference Each participant must follow the above sequence. Replace the handset  terminates the participant Jotron AS| Phontech 6200: User handbook  BASIC OPERATION: Page 10 P/N: 87477 (v.B)

  • Page 17: Extended Operation Of Intercom Unit: 61Xx

    Dial [P] Dial location key [0] – [9]  System responds to the programmed sequence, see the description of the operation in question Jotron AS| Phontech 6200: User handbook  EXTENDED OPERATION OF Page 11 INTERCOM UNIT: 61xx P/N: 87477 (v.B)

  • Page 18: Pre-Dialing

    Intercom units have the possibility to pre-dial extensions before going offhook. Idle Dial the extension number Unhook the handset / ACT key  Call tone  ……Conversation Replace the handset Jotron AS| Phontech 6200: User handbook  EXTENDED OPERATION OF Page 12 INTERCOM UNIT: 61xx P/N: 87477 (v.B)

  • Page 19: Intercom Unit Facilities 61Xx

    Push the VOL key successively for higher volume until the top level. On top level the next step is bottom level..…Loudspeaking conversation Jotron AS| Phontech 6200: User handbook  INTERCOM UNIT FACILITIES Page 13 61xx : P/N: 87477 (v.B)

  • Page 20: Privacy (Ringer Off)

    There are five different ringtones to select from. The selected ringtone is stored on the extension in the exchange and maintained through restart. Idle Press the F key  F led on Push the R key for next ringtone. Jotron AS| Phontech 6200: User handbook  INTERCOM UNIT FACILITIES Page 14 61xx : P/N: 87477 (v.B)
  • Page 21  1 sec. of the ringtone is played. When correct tone is selected, press the F key  F led off Jotron AS| Phontech 6200: User handbook  INTERCOM UNIT FACILITIES Page 15 61xx : P/N: 87477 (v.B)
