- Page 1 5 watt handheld UHF CB radio I N S T R U C T I O N M A N U A L...
-
Page 2: Table Of Contents
• Li-Ion battery pack 1700 mAh • AC Adaptor • Desktop fast Charger • Instruction manual Warning: SaFety inFormation The TX6100 is a radio frequency • Do not transmit near electrical transmitting device. blasting equipment or in explosive atmospheres. • When transmitting, keep the antenna more than 25 mm from any part of the •... -
Page 3: Important Information
ONLY use GME approved rechargeable NEVER connect the radio to a power batteries with the supplied charger. source other than the supplied battery. -
Page 4: Possible Issues
ACMA, these channels shall be speech on these channels. Consequently added to those currently listed where the TX6100 has a transmit-inhibit applied voice transmission is inhibited. Currently to channels 22 and 23. transmissions on channels 61, 62 and 63 are also inhibited and these channels are reserved for future allocation. -
Page 5: Features

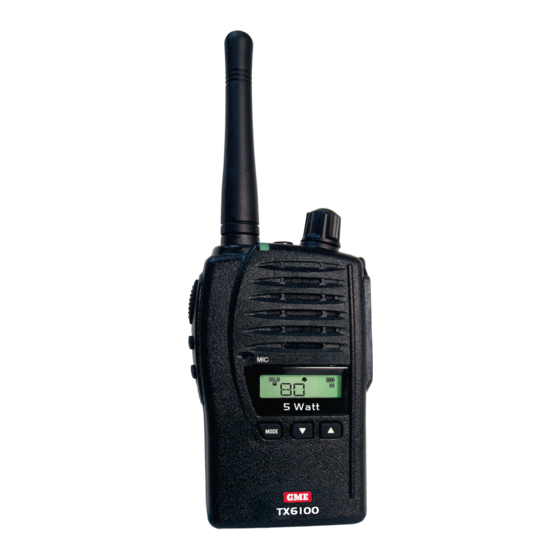

7. Microphone 8. Indicator LED 9. Antenna 10. Duplex/Keypad Lock Button 11. Volume On/Off 12. External Speaker/Mic 5 Watt 13. Speaker 14. LCD Display 15. Channel Up TX6100 16. Channel Down TX6100 IN ST RU CT ION MA NUAL PAGE 5... -
Page 6: Lcd Indicators
lCd indiCatorS 13 14 15 16 Appears when the Indicates the 1. Dual Watch Icon: 10. Channel Display: Dual Watch mode is active. channel number in use. 2. Voice Activated Transmission (VOX) Indicates that 11. CTCSS (CTC) Icon: Appears when the VOX mode Icon: CTCSS tones are enabled on the is activated. -
Page 7: Powering The Radio
Swing Press Press Away Your TX6100 is powered by a 7.4 volt To fit the battery pack 1700 mAh Li-Ion battery pack. When the 1. Locate the bottom of the battery pack battery pack is new, it should be fully... -
Page 8: Conserving Battery Power
Charging the battery pack you require maximum battery life (e.g. a remote site where there is no convenient Your TX6100 is supplied with an AC recharging facility nearby) the following adaptor and desktop fast charger. The hints can greatly reduce the amount of charger will charge a fully discharged power drawn from the battery pack. -
Page 9: General Operation
(and CTCSS code if applicable). the volume. Hold the TX6100 approximately 5 to 8 cms from your mouth with the antenna disPlAy lighting vertical and speak into the built-in The LCD backlighting activates microphone. -
Page 10: Selecting Channels
LED indicator will light RED for about 3 seconds. duPlex button selecting chAnnels Duplex operation allows the TX6100 to In the ‘Standby’ mode, press the key to transmit on a different frequency to that step up one channel or the key to step which it receives. -
Page 11: Scan Key
While scanning, briefly press the keys to select the scan direction. To exit the scan mode, briefly press the SCAN key again. The TX6100 will return to normal operation and ‘SCAN’ will disappear from the display. scAn key NOTE:... -
Page 12: Keypad Lock Function
MODE (the home channel is the channel the feature settings of the TX6100. The Radio was on at the time scanning following chart shows the order of these was activated). You can then transmit selections: and receive on that channel. -
Page 13: Digitally Coded Squelch
DCS code. (A list of available have CTCSS codes selected. codes is shown on page 18.) 4. Press and hold the key (or press MODE key momentarily) to confirm and store your selection. TX6100 IN ST RU CT ION MA NUAL PAGE 13... -
Page 14: Transmitter Power
2 seconds. The ‘DCS’ icon will appear and store your selection. on the display. DCS is now enabled on The TX6100 should now display the ALL channels that have DCS codes selected channel number along with ‘HI’ selected. -
Page 15: Dual Watch Settings
3. Press and hold the key (or press MODE Momentarily press the key. This SCAN key momentarily) to confirm is equivalent to setting the DW mode and store your Squelch level selection. TX6100 IN ST RU CT ION MA NUAL PAGE 15... -
Page 16: Roger Beep Tone Settings
SEVEN (7) times 1. Press the MODE to select the Roger Beep setting mode. The TX6100 provides 5 user selectable call ‘Rb’ will be displayed along with a alarm melodies to alert other users to your flashing incoming call. When enabled, the melody can be transmitted to another user where 2. -
Page 17: Ctcss Tone Frequencies
79.7 151.4 82.5 156.7 85.4 162.2 88.5 167.9 91.5 173.8 94.8 179.9 97.4 186.2 100.0 192.8 103.5 203.5 107.2 210.7 110.9 218.1 114.8 225.7 118.8 233.6 123.0 241.8 127.3 250.3 TX6100 IN ST RU CT ION MA NUAL PAGE 17... -
Page 18: Dcs Tone Frequencies
FreQUenCieS CODE CODE CODE CODE PAGE 18 INS T RUC TI ON M AN UA L TX6100... -
Page 19: Uhf Cb Operating Frequencies
477.325~ 476.725 477.350~ 476.750 477.375 476.775 477.400 476.800 476.4375~ 476.825 476.4625~ 476.850 476.4875~ 476.875 476.5125~ 476.900 476.5375~ 476.925 476.5625~ 476.950 476.5875~ 476.975 476.6125~ 477.000 476.6375 477.025 476.6625 Continued over page TX6100 IN ST RU CT ION MA NUAL PAGE 19... - Page 20 # Telecommand/Selcall use only. Voice transmission is inhibited as required by AS/NZS 4365:2011. ^ Road Channel ~ Repeater Channels • Guard band channels. Voice transmission is inhibited as required by AS/NZS 4365:2011. PAGE 20 INS T RUC TI ON M AN UA L TX6100...
-
Page 21: Specifications
RF Output Power: Low: 1 watt High: 5 watts. Maximum Deviation: +/- 2.5 kHz. NOTE: Specifications are typical unless otherwise indicated and may be subject to change without notice or obligation. TX6100 IN ST RU CT ION MA NUAL PAGE 21... -
Page 22: Against Defects
Standard Communications Pty Ltd ACN 000 which we are satisfied are defective. 346 814 (We, us, our or GME). Our contact We warrant any replacement parts details are set out in clause 2.7. for the remainder of the period of warranty for the goods into which 1. -
Page 23: Warranty Period
4. Warranty period Communications Pty Ltd. 4.1 We provide the following warranty on Unit B, 22-24 College Street, GME and Kingray products. No repair Gladesville, NSW 2111, Australia. or replacement during the warranty Telephone: (02) 9879 8888 period will renew or extend the Fax: (02) 9816 4722. - Page 24 Part Number: 310416 Drawing Number: 44169-5...
