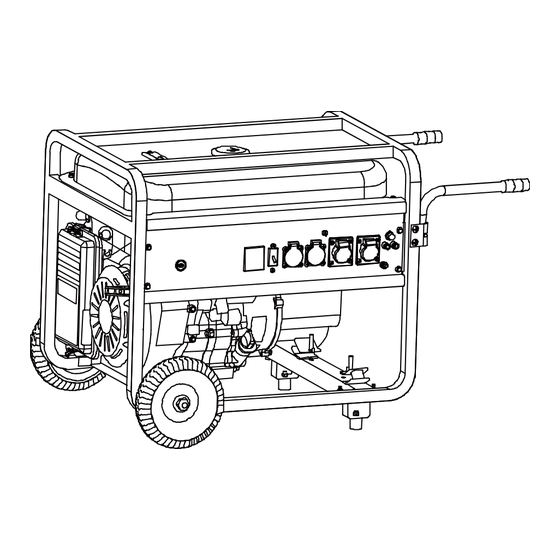

Schwarzbau AG-HA-6500 Owner's Manual

Gasoline generator

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

AG-HA-6500

GASOLINE GENERATOR

OWNER'S MANUAL

BEFORE OP ERATIGN THIS EQUIP MENT

P LEASE READ THESE INSTRUCTIONS CARE FU LLY

Table of Contents

Need help?

Do you have a question about the AG-HA-6500 and is the answer not in the manual?

Questions and answers

Summary of Contents for Schwarzbau AG-HA-6500

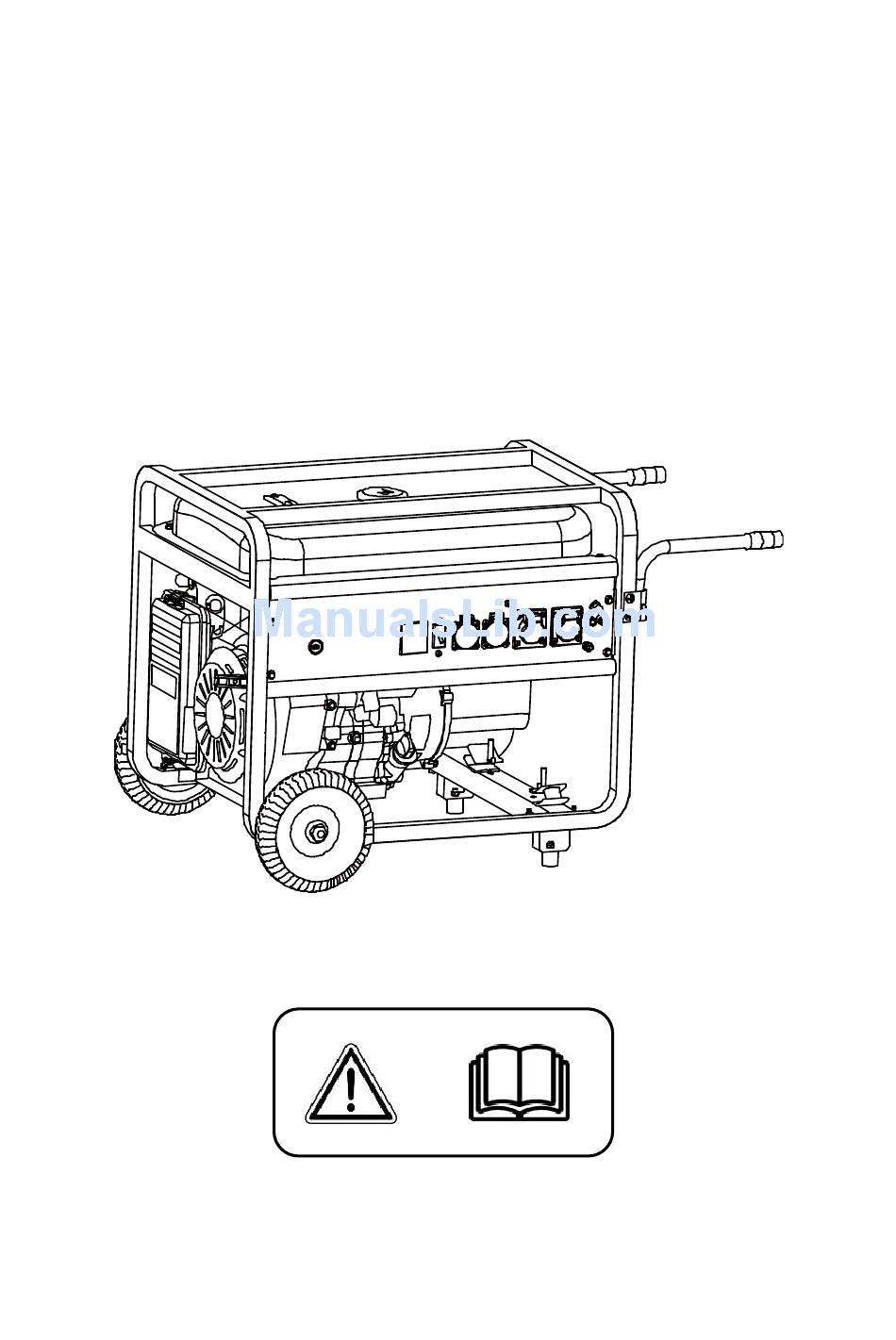

Page 1 AG-HA-6500 GASOLINE GENERATOR OWNER’S MANUAL BEFORE OP ERATIGN THIS EQUIP MENT P LEASE READ THESE INSTRUCTIONS CARE FU LLY...
Page 2 （I）WARNING 1. Read the operator’s instruction manual. 2. Attention! Exhaust gases are toxic. Do not operate the generator in a room without ventilation system! 3. Children should be protected by keeping them at a safe distance from the generator set! 4.
Page 3: Names Of Parts
1. Names of Parts （1）Fuel tank （2）Fuel tank cap （3）Fuel gauge （4）Choke rod （5）Air cleaner （6）Fuel valve （7）Recoil Starter grip （8）Engine switch （9）Voltage meter （10）Oil filler cap （11）AC circuit breaker （12）230V AC socket (13) Voltage switch (14) 110V AC socket （15）Ground connection terminal （16）DC output terminal （17）DC circuit breaker...
Page 4 ① Uncover the oil mouth then clean the engine oil ruler with clean cloth. ② Plug the engine oil ruler into the oil mouth and don’t turn it. If the oil level is below the lower limit of the engine oil ruler you should add some engine oil.
Page 5: Starting The Engine
3. Starting the engine (1) Disconnect any load from the AC socket, and turn off the alternating current circuit breaker. (2) Turn the fuel valve to “ON” position. (3) Turn the wind-block color rod to “CHOKE” position. (4) Turn the engine switch to “ON” position.
Page 6 4．Operating Methods of Generator In order to keep your generator in good condition, Please follow the rules: (1) Avoid improper operation, make sure to make your generator ground connection.
Page 7 (2) Electrical equipments, motor-driven devices will produce lots of electric current when they start. The following form will give you a reference when you connect them to generator.
Page 8 (3) When you connect more than two loads on the generator, please connect from high electric current to low electric current successively. When using extension lines or mobile distribution networks the total length of lines for a cross section of 1.5mm should not exceed 60m;...
Page 9 Notice: When you want to connect the generator to the family power, you should ask electricians to fix it. After connecting the load to the generator, check if the connection is right, otherwise it will cause damages of fires. All right Forbid All right...
Page 10: Stopping The Engine
5. Stopping the engine. (1) Turn the AC circuit breaker to the OFF position. Turn the engine switch to the OFF position (3) Turn the fuel valve to the OFF position. Notice: If you want to stop the engine emergently, please turn the engine switch to “OFF”...
Page 11: Maintenance Notice
6．Maintenance Notice: To maintenance of the large assembly, you need a professional. REGULAR SERBICE First Every Every Every PERIOD Perform at every indicated month 3 months 6 months year month or operating hour Daily interval, whichever occurs first ITEM 20 Hrs. 50 Hrs.
Page 12: Changing Oil
(1) Changing oil Drain the oil while the engine is still warm to assure rapid and complete draining. 1. Remove the drain plug and filler cap, and drain the oil. Retighten the plug securely. 2. Refill with the recommended oil (see page 10) and check the level. OIL CAPACITY: 0.6L CAUTION: Used motor oil may cause skin cancer if repeatedly left in contact with the skin for prolonged periods.
Page 13: Air Cleaner Service
(2) Air cleaner service A dirty air cleaner will restrict air flow to the carburetor. To prevent carburetor malfunction, service the air cleaner regularly (page 16). Service more frequently when operating the generator in extremely dusty areas. WARNING! Never use gasoline or low flash point solvents for cleaning the air cleaner element.
Page 14: Spark Plug Service
(3) Spark plug service Recommended spark plug: BP6ES, SPR6ES (NGK) F6TC, F6RTC (LD) To ensure proper engine operation, the spark plug must be properly gapped and free of deposits. 1. Remove the spark plug cap. 2. Clean any dirt from around the spark plug base. 3.
Page 15: Fuel Filter Service
6. Attach the plug washer and thread the plug in by hand to prevent cross threading. 7. After a new spark plug has been seated by hand, it should be tightened 1/2 turn with a wrench to compress its washer. If a used plug is being reinstalled, it should only require 1/8 to 1/4 turn after being seated.
Page 16 WARNING! After installing the filter cup, check for leaks and make sure the area is dry before starting the engine. 7．TRANSPORTING/STORAGE WARNING! When transporting the generator, turn the engine switch OFF and keep the generator level to prevent fuel spillage. Fuel vapor or spilled fuel may ignite.
Page 17 3. Slowly pull the starter grip until resistance is felt. At this point, the piston is coming up on its compression stroke and both the intake and exhaust valves are closed. Storing the engine in this position will help to protect it from internal corrosion.
Page 18: Troubleshooting
8．Trouble shooting When the engine will not start:...
Page 19 No electricity at the receptacles: No electricity at the DC terminals...
Page 20 GASOLINE GENERATOR SET Type AG-HA-6500 AC voltage 110/230V~/50Hz AC output: 5000W Power factor: 1.0 Max. AC output 5500W Speed 3000 r/min Weight 83 kg Max. temperature: 40℃ IP23 Max. Attitude: 1000 m Bj2010...
Page 21 Meaning of crossed –out wheeled dustbin: Do not dispose of electrical appliances as unsorted municipal waste, use separate collection facilities. Contact you local government for information regarding the collection systems available. If electrical appliances are disposed of in landfills or dumps, hazardous substances can leak into the groundwater and get into the food chain, damaging your health and well-being.
