Evesham Nav-Cam 7700 Quick Start Manual

A5 size
NAV-CAM

Quick Start

1
3
6
■ CAUTION:
Please read the NAV-CAM User Guide thoroughly
before using your device, paying special attention to the
Important Safety Instructions section. The full User
guide & Hardware Manual can be found on the supplied
CD / DVD.

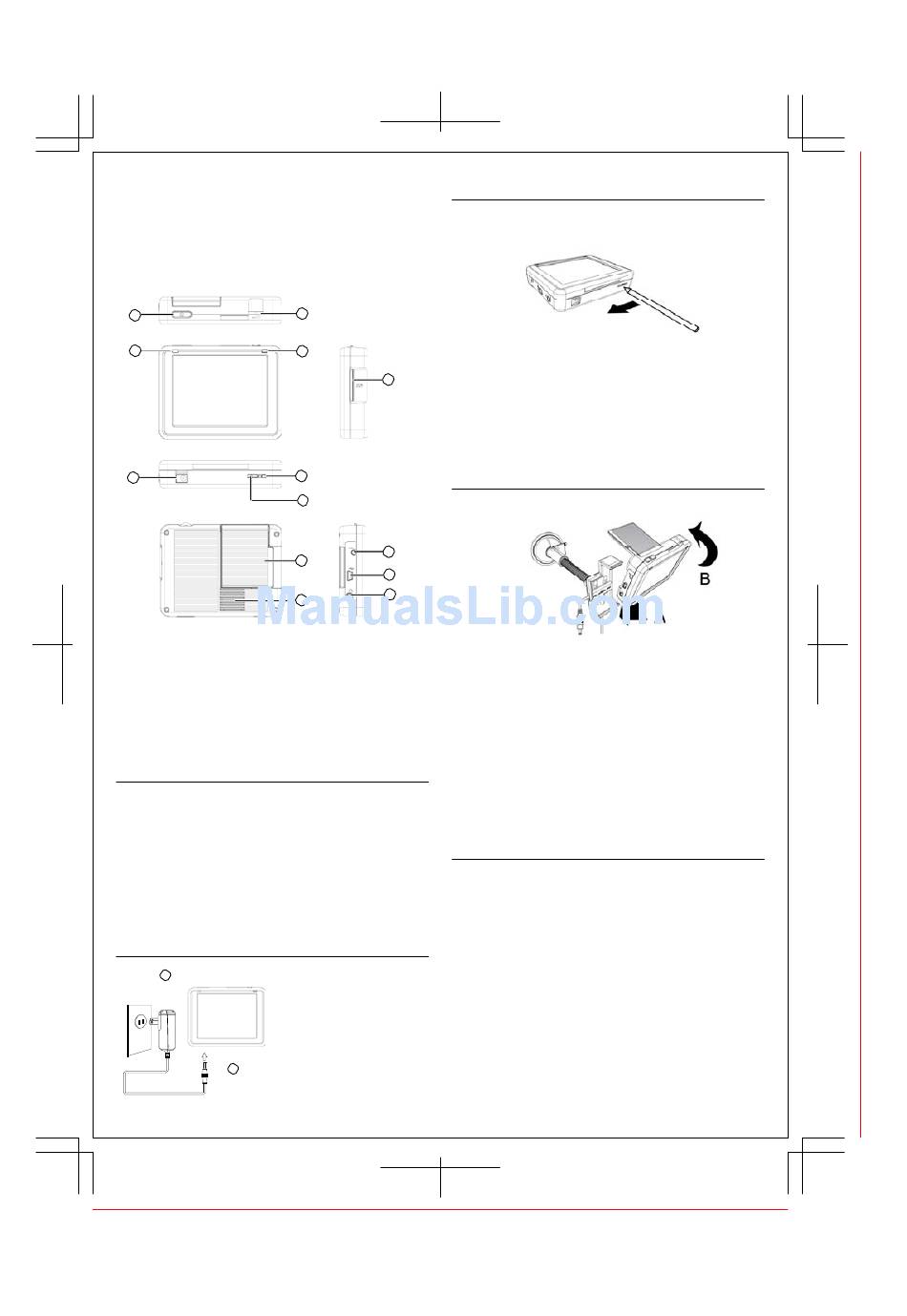

1) Description
1. Power button
2. Volume dial
3. Power LED
4. GPS LED
5. SD/MMC card slot
6. DC/Mains input
connector
7. Soft reset button
2) Charge the Battery
1
Guide
2
4
5
7
8
11
9
12
13
10
8. Hardware reset switch
9. Folding GPS antenna
10. Speaker
11. External GPS antenna
connector
12. Mini USB port
13. Headphone jack
1. Plug the AC adaptor into
the mains power supply.
2. Connect the AC adaptor
cable to the DC in
connector on your device.
■ NOTE:
Charge your device for at
2
least 8 hours before initial
use.
3) Switch the Device On
To switch the device on for the first time, slide the hardware
reset switch left to the "ON" position.
■ NOTE:
After switching your device on for the first time, you should
not use the hardware reset switch again unless you want to
do a hardware reset. See "Resetting the Device" on page 36
of the Hardware Manual on the supplied backup CD / DVD
for more information. Instead, use the power button on the
top of the device.
4) Connect to the Car
1. Place bottom of NAV-CAM device into holder first, at a
slight forward angle (Make sure antenna is extended first).
2. While pushing down, move top of NAV-CAM device
back until it clips into place.
3. Plug in car charger.
■ NOTE:
When removing NAV-CAM device, remember to push down
before angling forward.
In order to receive a GPS signal the antenna should have a
clear 'view' of the sky. The antenna will perform best when
at a 90 degree angle, not fully upright.
5) Where to Find Information
In the supplied Hardware and software Quick Guides.
Warranty information and support details are located on the
supplied warranty card.
Full hardware and software manuals are provided on the
Backup CD /DVD supplied in the box
