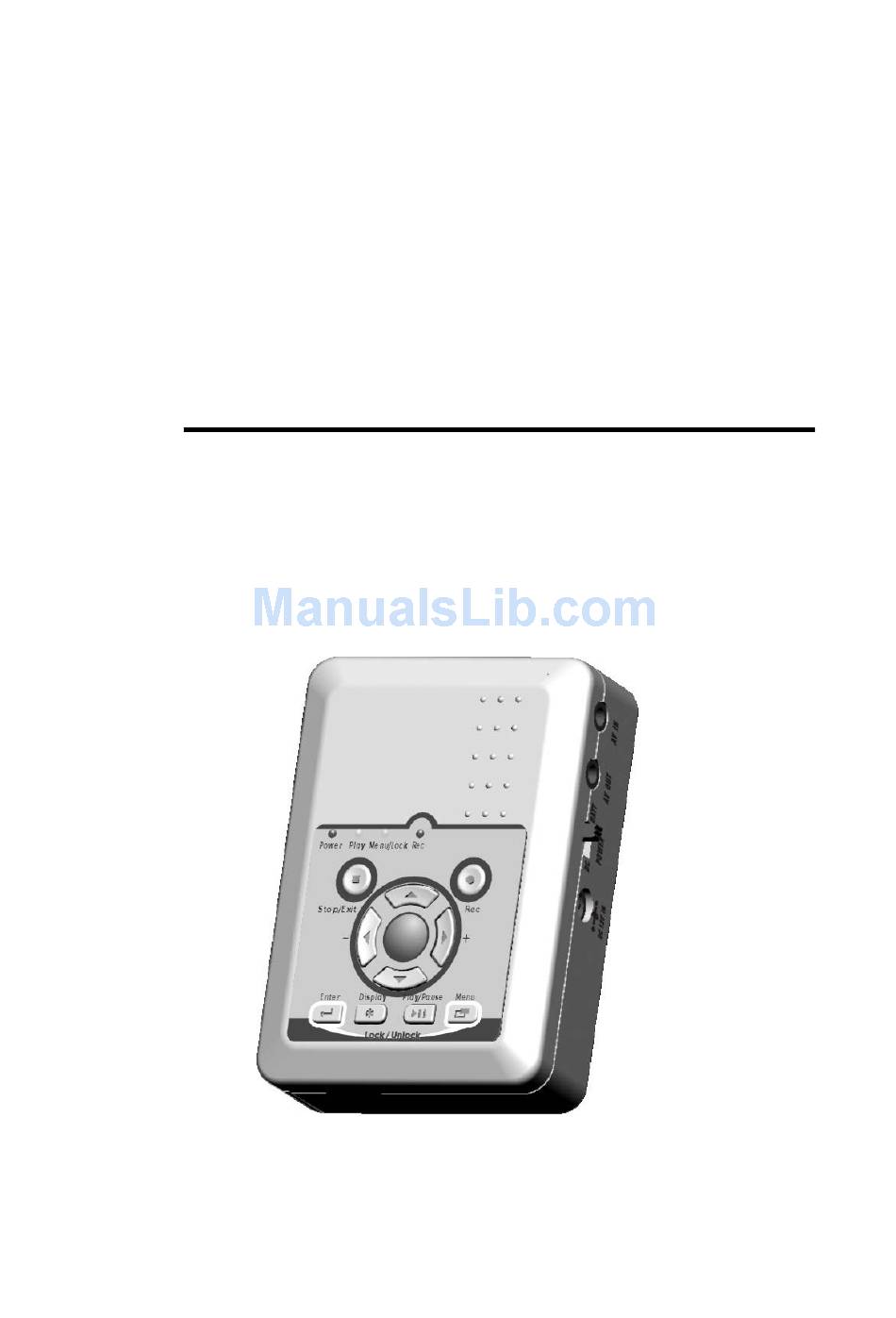

- Page 1 MDVR14H .... M i n i S e c u r i t y R e c o r d e r U S E R M A N U A L MDVR14H_RM 2/27/15...
-
Page 2: Table Of Contents
Contents 1. SAFETY PRECAUTIONS ......................1 2. FEATURES ..........................2 3. PACKING LIST........................... 3 4. NAME and FUNCTION of EACH PART ................... 4 4.1 Front View..........................4 4.2 Side View ..........................5 5. BASIC CONFIGURATION......................6 6. OPERATION..........................7 6.1 Power On..........................7 6.2 Live Mode .......................... -
Page 3: Safety Precautions
1. SAFETY PRECAUTIONS CAUTION RISK OF ELECTRIC SHOCK. DO NOT OPEN! CAUTION : TO REDUCE THE RISK OF ELECTRICAL SHOCK, DO NOT OPEN COVERS (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. It is advised to read the Safety Precaution Guide through carefully before operating the product, to prevent any possible danger. -
Page 4: Features
2. FEATURES The DVR supports NTSC or PAL video system, and auto detects video loss. The DVR is built-in with H.264 video and G.711 audio codec. It supports 1 channel video and 1 channel audio recording and playback operation. Audio/ Video data are recorded directly on the SD card with FAT32 file system and AVI file format. -
Page 5: Packing List
3. PACKING LIST Check to make sure all of the items shown below are included in your Portable Security Recorder Kit. If something is missing, contact your dealer as soon as possible. Item Description Item Picture Mini Portable Security Recorder Audio/ Video Cable Power Adaptor DC 5V/ 1A Input: AC 100~240V... -
Page 6: Name And Function Of Each Part
4. NAME and FUNCTION of EACH PART 4.1 Front View ： Power Indicator. If the batteries are running low, this Power LED indicator flashes. ： Play Indicator Play LED ： Menu / Key Lock Indicator Menu/ Lock LED ： When SD card is writing data during recording, record Rec LED indicator keeps lighting. -
Page 7: Side View
4.2 Side View (15) AV IN: Audio/ Video Input Video In (yellow) AV In Audio In (white) Audio/Video IN: 3.5 mm ∅ jack for audio/ video line in. (16) AV OUT: Audio/ Video Output Video Out (yellow) AV Out Audio Out (white) Audio/Video OUT: 3.5 mm ∅... -
Page 8: Basic Configuration
5. BASIC CONFIGURATION 1. Power: Use the power adaptor supplied, nickel metal hydride (NiMH), alkaline batteries. 2. Video System: Connect the camera, the device auto detects NTSC/ PAL video system (the output video system will be setup the same as its input video system). Without connecting the camera, the video system setup will be the same as its previous setup. -
Page 9: Operation
6. OPERATION 6.1 Power On 1. The power switch is situated on the right side of the device, switch to DC when using the supplied power adaptor or switch to BATT when using battery. NOTE 1: Booting time (does not include SD card checking process) is about thirty seconds. ... -
Page 10: Record Mode
④ REC type: ： Manual Record ： Schedule Continuous Record ： Motion Detection Record ： No Schedule Record ⑤ Camera status: Indicates external camera connection. ⑥ REC format (resolution) ： CIF resolution in NTSC system ： CIF resolution in PAL system ：... -
Page 11: Playback Mode
the variation exceeds the alarm limitation value. For more information, please refer to 【7.4 Motion Detection Setup】and【7.5 Record Setup】. (3) Continuous Record: Suitable on few constant frame recording or on long-term continuous recording. For more information, please refer to【7.5 Record Setup】. 2. - Page 12 ① Playback Status: ： Press《 / 》button once to playback, press it again to pause. ： Press 《 》 or 《 》 button to Fast Rewind or Fast Forward (Speed: x2/ x4/ x8/ x16/ x32). Press《 / 》button to return to normal speed playback.
- Page 13 ① The user may press《 》or《 》button to move the cursor up or down and setup Year/ Date/ Time. After setup, press《Enter 》button to enter next setup page. ① Year/ Month Setup：Press 《 》 or 《 》 button to select the year or month, press 《...
-
Page 14: Pc Playback
【EVENT SEARCH】 ① Display Page：Display method (Current Page/ All Pages), press《 》or《 》 button to select the previous page or the next page. ② Event Setup：According to the date and time of the incident, press 《 》 or 《 》 button to select the previous or next event recording to playback. -
Page 15: Sd Card Maintenance
6.6 SD Card Maintenance 1. The device supports only FAT32 file system; therefore it is unable to determine other file systems. Please refer to【7.6 SD Card Setup】and proceed “Format”. 2. The system supports only partial SD card file system repair. The system is unable to detect any file system damage, therefore please format the SD card or proceed system recovery on the PC. -
Page 16: How To Download The Updated Software
6.7 How to Download the Updated Software 1. Use the SD card to update your system firmware. 2. Please follow the steps below to update the software: (1) Create a new folder named “firmware” on the SD card and then copy the new firmware into the folder. -
Page 17: Menu Setup
7. MENU SETUP 7.1 Main Menu MENU Content: Basic Menu Operations. Press《 》or《 》button, to select the item. Press《Enter 》button, to enter the sub menu (＞). Press《Stop/Exit 》button to return to previous page. NOTE: All words underlined and bold indicates「Default Value」. 7.2 Search and Play Please refer to (2) Search and Playback under section【6.4 Playback Mode】. -
Page 18: Motion Detection
Press《Stop/Exit 》button to return to monitoring mode or to previous page. Press《 》or《 》button to increase or decrease setup value. ： Y / M / D M / D / Y D / M / Y ① Date Format ② Date/ Time ：... -
Page 19: Record Setup
Motion Detection Area Setup: Motion picture area is divided into (NTSC) 22x15 or (PAL) 22x18 small detection blocks. ① Detection Area：One or more detection blocks form a detection area. ② Cursor：Press《 》 《 》 《 》 《 》button to change the position of the cursor. ③... - Page 20 MENU Content: Basic Menu Operations. Press《 》or《 》button, to select the item. Press《Stop/Exit 》button to return to previous page. Press《 》or《 》button to increase or decrease setup value. ① Video Size 704x480 NTSC 352x240 704x576 352x288 ② Frame rate VIDEO FRAME RATE (fps) SIZE (NTSC)：...
- Page 21 (1) Motion Detection Record： (2) Continue Record：Setup method similar to Manual Record. MENU Content: Basic Menu Operations. Press《 》or《 》button, to select the item. Press《Stop/Exit 》button to return to previous page. Press《 》or《 》button to increase or decrease setup value. ：...
-
Page 22: Sd Card Options
(3) Schedule Setup: ① SCHEDULE SETUP ： Record ON / OFF setup (default setup is OFF). ② MODE ： Press《 》or《 》to select Press《 》or《 》to setup ：Motion Detection Record ：Continuous Record ：Continuous recording and record motion detection events ：N/A 7.6 SD Card Options MENU Content: Basic Menu Operations. -
Page 23: System
① DISK TOTAL ： SD card total capacity. ② DISK REMAIN ： SD card remaining capacity. ③ CARD FULL ： LOOP (Continuous Record)/ STOP (Stop Record) Stop Record – SD card stops recording when the total capacity of the SD-Card is reached (Default). Continuous Record -- SD card continues recording and overwrites recording data from the beginning when the total capacity of the SD-Card is reached... -
Page 24: Status
① LANGUAGE ： Setup menu language. ② COPY SETUP TO SD CARD ： Backup all settings of the device to the SD Card. ③ DOWNLOAD SETUP ： Download settings of the device from the SD Card FROM SD CARD (NOTE). ④... -
Page 25: Trouble Shooting
8. TROUBLE SHOOTING Q1. Does the product support SDHC 32G? A1. Suggested tested brands are as shown below: Brand Capacity Specification A-DATA Class 6 A-DATA Class 6 Apacer Class6 Kingston Class4 Kingston Class 6 Kingston Class 10 Panasonic Class 6 SanDisk Class 4 SanDisk... -
Page 26: Specification
9. SPECIFICATION System NTSC / PAL Video System and Video Loss Auto Detection Codec H.264 AVI File Format 1, 2, … , Maximum fps selectable Maximum: Record Frame Rate NTSC: 30 fps@704x480 Video PAL: 25 fps@704x576 Record Quality Low / Medium / High Recording Date/Time Overlay with Video Images in AVI File Input...
