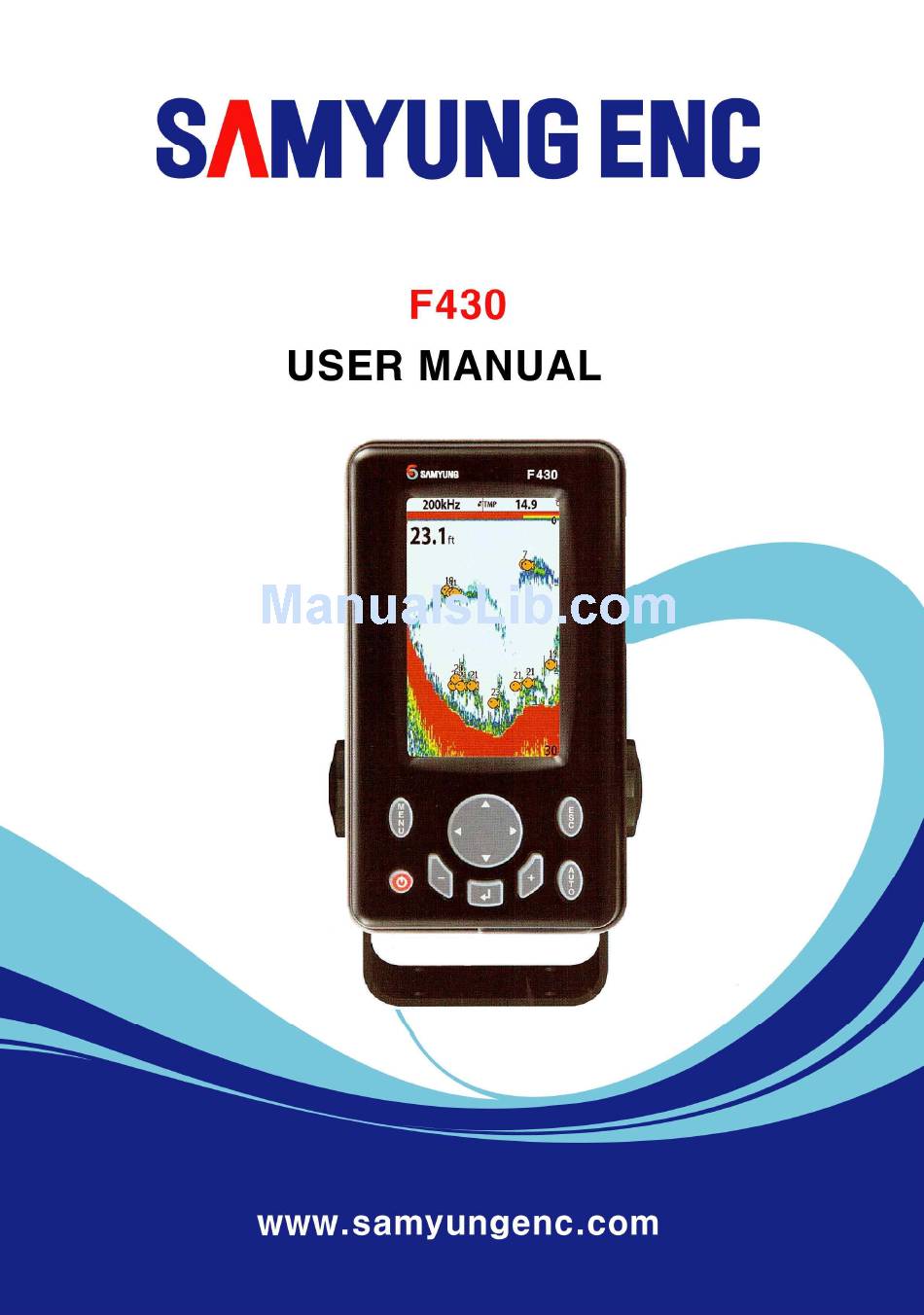

- Page 1 Installation and Operation Manual...
- Page 2 Installation and Operation Manual...
- Page 3 If too dry, the tissue won’t glide easily, and may damage the surface. If you require technical advice or assistance, contact your nearest samyung enc office or visit our website, www.samyungenc.com. Installation and Operation Manual...
- Page 4 Installation and Operation Manual...
-
Page 5: Table Of Contents
1 Introduction ................7 1-1 General Information ..................7 1-2 Specification ....................... 7 1-3 Packing List ......................8 1-4 Optional Accessories ..................8 2 Getting Started ..............9 2-1 Installation ......................9 2-1-1 Bracket Mounting ................9 2-1-2 Flush Mounting ................... 9 2-2 Keys ........................ - Page 6 4 Settings ................29 4-1 System Configuration Settings..............29 4-1-1 Language ..................29 4-1-2 Beep volume ..................29 4-1-3 Auto power ..................29 4-1-4 Features ................... 29 4-1-5 Factory reset ..................29 4-1-6 Unit information................. 29 4-2 Sonar Setting....................30 4-2-1 Frequency ..................
-
Page 7: Introduction

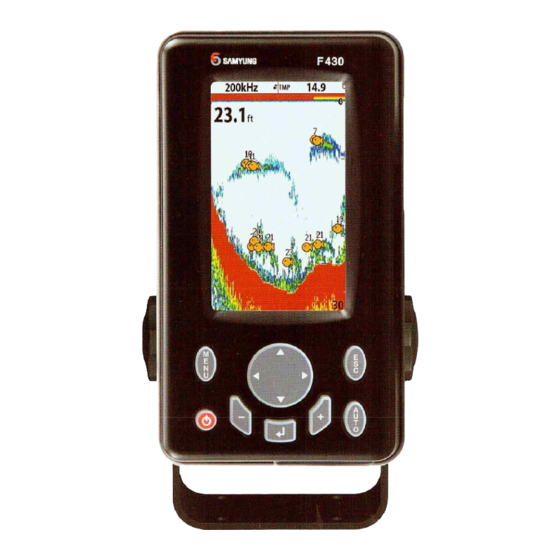

Fishfinder can be connected to external • AIS receiver devices and display information. • DSC VHF radio • Transducer & sensors • Autopilot 1-2 Specification [F430] GENERAL Category Detail Size 192.1 mm(H) x 108 mm(W) x 98.8 mm(D) Display 4.3 “Diagonal, TFT color, 272 x 480 pixels... -
Page 8: Packing List
1-3 Packing List Item List Part number F430 Display F430-E Bracket F430-DB Power Cable Z8-2M-05 Bracket mounting screw F430-BP Protection Cover F430-CB User’s Manual(E) F430-ME Fuse 527-2002-1Q Transducer NTB52-200-10L 1-4 Optional Accessories Model Part number Item List Flush mount Kit N430-TK Ο... -
Page 9: Getting Started
2 Getting Started 2-1 Installation Fish finder is supplied with bracket and flush mounting kit. You can choose a method of installation according to your preference. 2-1-1 Bracket Mounting Before installing ensure the area the bracket is mounted to is strong enough to support the weight of the Fish finder. -
Page 10: Keys
2-2 Keys PAGE – Show main windows and allow you to setup displays as you like. CURSOR – Moves the cursor on the display screen. ESC – Exit from menu and return to previous menu or window. In chart window, it places own ship at center. -
Page 11: Sd Card
2-3 SD Card How to insert and remove SD card is as below. Inserting the SD Card 1 Hold a SD card so that label is NOT visible. Insert NAVIONICS SD card correctly. 2 Open the door, gently push the SD card (DO NOT FORCE) into the slot;... -
Page 12: Data Bar
2-5 Data Bar Data bar displays useful navigation Selecting the Data bar size information at the top of the display. 1 Press and select Data bar. 2 Select Data bar then Data bar size. 3 Select the desired size of data bar. [Large] Displaying Data bar 1 Press... -
Page 13: Compass
2-6 Compass It computes direction from satellite data of To turn the compass off or on: other devices, For the GPS chart plotter to 1 Press and select Data bar. compute direction the vessel must be moving 2 Select Compass. through the water. -
Page 14: Multi Window Display
2-7 Multi Window Display Fish finder can display up to two Changing window size windows at the same time. 1 Press and select Split icon on bottom. 2 Press to change the height of the windows if there is only two windows. Active Window When the screen is divided into two windows, an blue border indicates the active window. - Page 15 Favorite displays The most commonly used windows are called favorite displays and up to six favorite windows can be saved. Also each favorite display can have data bar and compass. Displaying a favorite display 1 Press twice. 2 when above window pops up select a desire display you want.
-
Page 16: General Operation
3 General Operation 3-1 Power on and off Manual power on Manual power off Press down to button until the display is Press and hold for 5 seconds. A counter timer appears on the screen, if you release the button before the countdown timer reaches zero, the chart plotter will remain On. -
Page 17: The
3-3 The page window Press to show the page window and select a function icon you want to display. Note 1 Some function icons require optional units and connected sensors. Data Sonar Navtex Engine Faults Installation and Operation Manual... -
Page 18: Sonar
3-4 Sonar It is available to use a sonar function when this equipment is connected to an depth transducer. 3-4-1 Interpreting the display ① Depth ② Single fish : Fish symbols with depth. ③ Depth line ① ④ Bottom : Hard bottoms such as rock and coral shown as wide bands. -
Page 19: Finding Fish With Frequency
3-4-3 frequency fish finding Sonar frequencies This unit has single frequency of 200kHz to check the status of under the sea. High frequency (200kHz ) The higher ultrasonic signal, the better is the resolution. For this reason the 200 kHz frequency is ideal for detailed observation of ①... -
Page 20: Gain
3-4-5 Gain The gain menu To change a mode, The gain is a signal strength received from 1 Press , select Gain. the transducer and the threshold is the level 2 Select a mode. of ultrasonic that is ignored by a set value. 3 If you select a Manual mode, adjust each When you use the manual mode and frequency gain value by pressing... -
Page 21: No Split
3-4-7 No split Single frequency display shows the fish finder record of 200KHz frequency. High Frequency (200 kHz) The 200 kHz frequency is ideal provide a better resolution which means it is ideal for the observation of fish or fish schools. You can also review old sonar records, press to review the history. -
Page 22: Split Bottom
3-4-9 Split bottom Split bottom display provides a normal picture on the right half and a selectable range over and below the bottom line is expanded onto the left half of the screen. This mode is useful for detecting bottom fishes. •... -
Page 23: Gauges
3-5 Gauges The Gauges window displays all the Selecting a Gauges layout information you need during navigation such Data bar may show one of the 6 gauge as water, engine, fuel related information, layouts. etc. To select the Gauges window, press To select a layout from the Gauges window: 1 Press and select Gauge Layout. -
Page 24: Ais
3-6 AIS AIS is an Automatic Identification System for identification and localization of boat. AIS provide a means for boats to exchange and share boat data including identification, position, course, etc. This information can be displayed on the screen of you unit. AIS is intended to assist you to monitor other boats movements to improve safety and prevent collision. - Page 25 [AIS Vessel Information -2] [AIS Vessel Safety message] Installation and Operation Manual...
-
Page 26: Dsc
3-7 DSC This feature requires connection to optional DSC VHF radio. DSC window shows the distress and poll information received from other vessel through DSC VHF radio. 1 Press and Hold Menu, then select the system configuration. 2 Select the optional components and select DSC 3 Press ESC and press DISPLAY from the top page then select DSC. -
Page 27: Poll
3-7-2 Poll Poll Deleting a poll A compatible radio with the unit can request 1 Highlight a received distress call you want the position of other DSC VHF radio equipped to delete. vessels around its position. When the position 2 Press and select Delete. -
Page 28: Navtex
3-8 NAVTEX NAVTEX is an international automated direct Deleting a message printing service for delivery of navigational 1 Move the cursor to a message you want to and meteorological warnings and forecast, as delete. well as urgent marine safety information. 2 Press and select Delete. -
Page 29: Settings
4 Settings The system menu mainly consists of settings which do not require frequent adjustment. To go to system menu, press and hold then select the icon you want. ① System Configuration. ② Fishfinder ③ Memory. ④ AIS. ⑤ Alarms ⑥... -
Page 30: Sonar Setting
4-2 Sonar Settings As an option, you may change the settings of sonar by following the steps below. 1 Press and hold 2 Select the Sonar icon. 4-2-1 Frequency 4-2-7 Advance Settings Sonar frequency is fixed at 200kHz frequency Interference filter of 200KHZ Interference from other equipment operating 4-2-2 Color display... -
Page 31: Memory Settings
4-3 Memory Settings To go to the memory settings: 1 Press and hold 2 Select the Memory icon. A user card is an option SD card which you need to purchase additionally. Before you use a user card it must be formatted. Note that formatting a user card erases all saved data. -
Page 32: Alarm Settings
4-5 Alarm Settings Press long then select Alarms A warning message with beep sound is displayed when an alarm condition is met by user setting. Press to clear the alarm. However, the alarm will be displayed again when the alarm condition occurs again. The unit provides alarms for various functions. 4-5-1 Deep 4-5-5 Low battery Trigger an alarm when the depth value... -
Page 33: Others
4-6 Others Press long then select Others: 4-6-3 Units 4-6-1 Simulate Select a unit of each measure. Turn the simulate mode on or off. Tip: Requires a optional VHF receiver 4-6-2 GPS GPS source with barometer connected: InHg or mB. Fixed as NMEA0183. -
Page 34: Installation
Correct installation is important to the performance of the unit. It is vital to read the entire installation section of this manual and the documentation that comes with the antenna and any other units before starting installation. For further information, please contact Samyung ENC. 5-1 Options and Accessories Optional sensors and instruments •... -
Page 35: Connections
5-2 Connections Fishfinder has connectors that are used to connect to the power supply and to NMEA devices such as AIS receivers, Autopilots and digital equipment. 5-3 Power / Data Cable Power • Connect each equipment as the below picture for Power. Power / Data Cable PIN No.5 FUSE 2A... -
Page 36: Sonar
5-4 Sonar Sonar • Connect each equipment as the below picture for Sonar power. Sonar Installation and Operation Manual... -
Page 37: Nmea 0183
Other NMEA instruments For information on sending NMEA data to NMEA is an industry standard for the instrument, contact Samyung ENC. interconnecting instruments. The chart plotter During setup to send NMEA data to other can be connected to other NMEA instruments. - Page 38 1 YEAR WARRANTY Thank you for purchasing an SAMYUNG ENC product. This product has been thoroughly checked and is covered by the Samyung ENC’s warranty for defects in materials and workmanship under normal use from the date of purchase. This warranty provides for the free repair or replacement of defective parts from our Samyung ENC authorized dealer.
- Page 39 Installation and Operation Manual...
- Page 40 Installation and Operation Manual...
- Page 41 Installation and Operation Manual...
