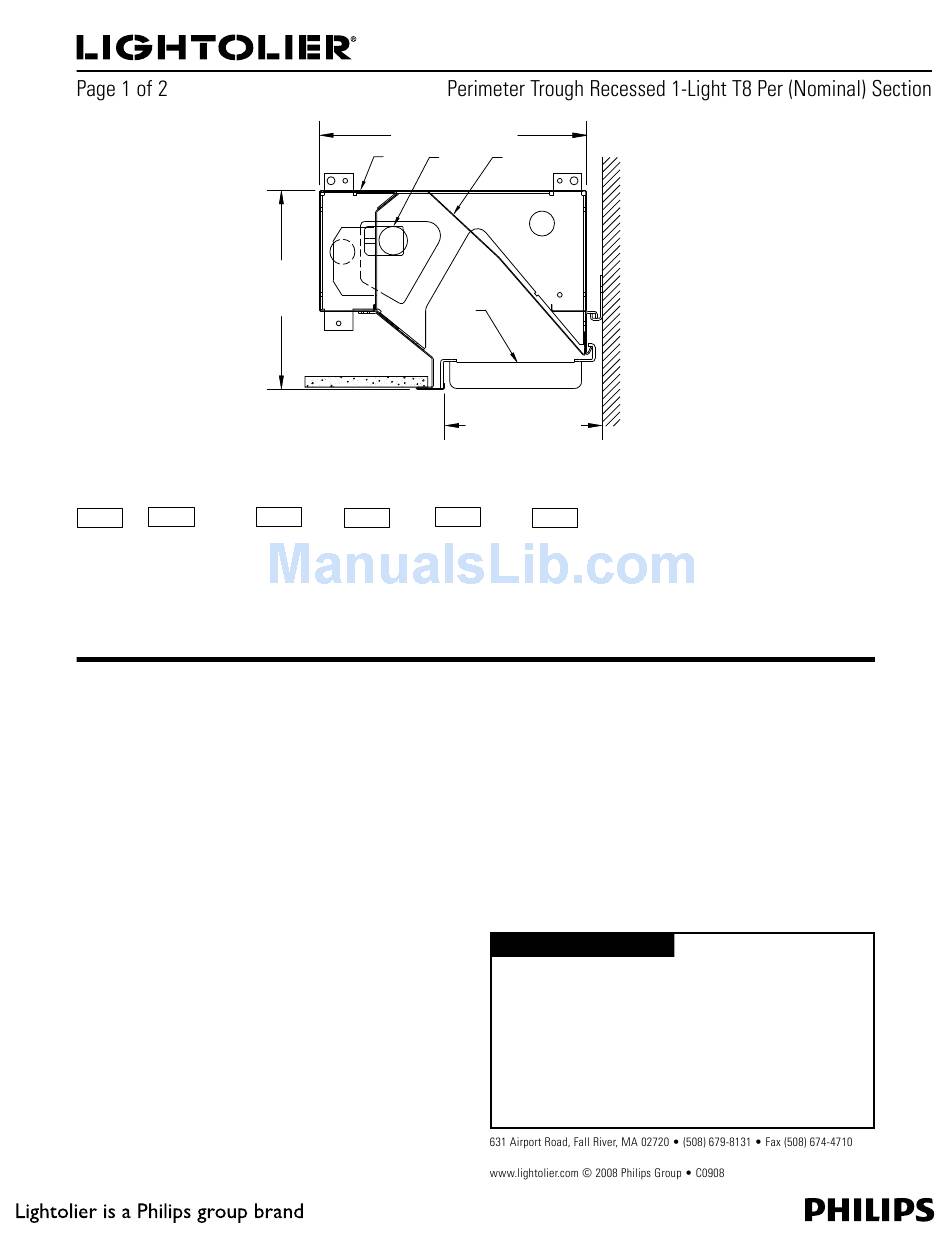

Lightolier PTS6-1 Specification Sheet

(17.78cm)
Module Ordering Information
Family Lamps
PTS6 1
1 = 1 Lamp
Features
1. Housing: Die-formed 20 gauge pre-painted steel. Integral heavy gauge bulk-
heads support housing and trim, permitting modules to be bolted together in
continuous runs and facilitate suspension.
2. Lamping: Cross-sectional one linear T8 fluorescent lamp. Provided by others.
3. Reflector: Precision die-formed CRS finished in a high reflective baked white
powder coat.
4. Louver: Lift and shift straight blade louver constructed from die-formed alu-
minum and painted to match housing. Louver blades are 1" (2.54cm) high on
1-1/8" (2.86cm) centers. (Optional)
Mounting
"J" Rail is first mounted to the wall and the modules connect to the rail for 1/4"
(0.64cm) wall adjustment. Modules are hung from suspension wires attached to the
fixture bulkheads and the structure above.
Electrical
Electronic Ballast: Programmed start, 3 conductor, 12 gauge wire. Color-coded
quick connectors allow easy connection for modular fixutres. Factory installed
ballast disconnect allows the ballast to be disconnected from and reconnected to
incoming power under load without turning the entire circuit off.
Dimming: Advance Mark X, use Advance compatible two-wire control (no extra
control lead required).
Emergency Battery Pack: 450 Lumens @ 90 minimum.
9 3/8" (23.81cm)
1
7"
Shielding Voltage
O = Open 1 = 120V 2 = Two-Foot
L = Lens 2 = 277V 3 = Three-Foot
S = Straight 3 = 347V 4 = Four-Foot
Blade Louver D1 = 120V Dim. 6 = Six-Foot
D2 = 277V Dim. 8 = Eight-Foot
E1 = 120V Emerg.
E2 = 277V Emerg.
* only available on Two-Foot, Three-Foot and Four-Foot versions. See length variations of adjustable fixtures on page 2.
Lighting Systems
2 3
4
5 1/2" (13.97cm)
Length Options
Blank = No Options
A = Adjustable*
X4 = 4 thru wires
X5 = 5 thru wires
A4 = Adjustable 4 thru wires*
A5 = Adjustable 5 thru wires*
Ordering Instructions
Individual Fixtures:
1. Order number of MODULES required.
2. Order one END SET per MODULE.
Continuous Rows:
1. Determine run length.
2. Order the appropriate number of MODULES for the complete ROW.
3. Stagger rows must be completed with an adjustable module.
4. Non-stagger rows must be completed with an adjustable module unless row
lengths are in precise 1 foot (30.48cm) intervals.
5. Order one END SET per ROW.
Labels
UL, cUL and IBEW
Job Information
Job Name:
Cat. No.:
Lamp(s):
Notes:
We reserve the right to change details of design, materials and finish.
PTS6-1
Quarter Scale
(2-light only)
Type:
