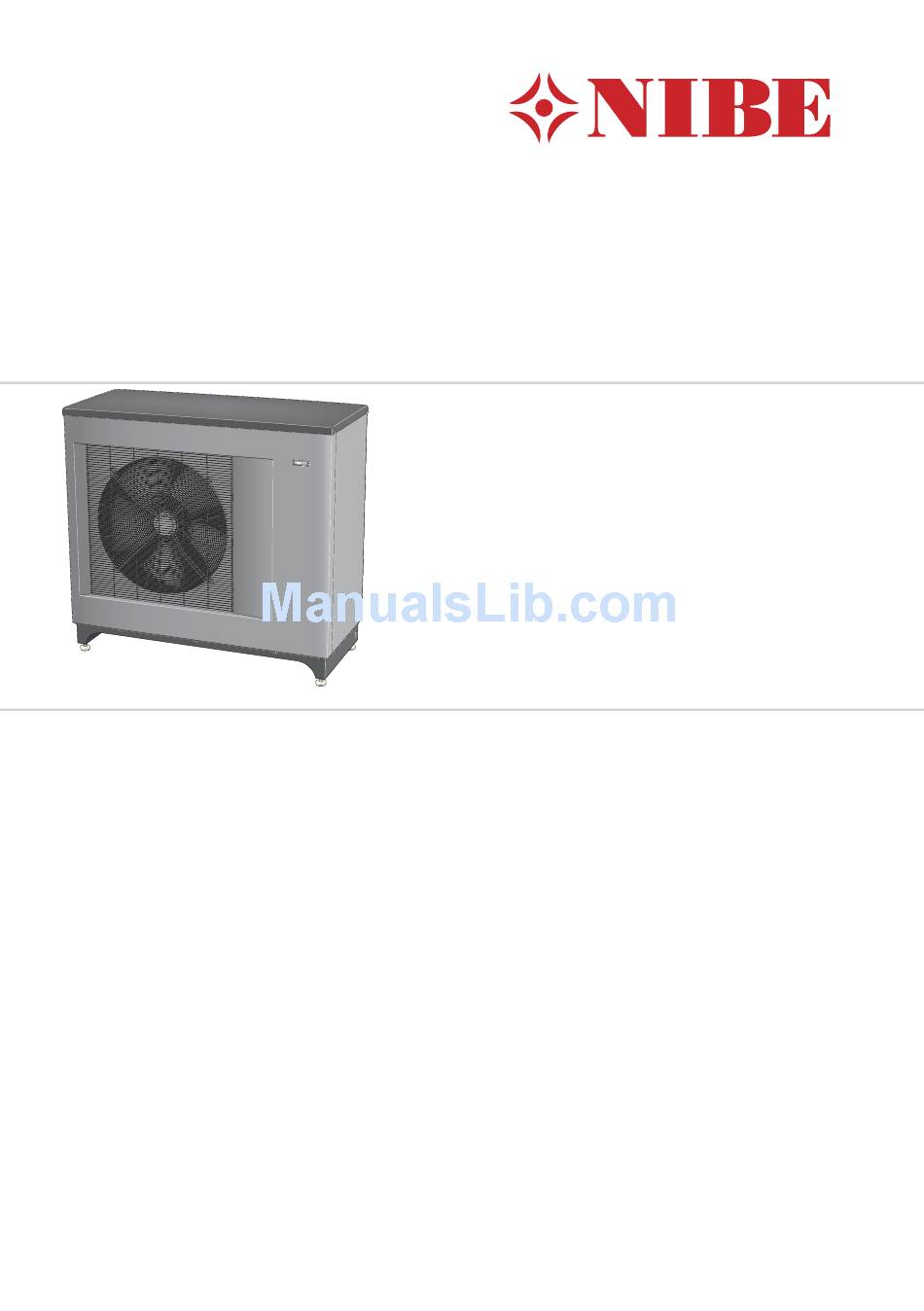

Page 1: User Manual
User manual NIBE™ F2300 Air/water heat pump UHB GB 1138-1 031761... -
Page 3: Table Of Contents
1 Important information Installation data Safety information Safety precautions Serial number Contact information F2300 - An excellent choice 2 The heat pump – the heart of the house Heat pump function Contact with F2300 Maintenance of F2300 3 Disturbances in comfort... -
Page 4: Important Information
Product F2300 Serial number Installation date Installer Serial number must always be given Certification that the installation is carried out according to instructions in NIBE's installer manual and applicable regulations. Date __________________ Signed _________________________ Chapter 1 | Important information NIBE™ F2300... - Page 5 20 min pressor Balance temperature 0 °C Time delay addition 120 min relay Stop temperature -20 °C Min. interval between 60/55 defrosting Start defrosting -3 °C Stop defrosting +20 °C Longest defrosting 7 min Chapter 1 | Important information NIBE™ F2300...
-
Page 6: Safety Information
Marking F2300 is CE marked and fulfils IP24. The CE marking means that NIBE ensures that the product meets all regula- tions that are placed on it based on relevant EU directives. The CE mark is obligatory for most products sold in the EU, regardless where they are made. -
Page 7: Safety Precautions
- Locations with direct exposure to oil mist or steam. - Vehicles and ships. - Locations where machines that generate high frequency harmonics are used. - Locations where cosmetic or special sprays are often used. Chapter 1 | Important information NIBE™ F2300... - Page 8 Wait at least 5 minutes, otherwise there is a risk of water leakage or breakdown. Do not control the system with the main switch. This can cause fire or water leakage. In addition, the fan can start unexpectedly, which can cause personal injury. Chapter 1 | Important information NIBE™ F2300...
-
Page 9: Serial Number
Serial number The serial number can be found at the top left of the rear cover and on the foot of the product. Caution Always give the product's serial number when reporting a fault. Chapter 1 | Important information NIBE™ F2300... -
Page 10: Contact Information
Tel: +43 (0)7662 8963-0 Fax: +43 (0)7662 8963-44 E-mail: mail@knv.at www.knv.at NIBE Wärmetechnik AG, Winterthurerstrasse 710, CH-8247 Flurlingen Tel: (52) 647 00 30 Fax: (52) 647 00 31 E-mail: info@nibe.ch www.nibe.ch Druzstevni zavody Drazice s.r.o, Drazice 69, CZ - 294 71 Benatky nad Jizerou Tel: +420 326 373 801 Fax: +420 326 373 803 E-mail: nibe@nibe.cz... - Page 11 For countries not mention in this list, please contact Nibe Sweden or check www.nibe.eu for more information. Chapter 1 | Important information NIBE™ F2300...
-
Page 12: F2300 - An Excellent Choice
-25°C. Intelligent control Integrated intelligent control for optimum control of the heat pump. At a start signal from an NIBE indoor module or thermostat F2300 is started. F2300 has an automatic 2-step capacity regulator for the fan. Long service life The material has been chosen for a long service life and is designed to withstand the Nordic outdoor conditions. -
Page 13: The Heat Pump - The Heart Of The House
Expansionsventil Kompressor Förångare 0 °C 5 °C -3 °C 2 °C The temperatures are only examples and may vary between different installations and time of year. Chapter 2 | The heat pump – the heart of the house NIBE™ F2300... - Page 14 The temperatures are only examples and may vary between different installations and time of year. Chapter 2 | The heat pump – the heart of the house NIBE™ F2300...
-
Page 15: Contact With F2300
The heat pump is controlled in different ways depending on what your system looks like. If you have a NIBE indoor module heat pump operation can be controlled from there. Refer to the relevant manual for further information. -
Page 16: Maintenance Of F2300
When your heat pump is located outdoors some external maintenance is re- quired. NOTE Insufficient oversight can cause serious damage to F2300 which is not covered by the guarantee. Checking grilles Check that the inlet grille is not clogged by leaves, snow or anything else regularly throughout the year. -
Page 17: In Event Of Long Power Cuts
Care must be exercised so that the heat pump is not scratched when cleaning. Avoid spraying water into the grilles or the sides so that water penetrates into F2300. Prevent F2300 coming into contact with alkaline cleaning agents. Condensation water trough The trough and drain pipe may require cleaning from leaves or similar during the year. -
Page 18: Power Consumption
Flat-screen (Operation: 5 h/day, Standby: 19 h/day) Digital box (Operation: 5 h/day, Standby: 19 h/day) DVD (Operation: 2 h/week) TV games console (Operation: 6 h/week) Radio/stereo (Operation: 3 h/day) Chapter 2 | The heat pump – the heart of the house NIBE™ F2300... - Page 19 Check the accommodation's energy meter regularly, preferably once a month. This will indicate any changes in power consumption. Newly built houses usually have twin energy meters, use the difference to calculate your domestic electricity. Chapter 2 | The heat pump – the heart of the house NIBE™ F2300...
- Page 20 Chapter 2 | The heat pump – the heart of the house NIBE™ F2300...
-
Page 21: Disturbances In Comfort
The following tips can be used to rectify comfort disruption: Basic actions Start by checking the following possible fault sources: That the heat pump is running or that the supply cable to F2300 is con- nected. Group and main fuses of the accommodation. -
Page 22: Low Room Temperature
Incorrect settings in the NIBE indoor module. See the manual for the indoor module. Low room temperature Closed thermostats in several rooms. Set the thermostats to max in as many rooms as possible. External switch for changing the room heating activated. - Page 23 Time conditions do not permit start. Wait until the set conditions have run out. Ice build up in the fan collar Contact your installer! Ice build up on the fan blades and front grille Contact your installer! Chapter 3 | Disturbances in comfort NIBE™ F2300...
-
Page 24: Technical Data
4 Technical data Detailed technical specifications for this product can be found in the installa- tion manual (www.nibe.eu). Chapter 4 | Technical data NIBE™ F2300... -
Page 25: Glossary
Charge coil A charge coil heats the domestic hot water (tap water) in the heater with heating water from F2300. Charge pump See "Circulation pump". Circulation pump Pump that circulates liquid in a pipe system. -
Page 26: Domestic Hot Water
Electrical addition This is electricity that, for example, an immersion heater uses as addition during the coldest days of the year to cover the heating demand that the heat pump cannot manage. Chapter 5 | Glossary NIBE™ F2300... -
Page 27: Expansion Valve
Container where domestic water is heated. Is located somewhere outside the heat pump. Pressostat Pressure switch that triggers an alarm and/or stops the compressor if non- permitted pressures occur in the system. A high pressure pressostat trips if Chapter 5 | Glossary NIBE™ F2300... -
Page 28: Safety Valve
Radiator Another word for heating element. They must be filled with water in order to be used with F2300. Refrigerant Substance that circulates around a closed circuit in the heat pump and that, through pressure changes, evaporates and condenses. During evaporation, the refrigerant absorbs heating energy and during condensing, gives off heating energy. -
Page 29: Item Register
Contact information, 8 Contact with F2300, 13 Control module's function, 11 Disturbances in comfort Troubleshooting, 19 F2300 – An excellent choice, 10 Glossary, 23 Heat pump function, 12 Important information, 2 Contact information, 8 F2300 – An excellent choice, 10... - Page 30 Chapter 6 | NIBE™ F2300...
- Page 32 NIBE AB Sweden Hannabadsvägen 5 Box 14 SE-285 21 Markaryd info@nibe.se www.nibe.eu 031761...
