P
HOENIX
O ' G
WNER S UIDE
U C M
SE AND ARE ANUAL

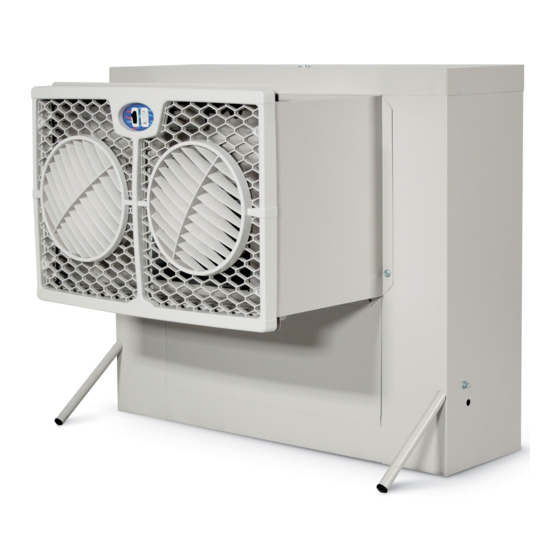

WINDOW COOLER MODEL
WH2906 & HE2913

For Customer Assistance

CALL 1-800-325-6952
DO NOT RETURN TO PLACE OF PURCHASE!
Safety
Operation
Installation Maintenance
Start-up
Trouble Shooting
Read all instructions carefully before installation.
This cooler must be connected to 120 Volt AC, 60 Hz (cycle)
power only. NOTE: Improper voltage will void the pump
and/or motor warranties and may cause serious personal
injury or property damage.
This cooler must be plugged into a GFCI protected
receptacle, which has been properly installed in accordance
with all local and national codes. If you are not sure that the
receptacle is GFCI protected, consult with a qualified
electrician.
This cooler is equipped with a power cord having an
equipment grounding conductor and grounding plug. Do not
attempt to defeat this safety device by removing the
grounding pin.
Use of an extension cord is not recommended.
Do not operate if plug or cord is damaged in any way. If the
unit is damaged or malfunctions, do not continue to operate it.
Always disconnect electrical power to unit before attempting
to work on or service your cooler.
Pump water tube has a restricting orifice to assure proper
water flow rate to the pad. Do not remove this restrictor!
M I
ANUFACTURING, NC.
Congratulations: You have purchased a product of superior performance and design,
which will give the best service when properly installed, operated and maintained.
This guide will provide you with information needed to mount, operate, inspect, maintain,
and troubleshoot your window evaporative air cooler.
The first section, Installation and Start-Up, gives details for installation. The second
section, Maintenance, contains operational and maintenance instructions, while
Troubleshooting includes information on commonly encountered problems.
INSTALLER: Please deliver this guide to owner.
WARNING -
TO REDUCE THE RISK OF FIRE, ELECTRIC
SHOCK, OR INJURY TO PERSONS, OBSERVE THE FOLLOWING.
Remove the plug from the electrical receptacle by pulling on
the plug and not the cord.
Do not operate this blower (fan) motor with any solid-state
speed control device.
Do not operate this unit with pad frame or air outlet grille
removed, this may cause the fan motor to overload and
damage the motor.
NOTE:
Do not locate unit near exhaust or vent pipes as odors or fumes
may be drawn into cooler.
Use of anode devices, chemical additives or treatments in this
cooler will void the warranty.
Your warranty does not cover shipping damage. Report all
shipping damage at once to dealer or carrier making the delivery.
For future reference, record the model and serial numbers, date
and place of purchase of your evaporative cooler here:
Model #
Serial #
Date of Purchase:
Place of Purchase:
1-999-2461 Date: 10/13
