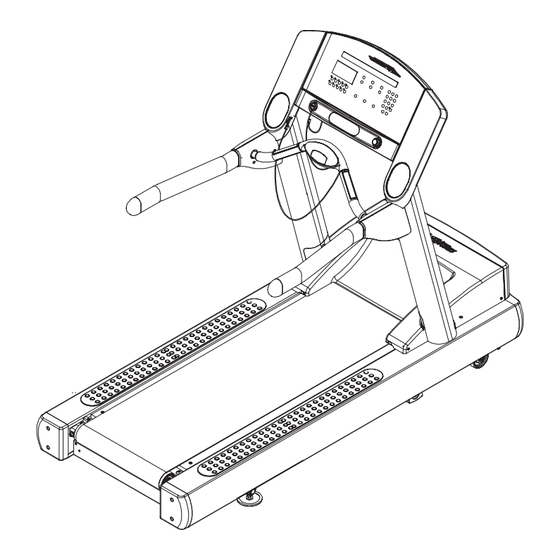

- Page 1 CLUB SERIES TREADMILL CST-0XXX-01 Customer Support Services PARTS MANUAL rev 14 Nov 2007...
-
Page 2: Table Of Contents
Club Series Treadmill CST-0XXX-01 Contents S/N CST100000 Miscellaneous ...3 Frame Assembly ...4 Console Assembly ...5 Handrail Assembly...6 Covers, End Caps, and Hardware ...7 Belt, Deck, and Rear Roller...8 Lift Motor and Frame - Domestic ...9 Lift Motor and Frame – International ... 10 Idler Assembly ... -
Page 3: Miscellaneous
Hardware Bag Touch-Up Paint Color Container Arctic Silver Spray Can Arctic Silver .5 oz Bottle Arctic Silver .33 oz Pen Shadow Gray .6 oz Bottle Shadow Gray .6 oz. Pen Miscellaneous Part Number M051-00K58-A253 M051-00K60-A094 M051-00K60-A093 AK60-00173-0000 CST-0XXX-01 S/N CST100000... -
Page 4: Frame Assembly
Club Series Treadmill Frame Assembly Static Brush 0K58-01263-0001 Screw 0017-00101-1193 Drive Belt 0K58-01114-0000 Anti-Scuff Pad 0K58-01376-0000 (2) Grommet 0017-00042-0326 CST-0XXX-01 S/N CST100000... -
Page 5: Console Assembly
Switch Membrane 118E-00001-0129 Polar PCB Cable Assy AK39-00064-0000 Front Console Case 0K58-01273-0001 Stop Switch 0K58-01321-0000 Micro-Switch 0017-00032-0185 Console Overlay/Bezel/ Assembly Switch Assembly GK58-00002-0125 GK58-00002-0125 CST-0XXX-01 S/N CST100000 Console Screw (8) 0017-00101-1288 Console Accessory Cover 0K58-01280-0000 Polar/E-Stop Cable Assy AK58-00237-0000 Overlay 0K58-01488-0001... -
Page 6: Handrail Assembly
Handrail Boot 0K58-01304-0002 Handrail Boot Screws (6) 0017-00101-1770 Handrail Tube Cap (2) 0K58-01396-0000 Upright Plug (2) 0K58-01305-0002 CST-0XXX-01 S/N CST100000 Console/Cup Holder Cup Cover Assy - User RT Mounting Screw (8) AK58-00247-0001 0017-00101-1780 Handrail Hex Nut (4) 0017-00103-0327 Top RT Handrail Boot... -
Page 7: Covers, End Caps, And Hardware
Motor Cover AK60-00226-0000 Ink transfer decal cannot be replaced in the field (it can only be touched up). Front End Cap (2) 0K58-01267-0000 End Cap Screws (4) 0017-00101-1772 Bug Medallion Assembly AK58-00245-0000 CST-0XXX-01 S/N CST100000 Rear End cap (2) 0K58-01268-0000... -
Page 8: Belt, Deck, And Rear Roller
0017-00104-0334 Belt Limit Label, LT M051-00K58-A101 Grommet (2) 0017-00042-0326 Rear Roller 0K58-01002-0000 Rear Roller Guard, RT AK58-00360-0001 Roller Guard Screw (4) 0017-00101-1776 CST-0XXX-01 S/N CST100000 High Voltage Caution Label M051-00K60-A063 Belt Limit Label, RT M051-00K58-A100 Frame Decal LF LOGO 0K60-01193-0000... -
Page 9: Lift Motor And Frame - Domestic
Club Series Treadmill CST-0XXX-01 Lift Motor and Frame - Domestic S/N CST100000... -
Page 10: Lift Motor And Frame International
0017-00101-1723 Line-Cord Socket Brkt * 0017-01419-0000 Clevis Pin 0017-00007-0214 Lower Receptacle Brkt 0K58-01420-0000 Lift Motor Hex Bolt 0017-00101-1021 Lock Nut (2) 0017-00103-0285 CST-0XXX-01 S/N CST100000 MFG; RECESS B AK58-00514-0000 Lift Motor 0K58-01062-0000 Cotter Pin 0017-00007-0208 Lock Nut 0017-00103-0025 Vinyl Cap... -
Page 11: Idler Assembly
Motor Pulley 0K58-01057-0001 Allen Screw 0017-00101-0333 Wire Clamp Limit Switch 0017-00042-1072 0017-00032-0195 Screw Limit Switch Cable 0017-00101-1193 AK58-00027-0000 CST-0XXX-01 S/N CST100000 Idler Pin 0017-00007-0248 Plug 0017-00042-1053 (For units not equipped with circuit breaker.) Idler Spring Damper 0K26-02055-0000 Idler Spring 0k58-01085-0000... -
Page 12: Motor Controller Assembly
Club Series Treadmill DSP Motor Controller Assembly DSP Motor Controller Assembly 100-120V AK65-00071-0000 200-240V AK65-00071-0002 note: keep the jumper (part no. AK58-00522-0000) that is on P9--the DSP motor controller is not supplied with it. CST-0XXX-01 S/N CST100000 Phillips Pan Screws (3) 0017-00101-1781... -
Page 13: Drive Motor Assembly
Insulating Pad (2) 0K58-01256-0001 Key is part of Drive Motor only, can not get it separate. FLYWHEEL: CAST- IRON; W/TAPER C 0K58-01092-0004 CST-0XXX-01 S/N CST100000 “TAPER DRIVE MOTOR” DRIVE-MOTOR w/Caution Label AK58-00171-0002 3/8 -16X48 HEX SOC L CS ST SS B 0017-00101-1885... -
Page 14: Leveler Assembly
Club Series Treadmill Leveler Assembly Leveler Assembly AK58-00370-0000 Flat Washer (4) 0017-00104-0190 Lock Washer (4) 0017-00104-0333 Hex Nut (4) 0017-00101-1627 Bracket Leveler 0K58-01083-0000 Pivot Pin 0K58-01098-0000 Stop Nut 0K58-01099-0000 Leveling Foot 0K58-01110-0000 CST-0XXX-01 S/N CST100000... -
Page 15: Front Roller Assembly
Club Series Treadmill Front Roller Assembly Front Roller Assembly AK58-00066-0000 Polley V Pulley 8” 0K58-1105-0000 Lock Washer 0017-00104-0005 Hex Bolt 0017-00101-1632 Mounting Bolt 0017-00101-0974 Flat Washer 0017-00104-0043 Lock Washer 0017-00104-00063 Flat Washer 0017-00104-0330 CST-0XXX-01 S/N CST100000 Front Roller 3.5" 0K58-01001-0001... -
Page 16: Ergo Bar W/Lifepulse
Activity Zone Overlay 0K58-01490-0001 Activity Zone Module Assembly w/o Activity Zone Overlay AK58-00554-0000 Activity Zone Flat Washers (2) Mounting Screws (2) 0017-00104-0411 0017-00101-0824 Phillips Pan Screws (4) 0017-00101-1277 Heart Rate Electrode Kit GK20-00002-0005 Ergo Bar Gasket (2) 0K58-01347-0000 CST-0XXX-01 S/N CST100000... -
Page 17: Line Cords And Cables
Club Series Treadmill; ENG/ENG 120/60 DOM CST-0101-01 Club Series Treadmill; ENG + MET 230/50 CON CST-0102-01 Club Series Treadmill; ENG+ MET; 240/50 UK CST-0104-01 Club Series Treadmill; ENG + MET; 240 + AUS Cable PN Description AK26-00346-0002 CBL-ASSY: JMPR;OUTLET/SW/BLK AK26-00347-0002 CBL-ASSY: JMPR;OUTLET/SW/WHT...
