IMPORTANT:
THESE INSTRUCTIONS ARE TO
REMAIN WITH THE HOMEOWNER.
PLEASE SAVE THESE INSTRUCTIONS.

SAFETY NOTICE

If this fi replace is not properly installed, a
house fi re may result. For your safety, follow
the installation instructions. Contact local
building or fi re officials about restrictions
and installation inspection requirements in
your area.
TESTED and LISTED to CAN/ULC
S610-M87 AND UL 127
Phase 2 Qualifi ed, U.S. Environmental
Protection Agency wood-burning fi replace
program.
©PACIFIC ENERGY FIREPLACE
301014-32
PRODUCTS LTD. - 2014

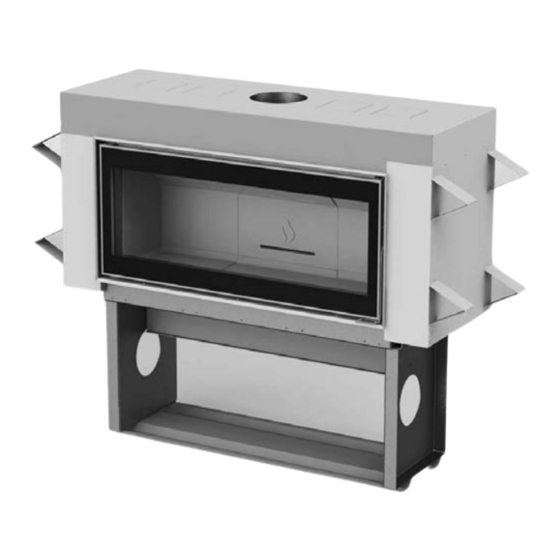

INSTALLATION
AND OPERATING
INSTRUCTIONS
MODEL: TCW120
ZERO CLEARANCE WOOD
FIREPLACE
T120.BODYA
SERIAL #
5055.120

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TCW120 and is the answer not in the manual?

Questions and answers

Related Manuals for Town & Country Fireplaces TCW120

Summary of Contents for Town & Country Fireplaces TCW120

  • Page 1: Safety Notice

    TESTED and LISTED to CAN/ULC S610-M87 AND UL 127 Phase 2 Qualifi ed, U.S. Environmental Protection Agency wood-burning fi replace program. MODEL: TCW120 ZERO CLEARANCE WOOD FIREPLACE ©PACIFIC ENERGY FIREPLACE 301014-32 T120.BODYA 5055.120...

  • Page 2: Table Of Contents

    Contents Safety .................... 3 Creosote Formation and Need for Removal .......... 3 Chimney Fires ..................3 Avoiding a Chimney Fire ................ 3 In the event of a Chimney Fire ............... 3 Operation ..................4 NOTE: Wood Selection..................4 How to Test Your Wood ................4 WE STRONGLY Lighting for the First Time ..............

  • Page 3: Safety

    Safety Avoiding a Chimney Fire There are two ways to avoid chimney fi res: Creosote Formation and Need for 1. Do not let creosote build up to a point where a chimney Removal fi re is possible. When wood is burned slowly, it produces tar and other 2.

  • Page 4: Operation

    WHEN OPENING DOOR TO RELOAD. should not be burnt. Operation Lighting for the First Time Curing of the Paint Finish/Insulation CAUTION: HOT WHILE IN OPERATION. KEEP To achieve the best fi nish, the paint on your fi replace CHILDREN, CLOTHING AND FURNITURE must be baked on.

  • Page 5: Controlling Your Fire

    INTERVALS TO MAINTAIN A COMFORTABLE HEAT paper waste or overloading the fi rebox with wood. OUTPUT. Proper Draft WARNING: No alteration or modifi cation of the combustion air assembly is permitted. Any tampering will void warranty and could be very hazardous. 1.

  • Page 6: Maintenance

    Maintenance WARNING: OVER FIRING THE APPLIANCE WILL SHORTEN THE LIFE OF THE PRODUCT. FAILURE TO RECTIFY AN OVER FIRING CONDITION CAN BE HAZARDOUS AND MAY VOID THE MANUFACTURER'S 1. Burn only, dry and well seasoned cord wood. The WARRANTY. denser or heavier the wood when dry, the greater its heat value.

  • Page 7: Maintenance Checks

    Maintenance Checks Check the following parts for damage such as cracks, excessive corrosion, burned out sections and excessive warping: (See website for descriptions and more detail) Weekly: - Aluker Panels- Visual, for cracking, placement. - Door Gasket - sagging, placement, damage. Monthly - Back side of airwash chamber.

  • Page 8: Aluker Panel Installation

    Aluker Panel Installation This package contains 11 Aluker Panels. 1) With the fi replace in the upright position, install panels in the order shown from 1 to 11. 2) When installing panel #9, #10 & 11, secure with the Aluker support brackets as shown in Fig.

  • Page 9: Aluker Panel Installation Sequence

    Aluker Panel Installation Sequence: Tuck the front edge of the panel in behind the top shield, lift Place panel 1 into the bottom of the unit, tuck under the the panel and swing into place against the fi rebox. Lower front lip fi rst then lay fl at and slide over to your left.
  • Page 10 Place panel 10 onto the upper ledge of the rear right panel Place panel 7 onto the back ledge of the bottom right panel and slide over to your left and under the secondary air and slide over to your right in behind the right side panel. bracket.

  • Page 11: Fireplace Installation

    Fireplace Installation Crate Removal 1) Carefully remove wood top and supports. 2) Remove the screws securing the fi replace to the pallet(4). 3) Remove from pallet bottom. Warning: Under no circumstances is this fi replace to be installed in a makeshift or "temporary" manner. It may be fi red only after the following installation conditions have been met.

  • Page 12: Procedure

    Procedure FIG. #3 Note: See "Combustion Air" section on page 19. MAINTAIN CLEARANCES TO COMBUSTIBLES AS SPECIFIED IN THE INSTALLATION INSTRUCTIONS CAUTION: THE STRUCTURAL INTEGRITY OF THE FLOOR, WALL AND CEILING/ROOF MUST BE MAINTAINED. THE FIREPLACE MUST BE CONNECTED TO A FACTORY-BUILT CHIMNEY CONFORMING TO CAN/ ULC-S629 OR UL 103HT STANDARDS FOR 650C FACTORY-BUILT CHIMNEYS.

  • Page 13: Minimum Framing Dimensions

    Minimum Framing Dimensions FIG. #5 NOTE: THE FRAMING CLEARANCES AROUND THE FIREPLACE MUST 24" INCLUDE THE INNER DRY- 610mm WALL/CONCRETE BOARD AS WELL. 72" 1.83m 81" 2.06m 32" 813mm 4" 102mm 81" " 2.06m 72" 1.15m 1.83m " 2.91m 88" 2.24m 72"...

  • Page 14: Minimum Clearances To Combustibles

    Minimum Clearances to Combustibles 36" FIG. #7 " 914mm 64mm 4" 32" 102mm 813mm 45" 1.14m " 337mm " 140mm 4" 102mm Fireplace Clearances and Dimensions Distance of combustible material from side, back standoffs and framing kit. Minimum distance of adjacent wall to side of fireplace door. 24”...

  • Page 15: Chimney Installation

    Chimney Installation Listed Chimney and Chimney Connector 7. Install the roof support then assemble fl ashing and storm collar and be sure to maintain the vapour barrier THE FIREPLACE MUST BE CONNECTED TO A at this point. (Seal securely.) FACTORY-BUILT CHIMNEY CONFORMING TO CAN/ ULC-S629 AND UL 103HT STANDARDS FOR 650C 8.
  • Page 16 FIG. #8 The chimney may incorporate Spark arrestor an offset. To do this safely, all rain cap sections of listed connector, offset elbows and chimney section must be screwed Chimney must extend a together by at least three minimum of 3' above roof. sheet metal screws per joint.

  • Page 17: Offsets

    Offsets The chimney for the T120 can be installed with a maximum FIG. #9 of four 45° elbows(in Canada) or four 30° elbows(in U.S.A.) as shown in Fig. #9. Installation: 1. Install the fi rst elbow; turn it in the required direction. It is required to secure connections with three (3) #8 x ½"...

  • Page 18: Combustion Air

    Combustion Air FIG. #10 Intake or combustion air can be supplied to the fi replace in one of two ways. Consult your local building code or CAN/CSA-B365, Installation Code for Solid-Fuel-Burning Appliances and Equipment before proceeding. 1. Outside air supply - Outside air may be brought in and connected to the six inch adapater underneath the unit.

  • Page 19: Ember Protector

    Ember Protector Safety Strip The fl oor between the fi replace and the hearth extension/ ember protection must be protected with a 2"(51mm) deep The stove may be installed on a combustible fl oor provided safety metal strip(not provided) equal to the width of the ember protection made from a non-combustible material unit.
  • Page 20 Facing Cement Board Installation The front facing area of the T120 must be fi nished with FIG. #15 steel stud framing and with non-combustible cement board as shown in Fig.#15 and #16 prior to applying any fi nishing material. The cement board can be attached to the framing and to the front of the unit.

  • Page 21: Remote Heat Duct Installation

    Remote Heat Duct Installation FIG. #17 12” min CONTENTS: FIG. #18 1 - REMOTE HEAT FLAP BOX 1 - JUNCTION BOX 1 - RHEOSTAT KIT 1 - OUTLET BLOWER ASSEMBLY Heat Duct 1 - HEAT DUCT ADAPTER Adapters 1 - 14"(356mm) X 6"(150mm) OUTLET GRILL 1 - 8"(203mm) X 8"(203mm) INLET GRILL 1 - 6"(150mm) ROUND TO 6"(150mm) SQUARE INLET BOOT...

  • Page 22: Electrical Wiring

    3. Locate the Remote Blower Assembly in the desired wall or ceiling location, maximum 20ft.(6m) away from the FIG. #19 unit, and secure to the framing. Fig. #19 BLOWER ASSEMBLY 4. The edge of the outlet grill must be a minimum 12” from the fl oor, any adjacent wall and from the ceiling.

  • Page 23: Changing Door Confi Guration

    Changing Door Confi guration FIG. #21 The door on the T120 comes factory set to open to the left but may be changed if desired. To change the door opening direction follow these instructions: NOTE: The door on the T120 is heavy and should be installed or removed by two people.
  • Page 24 FIG. #24 4. Attach the door catches"C" to the left side of the unit and the right non-adjustable bottom hinge "B" onto the bot- tom right side of the unit. (opposite hinge brackets can be found in the hardware pack.) HINGE "A"...

  • Page 25: Troubleshooting

    Appendix A Troubleshooting Problem Cause Cure Glass is Dirty 1. Wood is wet - Use dry wood 2. Draft too low - Chimney plugged or restricted, inspect and clean - Provide outside air for combustion - Improper chimney height and / or diameter 3.

  • Page 26: Understanding & Operating Your Town & Country Fireplace

    Understanding & Operating Your Town & Country Fireplace The Town & Country line of fi replaces is a culmination of years of research and development. Designed to be efficient, clean-burning and user-friendly, this fi replace will give you years of service. However, a knowledgeable operator is still the most important factor for maximum performance and part of this is understanding the basic functions of this design.

  • Page 27: Replacement Parts

    Replacement Parts ITEM DESCRIPTION PART NO. 1.... Aluker panels (set) ......T120.ALUKER 2.... Airwash defl ector Assembly....TWRP.7915 3.... Ash Guard Assembly......TWRP.7916 4.... Lintel Assembly ........TWRP.7917 5.... Door Gasket ........TWRP.DGKIT 6.... Replacement Glass ....TWRP.5034MC120 7.... Door Assembly ......TWRP.5036MC120 8....
  • Page 28 T120.BODYA 301014-32...
  • Page 29 T120.BODYA 301014-32...
  • Page 30 T120.BODYA 301014-32...

  • Page 31: Label Location

    Label Location FOYER PRÉFABRIQUÉ HOMOLOGUÉ / CERTIFIÉ POUR UTILISATION AU CANADA ET AUX É.-U.TESTÉ SELON ULC S610-M87 ET UL 127-2011. ETL#4001507 TCW120 SERIES/SÉRIE: MODEL/ MODÈLE: The rating label is located beneath the • INSTALL AND USE IN ACCORDANCE WITH THE INSTALLATION AND OPERATING INSTRUCTIONS SUPPLIED WITH THE fi rebox on the casing fl oor and can be APPLIANCE.
