Life Fitness Cross-Trainer Classic Parts Manual

Life Fitness Cross-Trainer Classic Parts Manual

Classic cross-trainer
Hide thumbs
Table of Contents

Advertisement

Quick Links

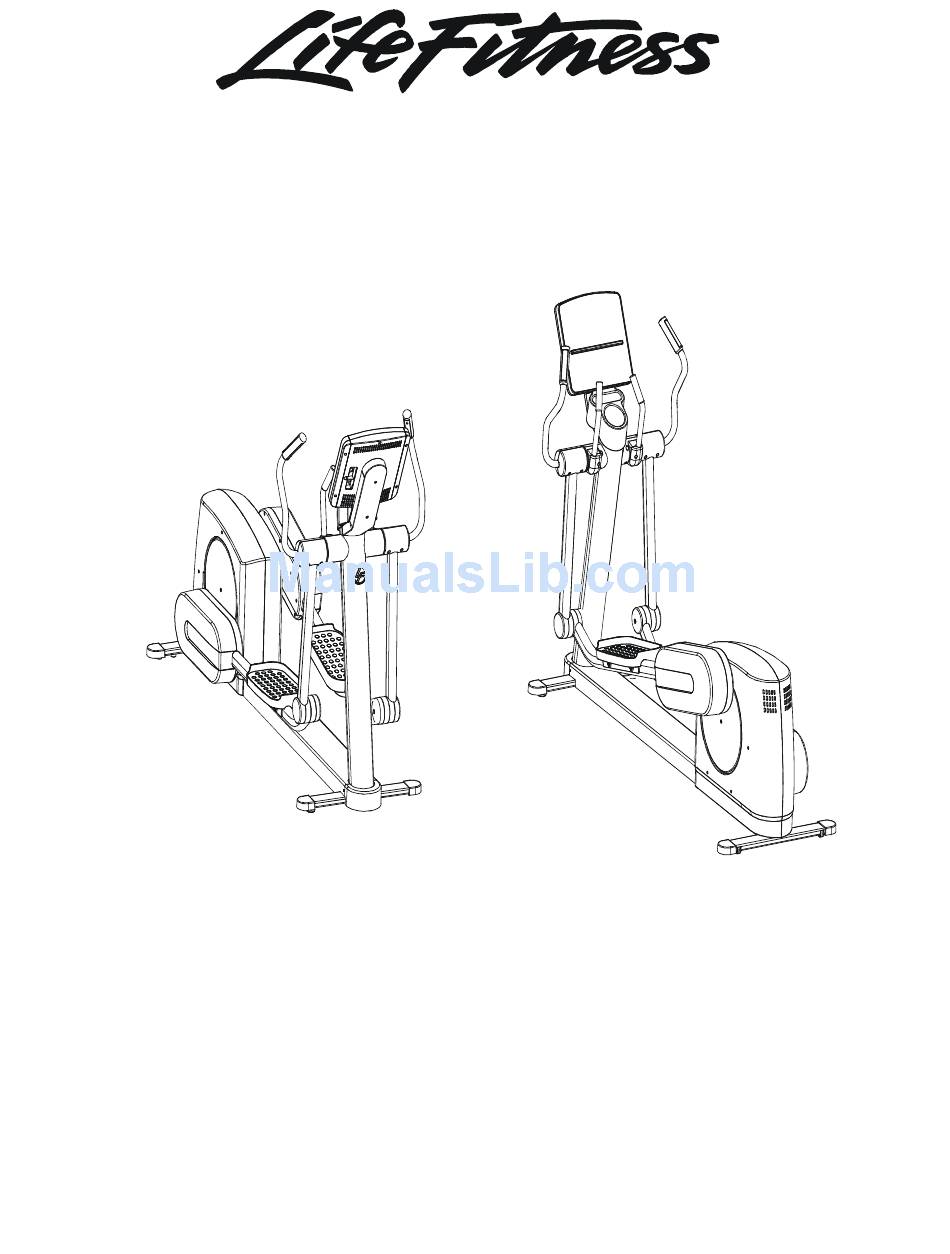

Classic Cross-trainer CLSXH-0XXX-01
(international only)
Customer Support Services
PARTS MANUAL
rev 09 Apr 2008

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Cross-Trainer Classic and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Life Fitness Cross-Trainer Classic

Summary of Contents for Life Fitness Cross-Trainer Classic

  • Page 1 Classic Cross-trainer CLSXH-0XXX-01 (international only) Customer Support Services PARTS MANUAL rev 09 Apr 2008...

  • Page 2: Table Of Contents

    CLASSIC CROSS-TRAINER CLSXH-0XXX-01 Contents S/N CLSXH_ _ _ _ _ _ _ _ _ Console Support and Deadshaft Covers ... 4 Handlebars and Bullhorns ... 5 Console and Related Components ... 6 Upper Frame Hardware ... 7 Rocker Arms and Pedal Levers ... 8 Crank Cover and Lower Caps ...

  • Page 3: Hardware Bag

    CLASSIC CROSS-TRAINER Miscellaneous OPERATION MANUAL (CD) SERVICE MANUAL TOUCH UP PAINT: SPRAY CAN .5 OZ BOTTLE W/APPLICATOR .33 OZ PEN HARDWARE BAG ACCESS PANEL ASSEMBLY CONSISTS OF: 120” COAX CABLE 120” POWER EXTENSION CABLE BRACKET F-TYPE PANEL CONNECTOR #8 PLASTIC GROMMET PLUG IN OPTION 120/60 PLUG IN OPTION 240/50 UK PLUG IN OPTION 240v AUS...

  • Page 4: Console Support And Deadshaft Covers

    CLASSIC CROSS-TRAINER Console Support and Dead Shaft Covers Console Support MAK62-00123-0000 Console Support Cap 0K62-01030-0000 Console Support Shroud 0K62-01023-0000 Right Inside Deadshaft Cover 0K62-01010-0000 Left Inside Deadshaft Cover 0K62-01011-0000 2-Front Inside Deadshaft Cover 0K62-01009-0000 S/N CLSXH_ _ _ _ _ _ _ _ _ Right Bullhorn Cover 0K62-01007-0001...

  • Page 5: Handlebars And Bullhorns

    CLASSIC CROSS-TRAINER Handlebars and Bullhorns Right Handlebar AK62-00086-0000 Medallion Bug AK58-00245-0000 Bug Adaptor 0K62-01034-0001 S/N CLSXH_ _ _ _ _ _ _ _ _ Right Bullhorn Assembly AK62-00360-0000 Left Bullhorn Assembly AK62-00361-0000 HR Sensor Kit GK20-00002-0005 HR Cable AK47-00029-0000 ( one per bullhorn) Bullhorn Gasket 0K62-01199-0001 HR Sensor Kit...

  • Page 6: Console And Related Components

    CLASIC CROSS-TRAINER Console and Related Components Console Case with decal AK62-00142-0000 Programmed PCB A084-92219-A032 Lower Display Cable AK63-00038-0000 Polar Cable AK39-00063-0000 Overlay/Bezel/Switch (see chart below) Language Eng + Met Ger/Met Spn/Met Jap/Met Frn/Met Ital/Met Dut/Met Port/Met Turk/Met Console Case Screws 0017-00101-1242 Polar PCB with receiver...

  • Page 7: Upper Frame Hardware

    CLASSIC CROSS-TRAINER Upper Frame Hardware Console Mounting Screws (4) 0017-00101-1796 Console Support Mounting Screws (6) 0017-00101-1791 Console Support Shroud Mounting Screws 0017-00101-1796 Inside Deadshaft Cover Screws (2 per side) 0017-00101-1796 S/N CLSXH_ _ _ _ _ _ _ _ _ Handlebar Mounting Screws 0017-00101-1791...

  • Page 8: Rocker Arms And Pedal Levers

    CLASSIC CROSS-TRAINER Rocker Arms and Pedal Levers LF Bug Medallion Assy. AK58-00245-0000 Rocker Arms AK62-00062-0001 Shaft Collar w/screws M0K61-01259-0000 Washer 0017-00104-0418 Retaining Ring 0017-00100-0178 Right Pedal Lever Assembly AK62-00236-0000 Left Pedal Lever Assembly AK62-00235-0000 CLSXH-0XXX-01 S/N CLSXH_ _ _ _ _ _ _ _ _...

  • Page 9: Crank Cover And Lower Caps

    CLASSIC CROSS-TRAINER Crank Cover and Lower Caps Front frame Cap 0K62-01004-0000 Mounting Screws (Located on front sides of Ladder Frame Cover) 2- 0017-00101-1795 S/N CLSXH_ _ _ _ _ _ _ _ _ Stabilizer Caps 4 - 0K68-01129-0000 CLSXH-0XXX-01 Crank Cover 0K61-03100-0002 2 - Mounting screws 0017-00101-1837...

  • Page 10: Lower Frame Shrouds And Hardware

    CLASSIC CROSS-TRAINER Lower Frame Shrouds and Hardware Rocker Cover Kit (includes clip & screw) GK62-00002-0066 Mounting screw 0017-00101-1796 Right Inside Rocker Cover 0K62-01037-0000 Right Inside Lever Joint Cover 0K62-01039-0000 Outside Pedal Joint Cover 0K62-01035-0000 Mounting screw 0017-00101-1836 Leg Levelers AK62-00124-0000 Rocker Cover Kit (includes clip &...

  • Page 11: Pedal Lever Assembly Components

    CLASSIC CROSS-TRAINER Pedal Lever Assembly Components Left Pedal 0K62-01005-0000 Right Pedal 0K62-01006-0000 Pedal Mounting Hardware 4 - Screw - 0017-00101-1805 4 - Washer-0017-00104-0469 Pedal/Rocker Shaft & Bearings Order Kit GK62-00002-0001 E-Ring 0017-00100-0107 Thrust Washer 0K47-01105-0000 Brass Washer 0K47-01104-0000 Tie Rod Extension Assembly AK62-00234-0000 Link Hardware Kit...

  • Page 12: Pcb, Battery, Reed Switch, And Bracket

    CLASSIC CROSS-TRAINER PCB, Battery, Reed Switch, and Bracket Power Control Board B084-92218-D002 PCB Mounting screws 0017-00101-1838 Battery Mounting screws 0017-00101-1797 PCB, Reed Switch Battery Bracket 0K62-01233-0000 6V Battery 0017-00003-0685 CLSXH-0XXX-01 S/N CLSXH_ _ _ _ _ _ _ _ _ Grommet (4) 0017-00042-0821 Reed Switch...

  • Page 13: Bearing Insert Assembly

    CLASSIC CROSS-TRAINER Bearing-Insert Assembly Bearing Insert Assembly AK62-00299-0000 Service Kit GK62-00002-0044 kit contents: Crankshaft (1) Bearings (2) Bearing Flanges (2 sets) Nuts (4) Washers (4) Service Kit GK62-000002-0045 kit contents: Intermediate Shaft (1) Bearings (2) Bearing Flanges (2 sets) Nuts (4) Washers (4) S/N CLSXH_ _ _ _ _ _ _ _ _ Bearing Flanges (2)

  • Page 14: Crank Arm Pulley Assembly

    CLASSIC CROSS-TRAINER Crank Arm Pulley Assembly Retaining Ring 0017-00100-0107 Crank arm mounting bolt 0017-00101-1860 nut - 0017-00103-0334 Magnet Mounting screw 0017-00101-1835 washer 0017-00104-0144 Crank arm weld Assembly MAK62-00205-0000 Magnet-Standoff Assembly AK62-00186-0000 CLSXH-0XXX-04 S/N CLSXH_ _ _ _ _ _ _ _ _ Poly-V Crank Pulley 0K61-02409-0000 Crankshaft Plate...

  • Page 15: Drive Module

    CLASSIC CROSS-TRAINER Drive Module Crank Arm-Pulley Assembly See Page 14 for breakdown Crankshaft M0K62-01222-0001 J10 Flexonic Belt 0K62-01135-0000 Intermediate Shaft M0K62-01223-0000 Resistor Assembly Includes Power Control Cable AK62-00260-0000 S/N CLSXH_ _ _ _ _ _ _ _ _ Alternator-Flywheel Assembly AK61-00250-0001 Mando Alternator Brushes 0017-00009-0895...

  • Page 16: Drive Module Hardware

    CLASSIC CROSS-TRAINER Drive Module Hardware Square Machine Key (2) M0K53-01122-0000 Alernator-flywheel mounting bolt and nut bolt-0017-00101-1867 nut-0017-00103-0332 S/N CLSXH_ _ _ _ _ _ _ _ _ Alternator-Flywheel Assembly Mounting bolt 0017-00101-0986 Crank Arm Mounting bolt 0017-00101-1860 0017-00103-0334 Machine Key 0K53-01183-0000 Bearing-Insert mounting screw...

  • Page 17: Cables

    CLASSIC CROSS-TRAINER Cables Power Control Cable AK62-00092-0000 ORANGE POWER RES. 12POS.MNL 2 x .75 OHM RED/BLK 240W RED/BLK RED/BLK AC TAP Valt GREEN GREEN GREEN FIELD FIELD BLK/WHT YELLOW User Arm HR Cables AK61-00051-0001 4POS. MINI FIT JR. WHITE RT SIGNAL BLACK BLACK WHITE...
