Summary of Contents for Life Fitness 93X-0XXX-04

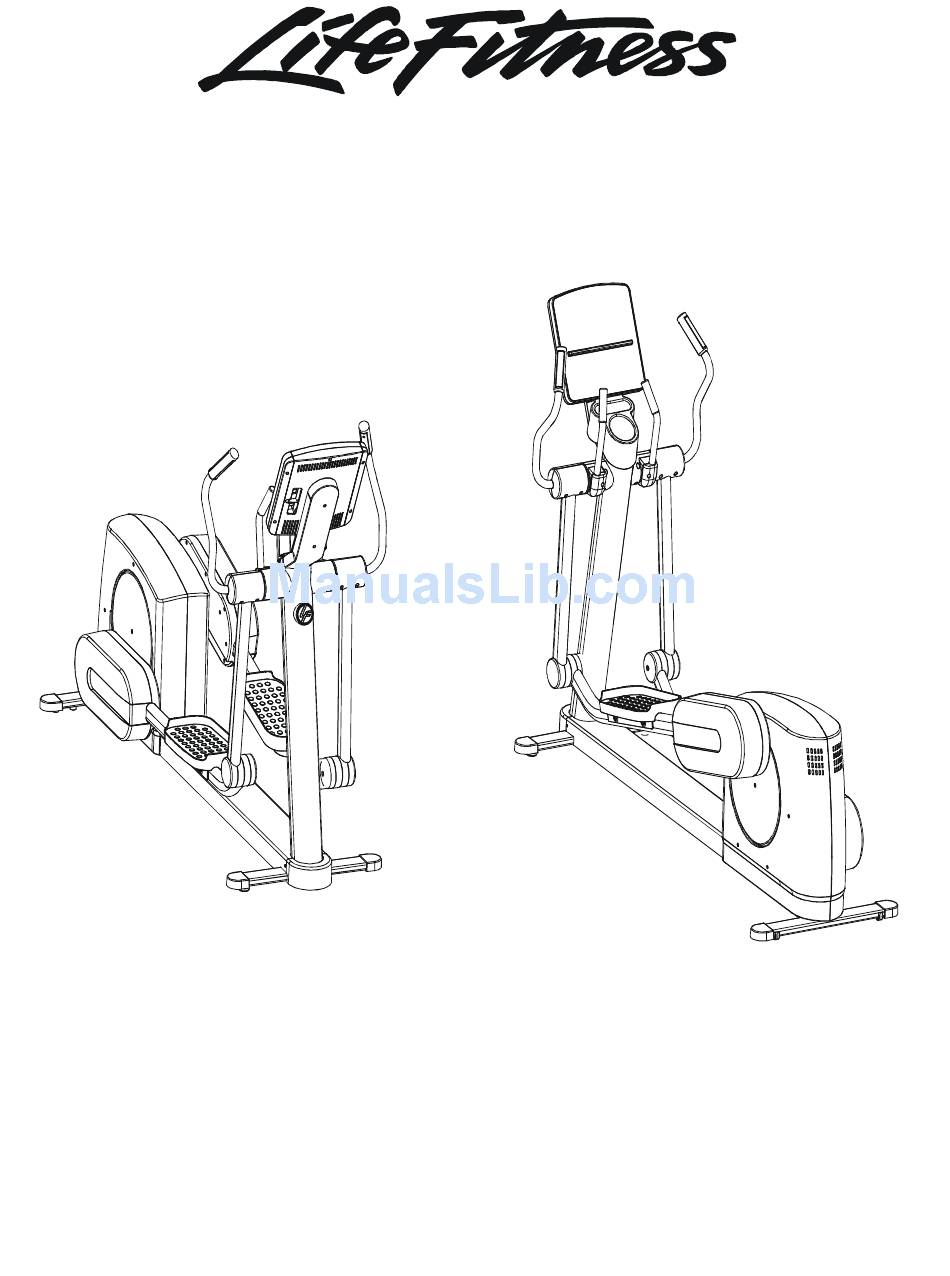

- Page 1 ARCTIC SILVER QUIET DRIVE CROSS TRAINER 93X-0XXX-04 Customer Support Services PARTS MANUAL rev 30 Jul 2008...
- Page 2 PLUG IN OPTION 240/50 UK PLUG IN OPTION 240v AUS PLUG IN OPTION 230/50 CONT. C-SAFE KIT M051-00K62-A181 M051-00K62-A182 M051-00K62-A183 M051-00K62-A184 M051-00K62-A149 0017-00008-0204 0017-00008-0205 0017-00008-0206 AK62-00152-0001 AK62-00210-0000 AK32-00020-0002 AK32-00078-0001 0K62-01179-0001 0017-00021-2846 0017-00042-0754 GK62-00002-0018 GK62-00002-0019 GK62-00002-0020 GK62-00002-0021 GK63-00002-0003 93X-0XXX-04 S/N XWF100000...
-
Page 3: Table Of Contents
ARCTIC SILVER QUIET DRIVE 93X 93X-0XXX-04 CONTENTS S/N XWF100000 Page CONSOLE SUPPORT & DEADSHAFT COVERS ...4 HANDLEBARS AND BULLHORNS ...5 CONSOLE AND RELATED COMPONENTS...6 UPPER FRAME HARDWARE ...7 ROCKER ARMS AND PEDAL LEVERS ...8 CRANK COVER AND LOWER CAPS ...9 LOWER FRAME SHROUDS AND HARDWARE...10... -
Page 4: Console Support & Deadshaft Covers
Shroud 0K62-01023-0000 Right Inside Deadshaft Cover 0K62-01010-0000 Left Inside Deadshaft Cover 0K62-01011-0000 2-Front Inside Deadshaft Cover 0K62-01009-0000 Right Bullhorn Cover 0K62-01007-0001 Left Bullhorn Cover 0K62-01008-0001 Outside Front Deadshaft Cover (2) 0K62-01013-0000 Outside Rear Deadshaft Cover (2) 0K62-01012-0000 93X-0XXX-04 S/N XWF100000... -
Page 5: Handlebars And Bullhorns
ARCTIC SILVER QUIET DRIVE 93X Handlebars and Bullhorns Right Handlebar AK62-00090-0000 Medallion Bug AK58-00245-0000 Bug Adaptor 0K62-01034-0001 Right Bullhorn Assembly AK62-00360-0000 Left Bullhorn Assembly AK62-00361-0000 Bullhorn Inserts 0017-00009-1191 Electrode Kit GK20-00002-0005 Lifepulse Cable (1 per bullhorn) AK47-00029-0000 Left Handlebar AK62-00091-0000 93X-0XXX-04 S/N XWF100000... -
Page 6: Console And Related Components
Polar PCB with Receiver AK39-00064-0000 Overlay/Bezel/Switch (see chart below) OVERLAY/BEZEL/SWITCH AK62-00190-0001 AK62-00190-0001 AK62-00190-0003 AK62-00190-0004 AK62-00190-0006 AK62-00190-0007 AK62-00190-0008 AK62-00190-0009 AK62-00190-0010 AK62-00190-0001 93X-0XXX-04 S/N XWF100000 Battery Door 0K62-01026-0000 Console Case with decal AK62-00142-0000 LANGUAGE Eng/Eng Eng+Met Ger/Met Spn/Met Jap/Met Frn/Met Ital/Met Dut/Met... -
Page 7: Upper Frame Hardware
(2 per side) Items Not Shown Accessory Tray 0K62-01022-0000 Accessory Tray 0017-00101-1846 Mounting Screws (2) Bullhorn Screw Kit (kit includes 4 screws) GK62-00002-0042 93X-0XXX-04 S/N XWF100000 Handlebar Mounting Screws M0017-00101-1791 (3 per side) Bullhorn Cover Screws 0017-00101-1854 Outside Deadshaft Cover Screws... -
Page 8: Rocker Arms And Pedal Levers
Rocker Arms & Pedal Levers contents: Rocker Arms (2) Hardened Spacers (2) Oilite Washers (2) Retaining Rings (2) Loctite 620 Alcohol pad Rocker Arms AK62-00002-0070 Shaft Collar w/Screws 0K61-01259-0000 Right Pedal Lever Assembly AK62-00236-0000 93X-0XXX-04 S/N XWF100000 Left Pedal Lever Assembly AK62-00235-0000... -
Page 9: Crank Cover And Lower Caps
ARCTIC SILVER QUIET DRIVE 93X Crank Cover and Lower Caps Front frame Cap 0K62-01004-0000 Mounting Screws (Located on front sides of Ladder Frame Cover) 2- 0017-00101-1795 Stabilizer Caps 4 - 0K62-01003-0000 93X-0XXX-04 S/N XWF100000 Crank Cover 0K61-03100-0002 2 - Mounting screws 0017-00101-1837... -
Page 10: Lower Frame Shrouds And Hardware
0017-00101-1796 Ladder Frame Cover w/decal AK62-00106-0001 Mounting Screws (4) 0017-00101-1795 Shroud Panel 0K62-01002-0003 Mounting Screws (2 per side) 0017-00101-1795 93X-0XXX-04 S/N XWF100000 Rear Shroud Assy. AK62-00223-0000 Mounting Screws (2 per side) 0017-00101-1796 Wheel/Bracket Assy. AK62-00102-0000 Mounting Screws (3 per assy.) -
Page 11: Pedal Lever Assembly Components
0017-00101-1796 AK62-00384-0000 Hex nut 0017-00103-0333 Roller w/bearing AK62-00196-0001 Shaft Collar 0K62-01065-0000 Washer 0017-00104-0474 Brass Washer 0K47-01104-0000 Anti-Lift Roller 0K62-01191-0000 93X-0XXX-04 S/N XWF100000 Washer 0017-00104-0479 0017-00103-0333 Crank Extension Mounting Bolt 0017-00101-1907 Roller Extrusion AK62-00197-0000 Screws (4) 0017-00101-1789 Anti-Lift Track 0K62-01208-0000 Screws (2) -
Page 12: Pcb, Battery, Reed Switch & Bracket
PCB, Battery, Reed Switch & Bracket Power Control Board B084-92218-D002 PCB Mounting screws 0017-00101-1838 Battery Mounting screws 0017-00101-1797 PCB, Reed Switch Battery Bracket 0K62-01233-0000 6V Battery 0017-00003-0685 93X-0XXX-04 S/N XWF100000 Grommet (4) 0017-00042-0821 Reed Switch 118E-00001-0140 Reed Switch Mounting screws (2) 0017-00101-1794... -
Page 13: Bearing-Insert Assembly
2- bearings 2- sets of bearing flanges 4- nuts and washers Service Kit- GK62-00002-0045 Includes: 1 - intermediate shaft 2 - bearings 2- sets of bearing flanges 4- nuts and washers Bearing Flanges (2) 0K62-01220-0000 1” Bearing 0K62-01221-0000 93X-0XXX-04 S/N XWF100000... -
Page 14: Crank Arm Pulley Assembly
Retaining Ring 0017-00100-0107 Crank arm mounting bolt 0017-00101-1860 nut - 0017-00103-0334 Magnet Mounting screw 0017-00101-1835 washer 0017-00104-0144 Crank arm weld Assembly AK62-00205-0000 Magnet-Standoff Assembly AK62-00186-0000 93X-0XXX-04 S/N XWF100000 Poly-V Crank Pulley 0K61-02409-0000 Crankshaft Plate 0K61-02302-0001 Crankshaft Plate Mounting screws (4) 0017-00101-1834... -
Page 15: Drive Module
Control Cable AK62-00260-0000 S/N XWF100000 ALPHA CODE Alternator-Flywheel Assembly AK61-00250-0001 Mando Alternator Brushes 0017-00009-0895 Poly-V Metric Pulley 0K35-01186-0007 Pulley Set Screws 0017-00101-1833 Bearing-Insert Assembly (4) See Page 13 for breakdown 93X-0XXX-04 Right Crank Arm Weld Assembly AK62-00204-0000 J8 Flexonic Belt 0K62-01134-0000... -
Page 16: Drive Module Hardware
Alternator-Flywheel Assembly Mounting bolt 0017-00101-0986 Crank Arm Mounting bolt 0017-00101-1860 0017-00103-0334 Retaining ring 0017-00100-0107 Poly-V pulley mounting screw and washer 0017-00101-1836 Machine Key 0017-00104-0465 0K53-01183-0000 Bearing-Insert mounting screw and nut 0017-00101-1866 0017-00103-0341 93X-0XXX-04 S/N XWF100000... -
Page 17: Cables
Volt RPM_REED FIELD BLK/PURPLE 13POS.KK-156 Upper Console Board A084-92219-A031 START START 17POS. LOWER KEYPAD 19 POS. UPPER KEYPAD 93X-0XXX-04 S/N XWF100000 3 POS. MINI FIT N.C. N.C. Vbat MAGNET REED SWITCH Main Cable AK62-00093-0000 WHITE BLACK 3POS. MINI FIT JR.
