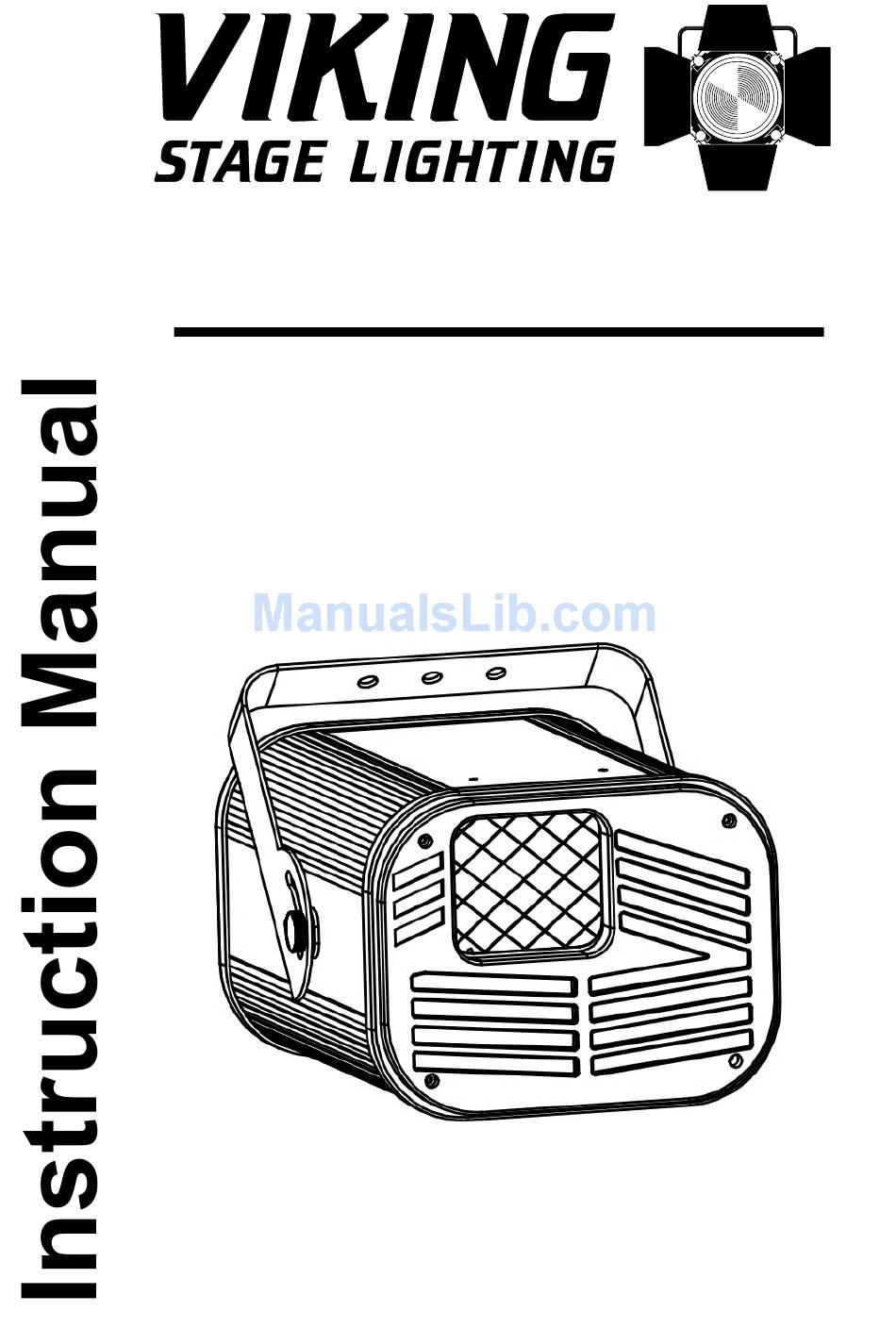

- Page 1 WARRIOR VK132-2R...
-
Page 2: Table Of Contents
Table of contents Description of Device......................4 · · Safety Instructions......................5 Preparation and Connections..................6 · • Safety information......................6 • Connections........................7 • Power Supply....................7 • DMX........................7 The Menu Field........................7 · · Operation Instruction......................8 DMX Channel Selection (DMX Protocol)..............10 ·... -
Page 3: Description Of Device
1. Description of Device 1. Arm 2. Body 3. Lens 1. DMX-Output (3 pin) 2. Power Out 3. Power In 4. LCD display 5. DMX-Input (3 pin) -
Page 4: Safety Instructions
2. Safety Instructions The l i g h t is a High-Tech Product. To guarantee a smooth operation, it is necessary to respect the following rules. The manufacturer of this device will not take responsibility for damages through any disregard of the information provided in this manual. -
Page 5: Preparation And Connections
Especially when working with high powered beam-lights; extreme caution and beam-lights observance of these safety instructions is mandatory. Should you have any questions about the operation of your fixture then please contact your local supplier , or Viking Lighting directly. -
Page 6: Connections
3.2. Connections • Power Supply ~100-240 Volt AC, 50-60 Hz, earth contact type plug - Powercon Connected load 350 VA (W) <=> T6.3A (micro-fuse 5x20mm) Please see printing on the case for the right electronic supply! Disconnect from the mains supply for changing the fuse and use only the above described micro-fuse type. -
Page 7: Operation Instruction
5. Operation Instruction A001 DMX Address A512 17Ch Channel Mode 21Ch Sound Show Mode Auto Master Slave Mode Slave Black Out ---------- Sound State Sound Sense 0--100 Pan Inverse Tilt Inverse Back Light... - Page 8 Lamp On/Off Auto Test ---°C Temp. -20--200°C Fixture Time 0--999 ---------- Firmware Version V1.01 Factory Defaults System Reset...
-
Page 9: Dmx Channel Selection (Dmx Protocol)
6. DMX Channel Selection (DMX Protocol) Standard-Mode 17 DMX channels Channel DMX Value Pan Movement 0-127 Pan Movement 128-255 Pan Shaking Movement Slow - Fast Tilt Movement 0-127 Tilt Movement Tilt 128-255 Tilt Shaking Movement Slow - Fast Colour Open Open &... - Page 10 Channel DMX Value Gobo Open 8-14 Gobo 1 Large Hole 15-22 Gobo 2 Small Hole 23-29 Gobo 3 2 Holes 30-37 Gobo 4 3 Holes in line 38-44 Gobo 5 4 Holes in Square 45-52 Gobo 6 Circle of Holes 53-59 Gobo 7 Multiple Holes 60-67...
- Page 11 Channel DMX Value 179-186 Pattern Macro 21 187-195 Pattern Macro 22 196-203 Pattern Macro 23 204-212 Pattern Macro 24 213-220 Pattern Macro 25 221-229 Pattern Macro 26 230-237 Pattern Macro 27 238-246 Pattern Macro 28 247-255 Pattern Macro 29 Pattern Rotation No Function - Stop Pattern Rotation 10-120...
- Page 12 Channel DMX Value Prism Rotation 0-127 Prism Indexing Prism Rotation 128-191 Prism Clockwise Rotation Fast - Slow 192-255 Prism Anticlockwise Rotation Slow - Fast 0-255 Dimmer Intensity 0 - 100% Dimmer Shutter No Function Shutter (Strobe) 8-255 Shutter (Strobe) Slow - Fast Functions 0-39 No Function...
- Page 13 Channel DMX Value Colour Open Open & Light Red Colour 1 - Light Red Light Red & Blue 10-11 Colour 2 - Blue 12-13 Blue & Green 14-15 Colour 3 - Green 16-18 Green & Yellow 19-20 Colour 4 - Yellow 21-22 Yellow &...
- Page 14 Channel DMX Value Gobo Open 8-14 Gobo 1 Large Hole 15-22 Gobo 2 Small Hole 23-29 Gobo 3 2 Holes 30-37 Gobo 4 3 Holes in line 38-44 Gobo 5 4 Holes in Square 45-52 Gobo 6 Circle of Holes 53-59 Gobo 7 Multiple Holes 60-67...
- Page 15 Channel DMX Value 179-186 Pattern Macro 21 187-195 Pattern Macro 22 196-203 Pattern Macro 23 204-212 Pattern Macro 24 213-220 Pattern Macro 25 221-229 Pattern Macro 26 230-237 Pattern Macro 27 238-246 Pattern Macro 28 247-255 Pattern Macro 29 Pattern Rotation No Function - Stop Pattern Rotation 10-120...
- Page 16 Channel DMX Value Prism Rotation 0-127 Prism Indexing Prism Rotation 128-191 Prism Clockwise Rotation Fast - Slow 192-255 Prism Anticlockwise Rotation Slow - Fast 0-255 Dimmer Intensity 0 - 100% Dimmer Shutter No Function Shutter (Strobe) 8-255 Shutter (Strobe) Slow - Fast Functions 0-39 No Function...
-
Page 17: Maintaining And Cleaning
7. Maintaining and Cleaning the Light There are NO user servicable internal parts, disassembly VOIDs the warrantee and should NOT be attempted. The light is a fixture of very low maintenance. It is only necessary to clean the air inlets and outlets as well as the optical lenses from time to time. For safe operation it is absolutely essential that the fixture is kept clean and that dust, dirt and smoke-fluid residues must not build up on, or within the fixture. -
Page 18: Technical Specifications
8. Technical Specifications FEATURES Multi Effect Luminaire, Beam, Scanner, Laser Simulator 3° Precision Beam 3 Facet Rotating Prism X / Y and Z High-Speed Mirror System SOURCE YODN 132W 2R Lamp 6,000 Hour Average Life PHOTOMETRIC DATA Measured with 3° Beam Full On 45,010 LUX 4,181 FC @16.4’... -
Page 19: Dimensions
INSTALLATION Rigging: Clamps (Not Included) Working Position: Any (360°) INCLUDED ITEMS (1) Adjustable Mounting Yoke (1) PowerCON Cable with 13a plugtop 9. Dimensions Viking Stage Lighting Unit C4 Rhombus Park, Diamond Road, Norwich, Norfolk, NR6 6NN Tel: (01603) 401982 www.vikinglighting.co.uk...
