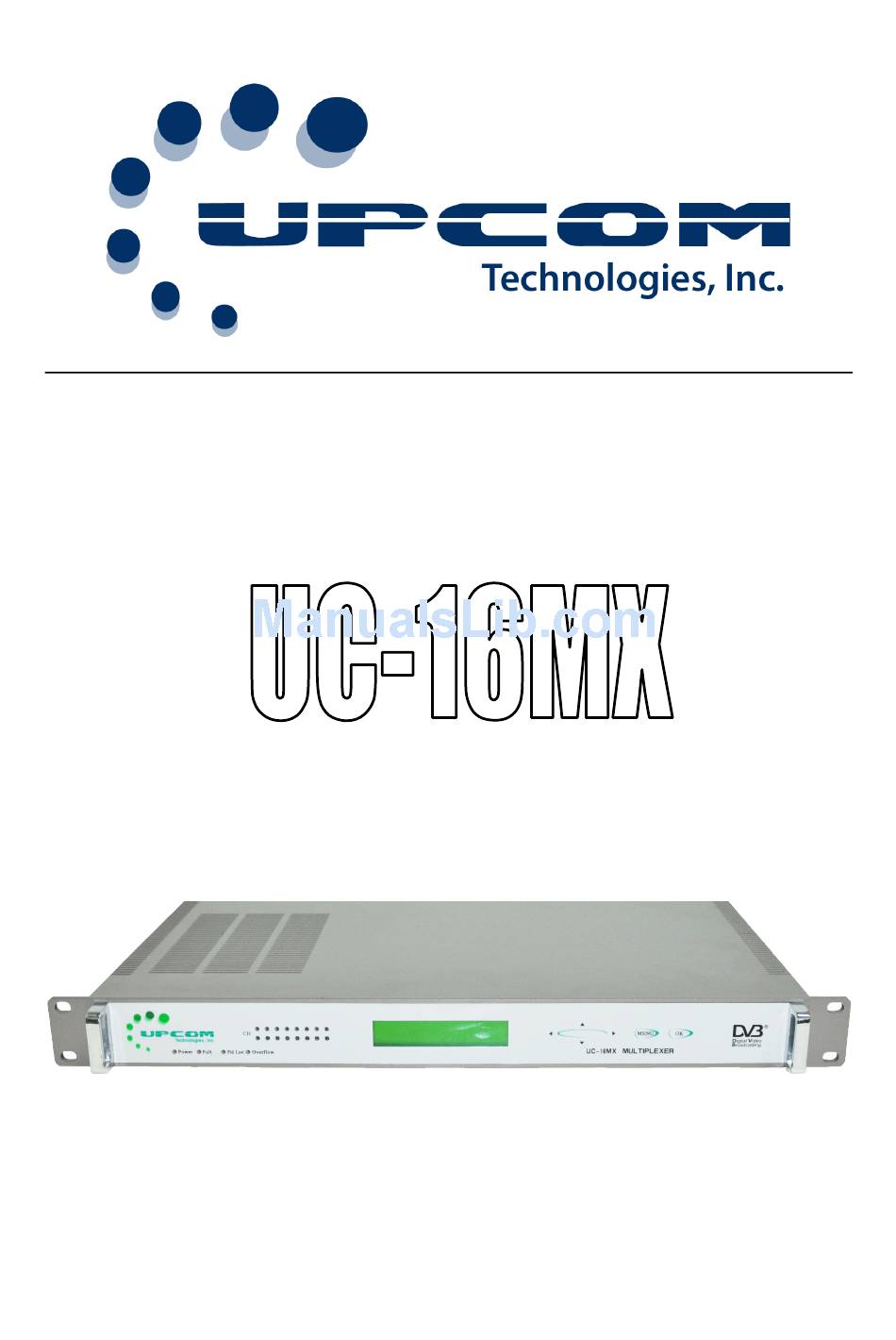

- Page 1 TRANSPORT STREAM MULTIPLEXER User Manual www.upcom.com...
- Page 2 UPCOM without written consent, and that right is granted to disclose or so use any information on said document.
- Page 3 Power consumption should not exceed 50W. The UC-16MX should not be operated where the unit is exposed to extremes of temperature outside the ambient range, ( 0ºC to +45ºC ), precipitation, condensation or humid atmospheres above 75%.
-
Page 4: Table Of Contents
CONTENT 1. B efore G etting S tarted......................1 2.Introduction ..........................2 2.1 W orking p rinciple..........................2 2.2 F unction..............................3 2.3 T echnique p arameter ........................3 2.4 ... -
Page 5: Before Getting Started
UC-16MX UC-16MX Transport Stream Multiplexer 1. Before Getting Started If you need help UPCOM and its distributors stand by every product sold. If you need help please contact your local distributor or UPCOM directly at: +1.408.329.4158 by e-mail: support@upcom.com Manual Updates From time to time, new versions of software may require slight changes to the material presented in this document. -
Page 6: Introduction
2.Introduction The UC-16MX is a DVB Standard Transport Stream Multiplexer supports real-time video stream multiplexing and re-multiplexing. The UC-16MX can handle 16 inport ASI SPTS or MPTS and send the out through 1 or two MPTS streams. It is compatible with the ISO/IEC-13818 standard with DVB ASI output interface. -
Page 7: Function
UC-16MX 2.2 Function Multiplexing to SPTS (single program transport streams) or multiplexing to MPTS (multi program transport streams), MPTS supports all-chosen or part-chosen. Supports two different outport. Low time delay. The delay for MPEG-2 Video program is less than 100ms. -
Page 8: Structure
UC-16MX 3 Structure 3.1 Front Panel & Dimensions Each equipment is designed for 1U 44mm space, machine dimensions of equipment is shown as figure3-1. Figure 3-1 - 4 -... -
Page 9: Rear Panel
UC-16MX 3.2 Rear Panel Figure3-2 Figure3-2 shows rear-panel map of equipment, port describe is shown: (1) ASI input channel from1 to 16 , input SPTS or MPTS with DVB standard, 75ΩBNC. (2) ASI output 1, multiplex output, 75ΩBNC. (3) ASI output 2, multiplex output, 75ΩBNC. -
Page 10: Operation
Program Initialization network information multiplexing address Change input Logon Reading Program Initialization information multiplexing port transport streams Change output Logon Reading Modify information parameters program parameters Status monitor Logon Reading information Table 4-1 UC-16MX basic operation flow - 6 -... -
Page 11: Menu Structure
UC-16MX 4.3 Menu Structure Figure 4-2 - 7 -... - Page 12 UC-16MX Main interface shows the multiplexer running state 01# p03 bitrat000.0 02# p04 bitrat000.0 01#, 02#: Outport number. • p03, p04:Output program number • Bitrat000.0: Outport real time output effective bitrate • For example 01# p03 bitrat015.0, means outport 1 have three programs and output...
-
Page 13: Setting The Network Address
UC-16MX 4.3.1 Setting the network address Modify the multiplexer IP settings to define IP address/subnet mask/gateway. P03 bitrat 000.0 Main interface P03 bitrat 000.0 Use key then move the cursor M216 Multiplexer to network address Output1 mumber ... - Page 14 UC-16MX 4.3.2 Initialization The initialization of multiplexer deletes some Parameters of the configuration • The initialization of multiplexer is usually used during the first installation, when the input • streams must be changed or when the work status is abnormal.
-
Page 15: Output Number
UC-16MX 4.3.3 Output number Setting Output number modifies multiplexer outport number, for example setting output1 number 01# P03 bitrat 000.0 Main interface 02# P04 bitrat 000.0 Use key then move UC-16 multiplexer Cursor to output1 number Output1 Number Output1 number Use key to move cursor,... -
Page 16: Test Mode
UC-16MX 4.3.4 Test mode Note When setting test mode, input port will select a program to send to outport and output, until you turn on the equipment again to return to original work mode. Main interface bitrat 000.0 bitrat 000.0 MENU Use ... -
Page 17: Keyboard Lock
UC-16MX 4.3.5 Keyboard Lock Make sure operate safely by Keyboard lock Main interface 01# p03 bitrat000.0 02# p04 bitrat000.0 multiplexer Use key then move UC-16 Cursor to Keyboard Lock Output1 Number Press multiplexer UC-16 Keyboard Lock Keyboard Lock Click “ok”... -
Page 18: Modify Password
UC-16MX 4.3.6 Modify password Front-panel password is necessary to operate the equipment; once you change it you will • be only one to know the new password. Please keep it on a safe, known place in case you need it in the future. -
Page 19: Master Reset
UC-16MX 4.3.7 Master Reset Once you reset the equipment, all previous settings will be lost. Please be careful with this • option. Main interface 01# P03 bitrat 00.00 02# P04 bitrat 00.00 Use key and move cursor M216 multiplexer... -
Page 20: Ersion I Nfo
UC-16MX 4.3.8 Version Info Version info display the M216 version status information 01# p03 bitrat Main interface 02# p04 bitrat MENU UC-16 multiplexer Use key and move cursor to version info Output1 number UC-16 multiplexer Version Info Version infor Display version information, click”menu to return interface... -
Page 21: Appendix A. Alarm Information
UC-16MX Appendix A. Alarm information Indicator light states Input channels states Green light shine Input information locked, channels port opened Green light twinkle Input information but channels port unopened Red light shine Input bitrate overflow or input port opened but no... -
Page 22: Appendix B. Noun Abbreviations
UC-16MX Appendix B. Noun Abbreviations ASI: Asynchronous serial interface Bouquet Association Table Condition Access Table MPTS Multiple Programs Transport Stream N NIT: Net work Information Table Program Association Table PCR: Program Clock Reference PID: Packet Identifier Program Map Table Program Specific Information... - Page 23 Upcom Technologies, Inc. San José, California. Copyright 2007-2010 Tel: +1.408.329.4158 Fax: +1.408.329.4159 website:www.upcom.com...
