Summary of Contents for Mobile Power Power 600 2009
- Page 1 Model No. 2009 POWER 600 Multipurpose 7 in ONE Power Supply Instruction Manual MobilePower, LLC. Bluffton, SC 29910 www. Mobilepower-us.com Office: (800) 708 - 8550 support@mobilepower-us.com customerservice@mobilepower-us.com...
-
Page 2: Important Information

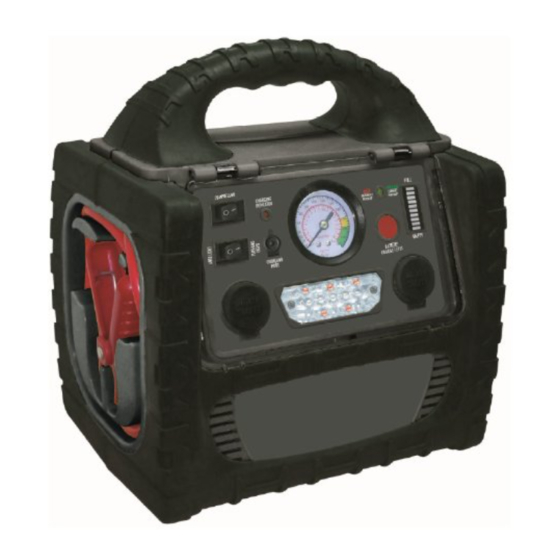

Model No. 2009 POWER 600 7 in ONE POWER SUPPLY with 600W inverter Front Panel Protective Hinge Cover 100 PSI Air Pressure Gauge Polarity Indicator LED Double Injection Rubberized handle Internal Battery Charge Level Air Compressor ON/OFF Switch Status Indicator LED Bars LED Area light and 12 VDC - 10 A Socket / Vehicle Emergency RED Flashing LED... - Page 3 Model No. 2009 IMPORTANT ADVISORY NOTES • Do not use with dry cell batteries. These batteries may burst and cause injury to person or damage personal property. • Do not attempt to face the battery being jumped. Stay away as far as possible from the battery when making the final connection.
- Page 4 Model No. 2009 FEATURES: Compact 7 in 1 multipurpose AC and DC power supply with vehicle jumpstart boosting system. The unit provides: two 12 VDC covered output ports, 600 Watt continuous power inverter with 120 VAC covered outlet, 100 PSI rated Air Compressor, Booster Cables with Insulated Clamps, Booster Cables Power Switch, Nozzle Adaptors for most Inflatables, LED working light, Reverse Polarity Protection, Battery Status Needle Dial Gauge, Dual 12 Volt DC Accessory plugs Charge/Booster Cable through vehicle 12 Volt DC cigarette lighter socket, USB power port with vehicle instant battery jump starter.
- Page 5 Model No. 2009 INTERNAL BATTERY CHARGE LEVEL: Battery Charge Level Status Push Button • Press and hold the Battery Charge Level Status Push Button to determine the unit internal battery charge level prior to each use. FULL • The battery Charge Level bars illuminate Charge indicating the Status of the battery Charge.
- Page 6 Model No. 2009 AIR COMPRESSOR OPERATING INSTRUCTIONS: CAUTIONS • Do not operate the Air Compressor more than 10 Minutes continuously. Allow the compressor to cool down for 10 to 15 minutes between each continuous operation. • Review the products to be inflated for manufacturer’s recommended maximum inflation pressure.
- Page 7 Model No. 2009 600 WATT AC INVERTER OPERATING INSTRUCTIONS: SYSTEM NORMAL OPERATION ————————- GREEN LED OVERLOAD ——————————————————— RED LED LOW BATTERY OR LOW INPUT POWER ———— RED LED 1. Prior to connecting the device to be powered by the inverter, make sure the inverter power switch is in the OFF position.
- Page 8 Model No. 2009 110 Volt AC Household Electronic Devices Powered by Power 600 built-in 600 Watt inverter Electronics Device Power Consumption Approximate Operating time Small Utility light 2 Watt 35 Hours and 40 Minutes iPhone/iPod/MP3 4 Watt 17 Hours and 50 Minutes Cell Phone Chargers 5 Watt 17 Hours and 30 Minutes...
- Page 9 Model No. 2009 6. Follow the instructions for a Negative Grounded System or Positive Grounded System as indicated below: Negative Grounded System I. Connect the RED CLAMP (positive +) to the positive terminal of the vehicle battery or the remote positive terminal if available. II.
- Page 10 Model No. 2009 TROUBLESHOOTING GUIDE: TROUBLE RECOMMENDED SOLUTION Vehicle does not start Make sure the Polarity Protection Green LED is illuminated. Turn the Main Power Switch to ON Position to allow power into the booster clamps. DO NOT turn the Main Power Switch to ON position if the Polarity Protection RED LED is illuminated.
-
Page 11: Specifications
Model No. 2009 SPECIFICATIONS: • Battery rated capacity —————————————————–12 Volt - 18 Ah • Power inverter power output ——————————————- 600 Watt • Air Compressor ———————————————————— 100 PSI • 12 Volt DC output ports output Amp.———————————- 10 A • USB ports output rating ————————————————–- 5 Volt - 500 mA •... - Page 12 Model No. 2009 MobilePower, LLC. Bluffton, SC 29910 www. Mobilepower-us.com Office: (800) 708 - 8550 support@mobilepower-us.com customerservice@mobilepower-us.com Made in China...
