Page 1: Air Conditioner

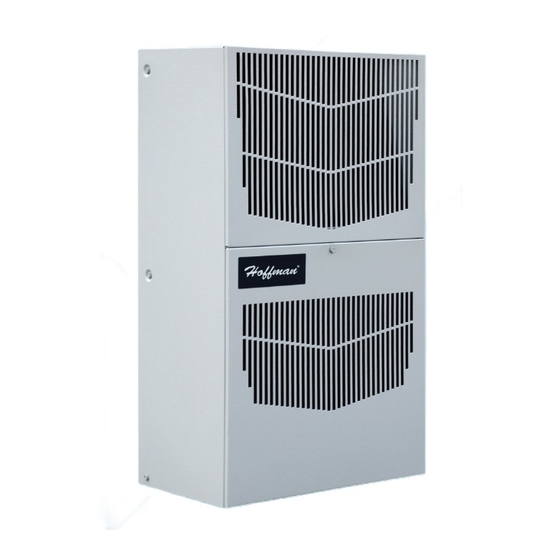

V-SERIES Air Conditioner VA08 Model INSTRUCTION MANUAL © 2015 Pentair Electronics & Electrical Protection China 90164959 Rev. D P/N 90164959... -
Page 2: Table Of Contents
TROUBLE SHOOTING ................................12 Basic Air Conditioning Trouble Shooting Check List ..........................12 Symptoms and Possible Causes: ................................13 WARRANTY ....................................14 RETURN AND REPAIR POLICY ................................14 LIMITATION OF LIABILITY..................................15 © 2015 Pentair Electronics & Electrical Protection China 90164959 - 2 -... -
Page 3: Receiving The Air Conditioner
Damage evident upon receipt should be noted on the freight bill. Damage should be brought to the attention of the delivering carrier -- NOT to Pentair Electronics & Electronical Protection China -- within 15 days of delivery. Save the carton and packing material and request an inspection. -
Page 4: Installation Instructions
CLEANABLE, REUSABLE ALUMINUM INLET FILTER BEHIND REMOVABLE PANEL Note: 1. Mounting gasket supplied (not shown) 2.*272 is the depth for 2000W model. 3. Units: mm 237(*272) Figure 1 © 2015 Pentair Electronics & Electrical Protection China 90164959 - 4 -... -
Page 5: Mounting Cutout Dimensions
MOUNTING CUTOUT DIMENSIONS 8(7x ) 13(4x ) External Mounting Partial Recess Mounting Figure 2 CUTOUT INSTRUCTIONS (As viewed from outside of enclosure) NOTE: Dashed lines represent air conditioner. © 2015 Pentair Electronics & Electrical Protection China 90164959 - 5 -... -
Page 6: Technical Information
At a saturated condenser temperature of 48°C (1.14 MPa), the condenser fan will power on. At a saturated condenser temperature of 29°C (0.66 MPa), the condenser fan will power off. © 2015 Pentair Electronics & Electrical Protection China 90164959 - 6 -... -
Page 7: Unit Characteristics
3.96 Heating Amps (A) Compressor RLA / LRA (A) 1.92/13.5 1.92/ 13.5 3.1 / 22 Evaporator Fan RLA (A) 0.35 0.53 0.53 Condenser Fan RLA (A) 0.39 0.53 © 2015 Pentair Electronics & Electrical Protection China 90164959 - 7 -... -
Page 8: Wire Diagrams
WIRE DIAGRAMS VA08 GENERIC WIRE DIAGRAM (ACTUAL UNIT OPTIONS MAY VARY) © 2015 Pentair Electronics & Electrical Protection China 90164959 - 8 -... -
Page 9: Schematics
3218245 90198025 90198025 Capillary tube 90232012 90242554 90239288 Thermostat, SPDT, 55-100F 3204580 3204580 3204580 Display(option) 90164848 90164848 90164848 T-Black 769-603/004/000 90164849 90164849 90164849 T-Black 769-103 90164850 90164850 90164850 © 2015 Pentair Electronics & Electrical Protection China 90164959 - 9 -... -
Page 10: Maintenance
1. Flush the filter with warm water from the exhaust side to the intake side. DO NOT USE CAUSTICS. 2. After flushing, allow filter to drain. Placing it with a corner down will assure complete drainage. © 2015 Pentair Electronics & Electrical Protection China 90164959... -
Page 11: Condenser And Evaporator Air Movers
CAUTION Operation of the air conditioner in areas containing airborne caustics or chemicals can rapidly deteriorate filters, condenser coils, blowers and motors, etc. Contact Pentair Electronics & Electronical Protection China for special recommendations. REFRIGERANT LOSS Each air conditioner is thoroughly tested prior to leaving the factory to insure against refrigeration leaks. Shipping damage or microscopic leaks not found with sensitive electronic refrigerant leak detection equipment during manufacture may require repair or recharging of the system. -
Page 12: Trouble Shooting
(replace upper access panel for safety). This will activate the switch in the thermostat. Turn the power on and if all impellers and the compressor come on,the thermostat needs to be replaced. © 2015 Pentair Electronics & Electrical Protection China 90164959 - 12 -... -
Page 13: Symptoms And Possible Causes
Drain tube kinked Getting water in enclosure Enclosure not sealed (allowing humidity in) Mounting gasket damaged For additional technical support, contact Pentair Electronics & Electronical Protection China at 400-820-1133. © 2015 Pentair Electronics & Electrical Protection China 90164959 - 13 -... -
Page 14: Warranty
China shall result in forfeiture of Buyer’s rights under this warranty. In the event of a warranty claim, Buyer is to return defective goods to Pentair Electronics & Electronical Protection China in accordance with Pentair Electronics & Electronical Protection China Return Policy. -
Page 15: Limitation Of Liability
The PO will not exceed 50% of a new unit. Buyer will be notified of repair charges that exceed approved PO amount. B. All returns to Pentair Electronics & Electronical Protection China must be securely packed, using original cartons if possible. All returns must have the RMA number visible on the outside of the carton. - Page 16 Pentair Electronics & Electrical Protection China Airport Industrial Zone, Shuangyuan Road South, Chengyang District, Qingdao, China 400-820-1133 +86-532-8771 6106 www.PentairProtect.com © 2015 Pentair Electronics & Electrical Protection China 90164959 Rev. D P/N 90164959...
