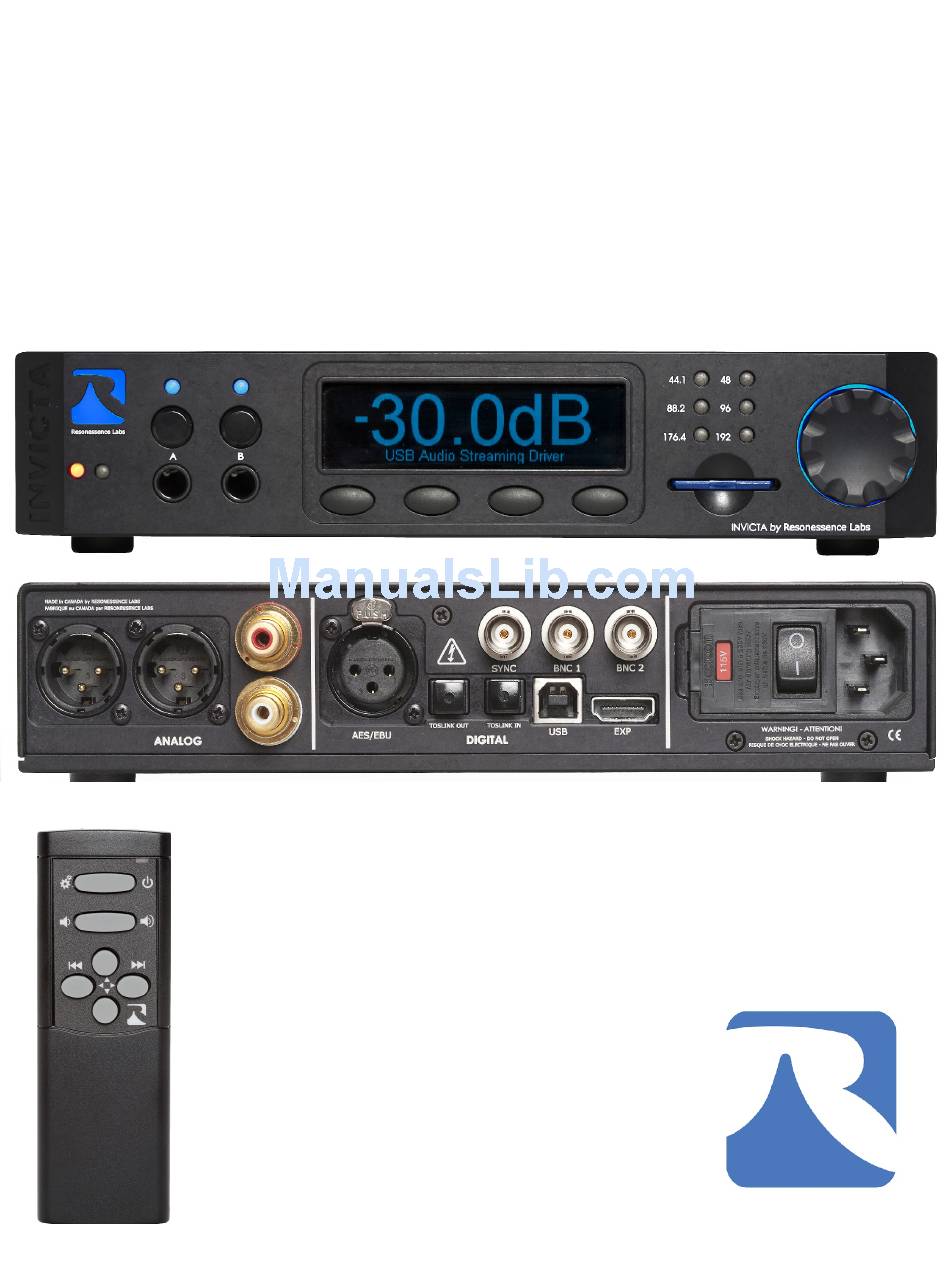

- Page 1 Resonessence INVICTA User Guide Front Panel Controls, Remote Control, Operating Upgrading Firmware, and System Revision 3.0 Warranty Description Resonessence Labs, Kelowna, BC Canada. www.resonessence.com...
- Page 2 The SD Card source provides a directory tree are provided. The selection scroll-through list of song titles found on of data sources (USB, S/PDIF etc) is in a the card. WAV, AIFF and FLAC data Illustration 1: INVICTA showing SD Directory on HDMI Monitor...
- Page 3 In SD Card mode, supported for up to 2TB of data on the HDMI output shows Album Art in PNG, SD Card. BMP and JPG format. HDMI output is Illustration 2: INVICTA showing Album Art and Track Status on HDMI Monitor...
-
Page 4: Data Sources
5. USB Audio Streaming Driver: data or professional mode single-ended delivered by USB Audio 2.0 (Mac, Sony/Philips Digital Interface or PC with Resonessence driver) or Format from the BNC1 terminal. USB Audio 1.0 (Microsoft 2. BNC2 (S/PDIF): Data in consumer... -
Page 5: Rear Panel Connectors
Remote Control Keys Press briefly on the “Pop / Back” button of the remote to return to the top level menu. Press the “Up” or “Down” button to select the Data Source. Press briefly on the “Power On / Standby” button of the remote to blank the OLED display, press and hold to enter or leave the standby state. -
Page 6: Using Headphones
Amplifier with Loudspeakers Begin ensuring that INVICTA USB is set to use the audio Connect the power amplifier input specification that you wish to use. USB to either the balanced XLR outputs or to Audio 1.0 or 2.0 is selected in the “User the single-ended RCA output terminals. -
Page 7: User Settings
Other Data Sources a potential audio output device. Select the When valid S/PDIF data is detected INVICTA as the default output in the host on the selected source the INVICTA will computer's audio control panel. start to decode and present the audio Any music now played on the host output to all analog outputs. - Page 8 Maximum Volume Level An adjustable parameter that limits the maximum volume level. OLED Screen Brightness 0 (off) to 10 (Bright) allows the INVICTA to match the brightness level of other audio equipment in the customer configuration. LED Brightness “LED Brightness” refers to the Blue LED, “Standby LED Brightness”...
-
Page 9: Limited Warranty
RMA clearly If you find any problems, faults or visible on the outside. We can only accept unexpected performance in the INVICTA units for return or repair with the RMA unit in the first three years of operation, it attached. - Page 10 Resonessence will be responsible three years after the original purchase for all parts and labour necessary to fix date, Resonessence will only cover the defects in materials or workmanship of cost of shipping the unit back to you, and the hardware elements of the unit.
-
Page 11: Limits And Exclusions
LIMITS AND EXCLUSIONS RESONESSENCE DOES NOT, BY VIRTUE OF THIS DOCUMENT, OR BY ANY COURSE OF PERFORMANCE, COURSE OF DEALING, OR USAGE OF TRADE, MAKE ANY OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING, WITHOUT LIMITATION, ANY WARRANTY OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE, TITLE OR NONINFRINGEMENT, AND ALL... - Page 12 4. Follow the instructions to ensure that the INVICTA is plugged in and choose “Next”: 8. At this point the driver software is in place, ready to be found by Windows.
- Page 13 Appendix B with no pre-ringing. Up-sampling Filters in the • Resonessence designed, Minimum Phase Slow INVICTA rev 3.0 Software Roll-off. On the OLED display panel this appears as • The internal Fast Roll-off filter pre-installed “Minimum Phase Slow Roll-Off”...
