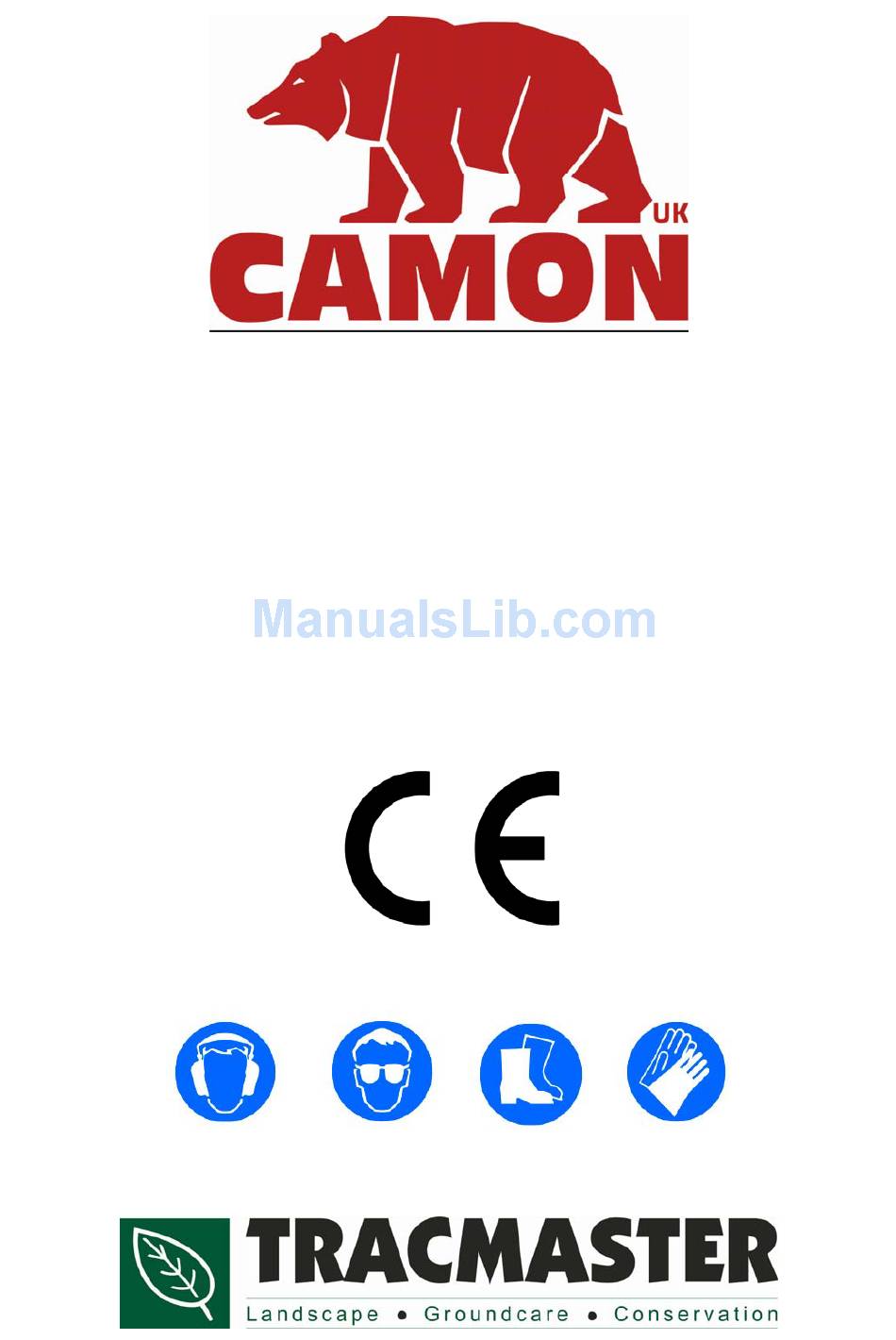

- Page 1 C2000 TILLER GX Engine Version Operating Instructions Before commissioning the machine, read operating instructions and observe warning and safety instructions.
- Page 2 CAMON C2000 GX Tiller Tracmaster Ltd Manufacturer Details Tracmaster Ltd Sovereign Centre Victoria Road Burgess Hill West Sussex RH15 9LR UNITED KINGDOM Tel: +44 1444 247689 Fax: +44 1444 871612 www.tracmaster.co.uk info@tracmaster.co.uk Machine Details Model: CAMON C2000 Tiller Serial Number: ..........
-
Page 3: Table Of Contents
5.2 To Stop the Engine ......................9 5.3 Safety Equipment ......................9 5.4 Operation......................... 9 5.5 Procedure for Unexpected Shut Down ................9 5.6 Residual Risks of the C2000 Tiller................... 9 6.0 Maintenance .......................... 10 6.1 Schedule........................10 6.2 Basic Maintenance ......................10 6.3 Engine .......................... -
Page 4: Designation Of Machine
The CAMON C2000 Tiller has been designed by Tracmaster for cultivating soil for planting of vegetables, plants and flowers. The benefit of using a C2000 Tiller is the ease and efficiency with which the machine is able to dig the ground, saving the operator substantial time and effort. -
Page 5: Specifications
Tracmaster Ltd CAMON C2000 GX Tiller 2.0 Specifications ENGINE Engine Manufacturer Honda Engine Models GX160 Engine Type 4-Stroke overhead valve, single cylinder Engine Output Engine Shaft Size 3/4” Straight Spark Plug BPR6ES(NGK) / W20EPR-U (DENSO) Spark Plug Gap 0.70-0.80mm Engine Ignition Type... -
Page 6: Unpacking And Assembly
CAMON C2000 GX Tiller Tracmaster Ltd 3.0 Unpacking and Assembly Major Components Diagram Engine On/Off Switch Top Handlebar Handlebar Pin & R-Clip Operating Lever Engine Belt Guard Lifting Handle Drag Bar Digging Tines Transport Wheel Unpacking Instructions Open the top of cardboard box. -
Page 7: Safety Instructions
Before starting the machine, read and understand these operating instructions. Main Components and Operating Elements Below is a description of the main components of the C2000 Tiller and how they operate. Engine and Drive The Honda GX160 is fitted with a red ON/OFF switch that is the main operating control for the engine. -
Page 8: Drag Bar
The depth is controlled by varying the position at which the drag bar is held into its location at the rear of the C2000. The drag bar has a choice of holes through which its locating pin can be positioned. The lower the hole used on the drag bar to hold it in its position, the deeper the machine will dig. -
Page 9: Engine Specific Safety Instructions
Tracmaster Ltd CAMON C2000 GX Tiller Read and be aware of the warning and instruction signs located on the machinery. Cordon off the work area to access from the general public. Before starting work clear the area of any objects that may cause damage to the machine. -
Page 10: Safety Instructions Starting And Operating
CAMON C2000 GX Tiller Tracmaster Ltd 5.0 Safety Instructions Starting and Operating To Start the Engine Using the dipstick provided, check the engine oil level. Top up with 10w/30 oil if the dipstick is clear of oil. Check the fuel level. Refill as necessary and as determined by the fuel tank type –... -
Page 11: To Stop The Engine
Ensure the tines have stopped rotating prior to moving the machine. Residual Risks of the C2000 Tiller The C2000 Tiller is designed to be pushed by the operator during transportation. It has no brake system and therefore the operator must hold firmly onto the machine at all times when the machine is on sloped areas. -
Page 12: Maintenance
CAMON C2000 GX Tiller Tracmaster Ltd 6.0 Maintenance Schedule Operation Daily Every Every Week Month Engine Check engine oil level 10W/30 See separate engine manual Machine Check condition of tines Check belt condition Check operating lever and cable Check protection cover condition... -
Page 13: Air Filter
Tracmaster Ltd CAMON C2000 GX Tiller Do not change the oil if the engine is hot. The first oil change is after 50 hours of work. Subsequent oil changes should be made after each 100 hours of work. At extreme temperatures or conditions change the oil after every 50 hours. Drain the oil when the engine is warm, as it will drain quickly and completely when warm. -
Page 14: Cleaning
CAMON C2000 GX Tiller Tracmaster Ltd Cleaning After cleaning, particularly if a pressure washer has been used, ensure any lubrication points are re-lubricated. Clean the engine with a cloth only. Avoid spraying the engine with jets of water as this may leak into the fuel and ignition systems. -
Page 15: Transportation, Storage And Handling
Transportation Use ramps where possible to manoeuvre the Tiller into a transportation vehicle. The C2000 Tiller must be fixed securely using straps and by placing chocks behind the wheels. Always transport the C2000 Tiller horizontally and not tilted at an angle. -
Page 16: Service Record
CAMON C2000 GX Tiller Tracmaster Ltd 8.0 Service Record To ensure your machine is kept in peak condition we recommend that your Scarifier is serviced regularly. Contact Tracmaster on 01444 247689 to find out who your local Authorised Agent is. -
Page 17: Warranty Registration
Tracmaster Ltd CAMON C2000 GX Tiller Warranty Registration To validate your warranty please complete the form below and return it to: Tracmaster Ltd, Sovereign Centre, Victoria Road, Burgess Hill, RH15 9LR Alternatively visit www.tracmaster.co.uk and complete the online form. CUSTOMER DETAILS Name: ....................... - Page 18 CAMON C2000 GX Tiller Tracmaster Ltd _______________________________________________________________________________ For parts diagrams visit www.tracmaster.co.uk...
-
Page 19: Ec Declaration Of Conformity
Tracmaster Ltd CAMON C2000 GX Tiller EC Declaration of Conformity Tracmaster Ltd declares that the machinery stipulated below complies with all the relevant provisions of: Machinery Directive 2006/42/EC EMC Directive 89/336/EEC and the National Laws and Regulations adopting these directives and other relevant directive. - Page 20 © 2011 Tracmaster Ltd Sovereign Centre, Victoria Road, Burgess Hill RH15 9LR Tel: +44 (0) 1444 247689 Fax: +44 (0) 1444 871612 www.tracmaster.co.uk info@tracmaster.co.uk...
