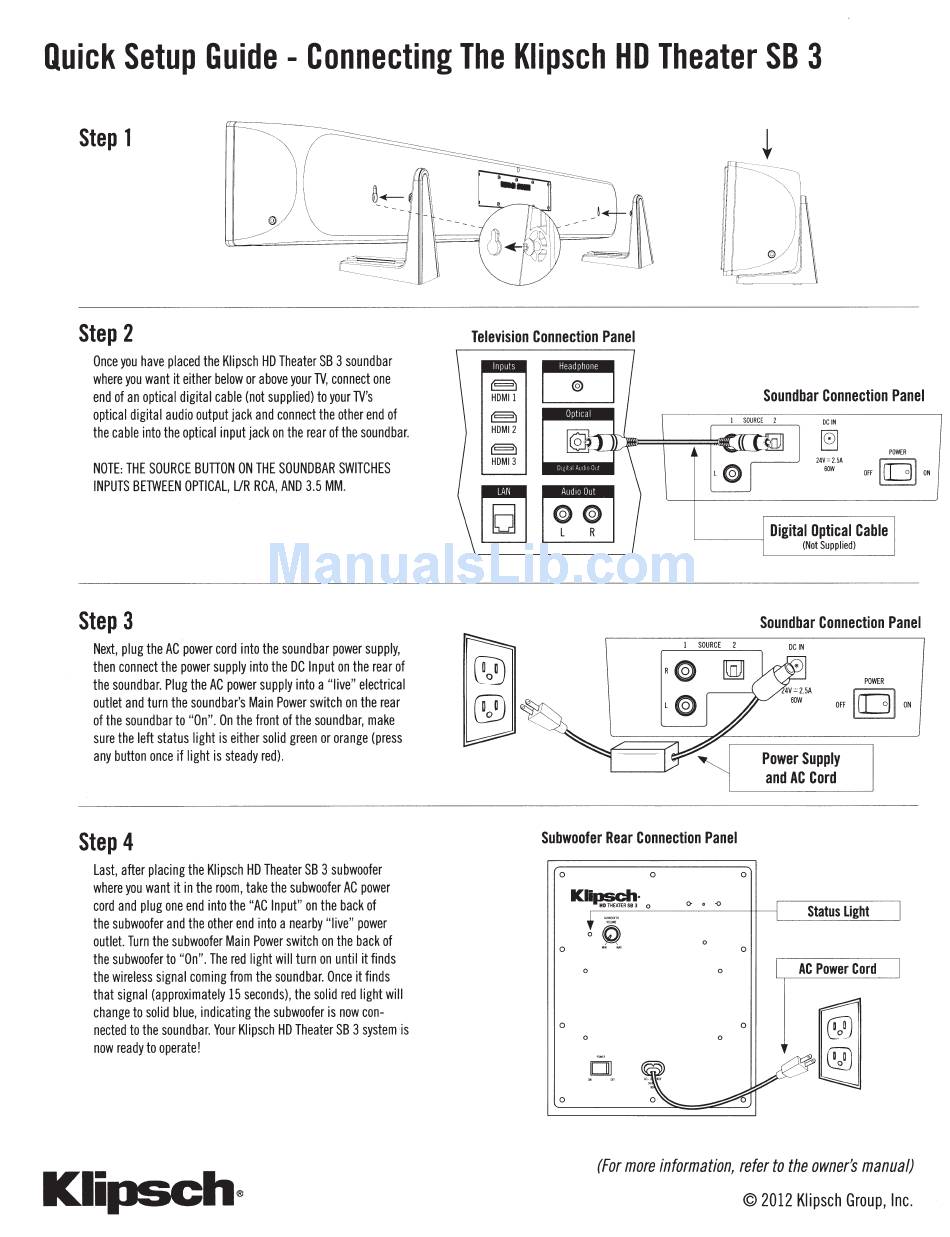

Quick Setup Guide - Connecting The Klipsch HD Theater SB 3
Step 1
Step 2
Once you have placed the Klipsch HD Theater SB 3 sound bar
where you want it either below or above your TV, connect one
end of an optical digital cable (not supplied) to your TV's
optical digital audio output jack and connect the other end of
the cable into the optical input jack on the rear of the soundbar.
NOTE: THE SOURCE BUTTON ON THE SOUND BAR SWITCHES
INPUTS BETWEEN OPTICAL, UR RCA, AND 3.5 MM.
Step 3
Next, plug the AC power cord into the sound bar power supply,
then connect the power supply into the DC Input on the rear of
the sound bar. Plug the AC power supply into a "live" electrical
outlet and turn the sound bar's Main Power switch on the rear
of the soundbar to "On". On the front of the sound bar, make
sure the left status light is either solid green or orange (press
any button once if light is steady red).
Step 4
Last, after placing the Klipsch HD Theater SB 3 subwoofer
where you want it in the room, take the subwoofer AC power
cord and plug one end into the "AC Input" on the back of
the subwoofer and the other end into a nearby "live" power
outlet Turn the subwoofer Main Power switch on the back of
the subwoofer to "On". The red light will turn on until it finds
the wireless signal coming from the sound bar. Once it finds
that signal (approximately 15 seconds), the solid red light will
change to solid blue, indicating the subwoofer is now con-
nected to the sound bar. Your Klipsch HD Theater SB 3 system is
now ready to operate!
tr.
,-J~
· · · · · · ··-.. . .. . . . 1 \J
Television Connection Panel
(§)
HDMI 2
(§)
HDMI3
Soundbar Connection Panel
DC IN
24V::.: 2_5A
60W
POWIR
OFF
111
°~~
ON
Digital Optical Cable
'----- ----1 (Not S upplied)
Soundbar Connection Panel
POW ER
OFF
ID3l
ON
Power Supply
and ACCord
Subwoofer Rear Connection Panel
0 0 0
Kl~·
HDTHE,O. T ERSB3 0
Status Light
0
0~
0
0 0
AC Power Cord
0 0
0
OJ
0
(For more information, refer to the owner's manual)
