Remove all contents from the carton packaging. Make sure all parts are present before attempting assembly.
Once the grill is fully assembled, go back and check to make certain all the bolts are secure. Tighten again
using the screwdriver provided if necessary.
Estimated Assembly Time: 25 minutes

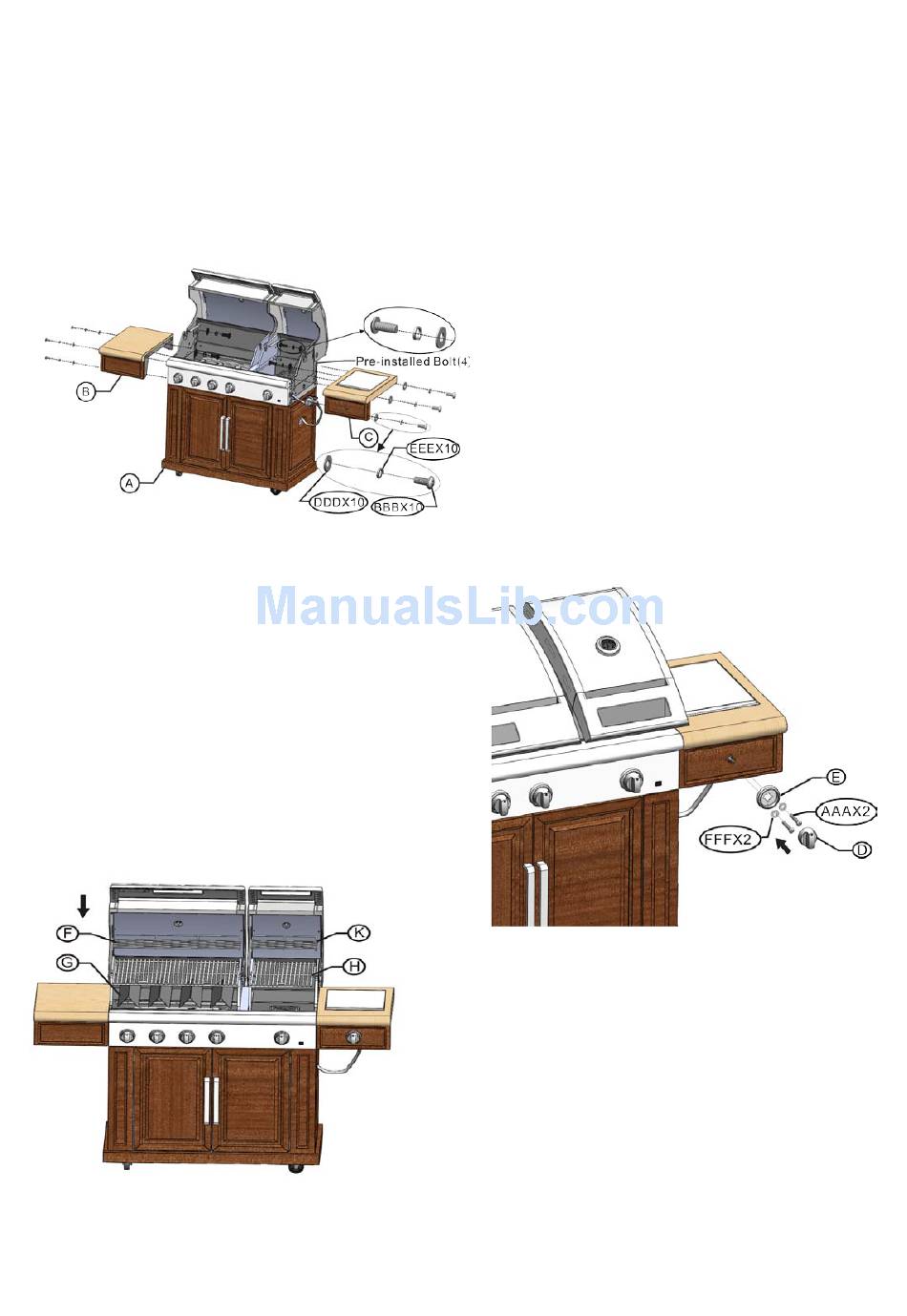

(Assemble the side burner valve and knob)
a) Insert the side burner valve through the hole on the
right side table.
b) Align the holes on the side burner knob seat (E) with
the holes on the right side table and the side burner
valve. Screw one M4x30 bolt (AAA) with one M4 flat
washer (FFF) into each pre-drilled hole by hand.
Tighten bolts using the screwdriver provided.
Insert the knob (D) onto the valve shaft.
a) Loosen the bolts (pre-installed) on the left side of body
b) Align the holes on the left side table (B) with the bolts
c) Align the holes on the left side table with the holes on
d) Insert one M6x15 bolt (BBB), one M6 spring washer
e) Repeat the procedure for the right side table (C) with
f) Go back and tighten all bolts using the screwdriver
Heating plate, cooking grid and warming rack
a) Place the heating plates (G) upon the burners.
Place the cooking grids (H) upon the heating plates.
c) Place the left warming rack (F) and right warming rack (K) on
the warming rack support as show.
Close the top lids.
(Assemble the side tables with body assembly)
assembly and allow
bolt's length to extend from the
extended from the left side of body assembly. Push
down the left side table until it locks into place.
(EEE) and one M6 flat washer (DDD) into each
pre-drilled hole. Tighten bolts by hand until secure.
