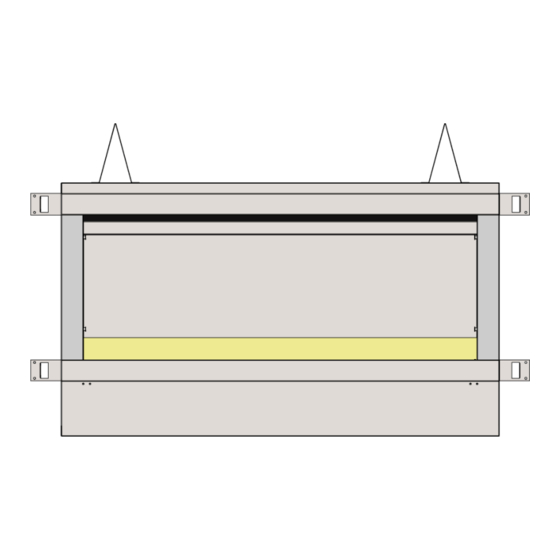

THE TAHOE Natural Gas & Propane Outdoor Gas Fireplace Installation and Operating Instructions CERT # LC773211 WARNING: If the information in this manual is not followed exactly, a fire or explosion may result causing property damage, personal injury, or loss of life.
Page 2
AVERTISSEMENT: Si les renseignements dans ce manuel ne sont pas suivies à la lettre, un incendie ou une explosion peut entraîner des dommages matériels, des blessures ou des pertes de vie. Pour votre sécurité Ne pas entreposer ni utiliser d'essence ou d'autres vapeurs et liquides inflammables à proximité...
INSTALLATION CODES Installation must conform to local codes or in the absence of local codes, installation must conform to the National Fuel Gas Code, ANSI Z233.1, or the current CAN/CGA B149.1 Installation Codes. In the state of Massachusetts, this product can only be installed by a licensed plumber or a licensed gas fitter.
Page 6
• It is highly recommended that this fireplace be installed in a “sheltered” area. Direct wind will • cause an erratic flame and possible pilot or main burner outage. / Il est fortement recommandé que ce foyer est installé dans une zone "protégé". Vent direct provoquer une flamme irrégulière et pilote possible ou principal panne de brûleur.
LIGHTING INSTRUCTIONS - for Intermittent Pilot FOR YOUR SAFETY, READ BEFORE LIGHTING WARNING: If you do not follow these instructions exactly, a fire or explosion may result causing property damage, personal injury or loss of life. This appliance is equipped with an ignition device which automatically lights the pilot. Do not try to light the pilot by hand. BEFORE LIGHTING smell all around the appliance area for gas.
Page 8
POUR PLUS DE SÉCURITÉ, LIRE AVANT D’ALLUMER AVERTISSEMENT: Quiconque ne respecte pas à la letter les instructions dans la présente notice risqué de déclencher un incendie ou une explosion entraînant des dommages, des blessures ou la mort. Cet appareil est équipé d'un dispositif d'allumage qui allume automatiquement le pilote. Ne pas tenter d'allumer le pilote à la main. Avant d’allumer la veilleuse, reniflez tout autour de l’appareil pour déceleur une odeur de gaz.
GAS VALVE DIAGRAM FLAME ADJUSTMENT The valve supplied with the appliance has a HI/LO knob to control the flame height. To adjust the flame height, turn the adjustment knob. Turning the knob in a clockwise direction sets the valve to the maximum setting, turning the knob in a counterclockwise direction sets the valve to the minimum setting.
GAS SAFETY INFORMATION How to Leak Test Your Appliance • Mix a solution of liquid soap and water in a small container. • Make sure that the gas supply is turned on. For LP gas appliances make sure that the valve on the gas cylinder is turned on.
INSTALLATION & SAFETY NOTES Read all instructions before starting installation and follow them carefully during installation to ensure maximum benefit and safety. Failure to follow these instructions will void your warranty and may present a fire hazard. See the warranty at the back of this manual for disclaimers regarding improper installation.
Page 12
INITIAL FIRING When lit for the first time, the appliance may emit an odor resulting from evaporation of paint and lubricants used in the manufacturing process. This is normal and will subside after the unit has run for an hour or so. Periodic visual checks of the pilot and burner flames should be conducted. For proper operation, the pilot and main burner flames must be steady and not lifting off or floating.
Propane Gas – Fully Open ALTITUDE ADJUSTMENT All valves have been pre-set and certified for installation at elevations from 0 - 4000 feet (0 -1219.2m) above sea level. When installing this unit at higher elevations, it is necessary to decrease the input rating by replacing the existing burner orifice with a smaller size for installations over 4000 feet (1219.2 m).
WARNING AVERTISSEMENT YOU MUST WEAR FLAME AND HEAT RESISTANT GLOVES FOR THESE ADJUSTMENTS. VOUS PORTER DES GANTS DE FLAMME ET RESISTANT A LA CHALEUR DE CES AJUSTEMENTS. MAINTENANCE MAINTENANCE SAFETY Turn off the gas to the main burner and allow the fireplace to cool for 30 minutes before servicing.
TROUBLE SHOOTING - INTERMITTENT PILOT SYMPTOM CORRECTIVE ACTION POSSIBLE CAUSE A. No spark at electrode (weak or not heat source for pilot ignition) I. Pilot will not light after repeated triggering of the remote control – intermittent pilot 1. Improper ignition 1.
REPLACEMENT PARTS When requesting service or replacement parts for your unit, please provide model name and serial number. All parts listed below may be ordered from an authorized dealer. Description Part# Burner 1213 Pilot Assembly 80869066 Orifice - NG MP0505-30 Orifice - LPG MP0505-47 Gas Valve...
Sierra Flame. Sierra Flame’s GAS FIREPLACE’S WARRANTY Your Sierra Flame gas fireplace is guaranteed to be free of defects in materials and workmanship for a period of 5 years from the date of purchase. Combustion chambers and wearable parts such as gas valves, wiring, igniter and gaskets are...
This warranty defines the obligations and liability of Sierra Flame with respect to the Sierra Flame gas fireplace and any other warranties expressed or implied with respect to this product, its components or accessories are excluded.
