Parts List/Kits; Replacement Part Kits - Elkay LZWSRK -EZH2O Installation, Care & Use Manual

WATERSENTRY
ITEM NO.
1
2
3
4
5
6
7
2
4
1

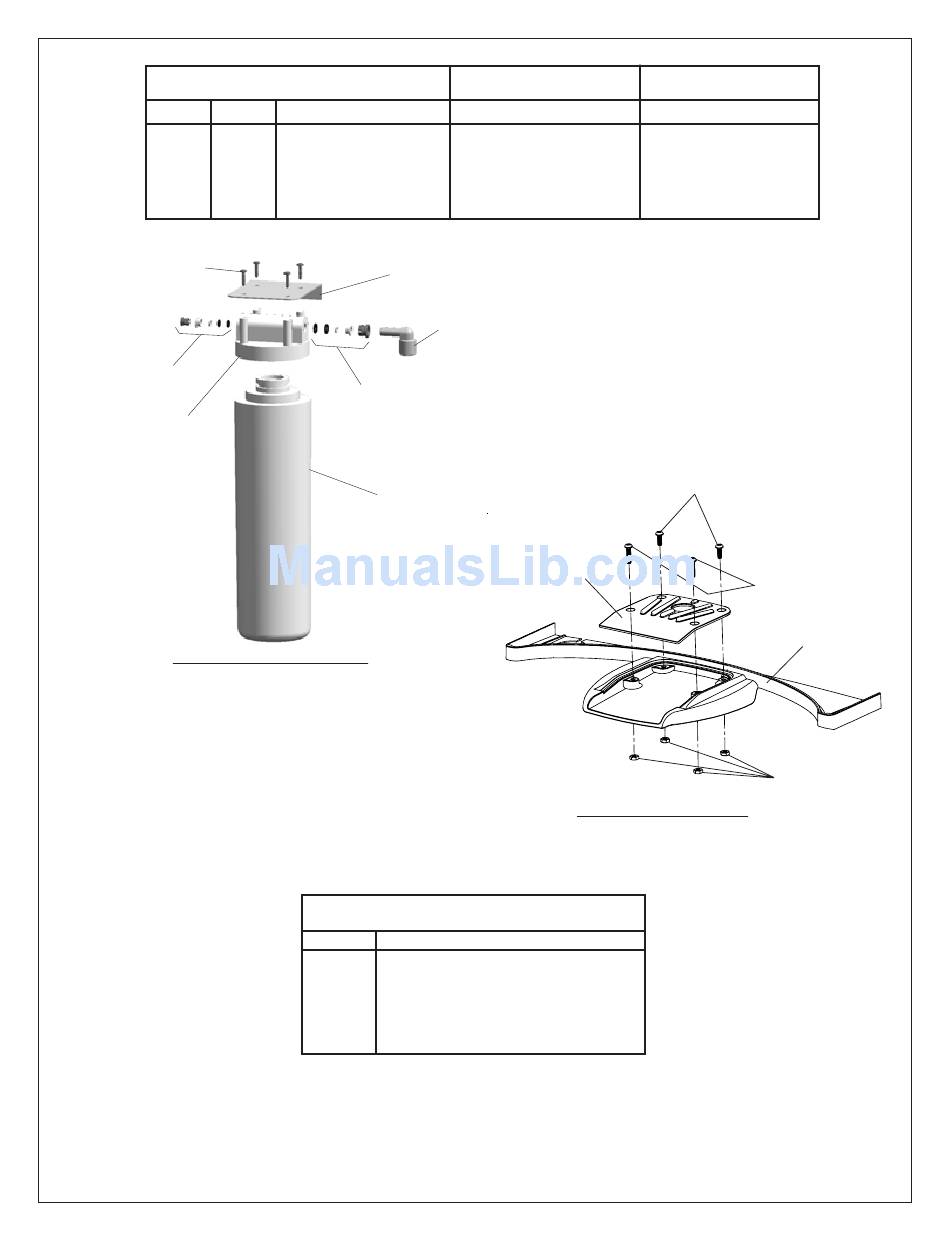

WATER FILTER EXPLODED VIEW
PRINTED IN U.S.A.
IMPRESO EN LOS E.E.U.U.
IMPRIMÉ AUX É.-U.
ELKAY MANUFACTURING COMPANY • 2222 CAMDEN COURT • OAK BROOK, IL 60523 • 630.574.8484
98518C (Rev. B - 2/10)
®
PLUS FILTER PARTS LIST
(See Fig. 14)
PART NO. DESCRIPTION
51294C Filter Head Assy.
70792C Screw #8-18 x .75 PH
Fitting - Superseal 3/8" (10 mm)
70823C
Fitting - Superseal 1/4" (6 mm)
70822C
Filter Assy
51300C
70818C Elbow - 3/8" (10mm)
22490C Bracket
7
3
5
Fig. 14

REPLACEMENT PART KITS

PART NO.
98543C Kit - Electrical Package
Kit - EE Sensor
98544C
Kit - Solenoid Valve Replacement
98545C
Kit - Aerator Replacement
98546C
Kit - Top Cover Replacement
98547C
Kit - Drain Mat & Cover Replacement
98548C
Kit - Hardware & Waterway Parts
98549C
98551C Kit - LZ Filter Mounting Cover
REPAIR SERVICE INFORMATION TOLL FREE NUMBER 1.800.260.6640
NÚMERO GRATIS DE SERVICIO 1.800.260.6640
INFORMATIONS POUR LE SERVICE PAR NUMERO SANS FRAIS 1.800.260.6640
FOR PARTS, CONTACT YOUR LOCAL DISTRIBUTOR OR CALL 1.800.323.0620
PARA PIEZAS, CONTACTE A SU DISTRIBUIDOR LOCAL O LLAME AL 1.800.323.0620
POUR OBTENIR DES PIÈCES, CONTACTEZ VOTRE DISTRIBUTEUR LOCAL OU COMPOSEZ LE 1.800.323.0620
LZWSR*1A
LISTA DE PIEZAS DEL FILTRO
(Vea Fig. 14)
DESCRIPCIÓN
Ensamblado de la Cabeza del Filtro
Tornillo #8-18 x .75 PH
Accesorio - Supersello 3/8" (10mm)
Accesorio - Supersello 1/4" (6 mm)
Ensamblado del Filtro
Codo - 3/8" (10 mm)
Fijador
6
Drain Cover
DRAIN MAT EXPLODED VIEW
DESCRIPTION
Page 8
LISTE DES PIÈCES DU FILTRE
(Voir Fig. 14)
DESCRIPTION
Ens. de tête de filtre
Vis #8-18 x .75 hp
Raccord - Superseal 3/8" (10mm)
Raccord - Superseal 1/4" (6mm)
Ens. filtre
Coude - 3/8" (10mm)
Support
Short Screws
Long Screws
Drain Mat
Nuts
Fig. 15
