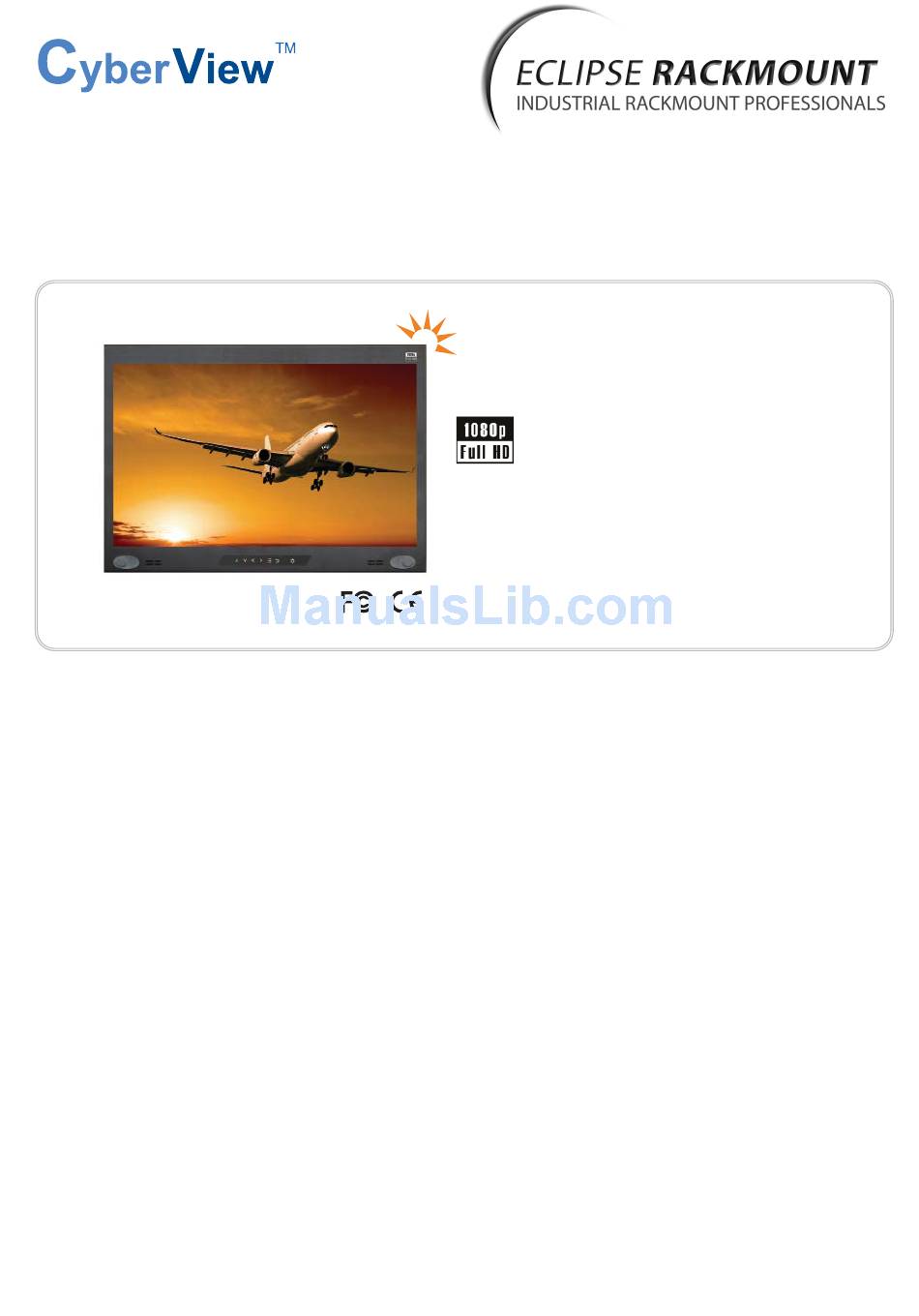

User Manual
Designed/Manufactured by Austin Hughes and Distributed by Eclipse Rackmount, Inc.
Manual ML39V02A -- Generation 4 -- www.EclipseRackmount.com
FMPHB-21
8U 1080p High Bright Rackmount Panel
Options Available:
- SDI / MCS
- BNC / HDMI / Audio
- Touch-Screen / DC Power
- MIL-Type or Lockable Connector
Advertisement
Table of Contents
Related Manuals for Eclipse CyberView FMPHB-21
Summary of Contents for Eclipse CyberView FMPHB-21
-
Page 1: User Manual
8U 1080p High Bright Rackmount Panel Options Available: - SDI / MCS - BNC / HDMI / Audio - Touch-Screen / DC Power - MIL-Type or Lockable Connector Designed/Manufactured by Austin Hughes and Distributed by Eclipse Rackmount, Inc. Manual ML39V02A -- Generation 4 -- www.EclipseRackmount.com... - Page 2 Legal Information First English printing, October 2002 Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The information in this document is subject to change without notice. We are not liable for any injury or loss that results from the use of this equipment.
-
Page 3: Table Of Contents
Contents FMPHB-21 < Part. 1 > Package Contents Structure Diagram & Dimensions P.1 - 2 Installation P.3 - 4 Specifications / OSD / Remote Controller < Part. 2 > Product Specifications P.5 - 6 On-Screen Display Operation ( OSD ) P.7 - 8 Picture In Picture ( PIP ) / Picture By Picture ( PBP ) P.9 - 10... -
Page 4: Before Installation
Before Installation ■ It is very important to mount the equipment in a suitable cabinet or on a stable surface. ■ Make sure the place has a good ventilation, is out of direct sunlight, away from sources of excessive dust, dirt, heat, water, moisture and vibration. Unpacking The equipment comes with the standard parts shown in package content. -
Page 5: Part. 1 > Fmphb-21
< Part 1 > FMPHB-21 < 1.1 > Package Contents FMPHB-21 unit X 1 - 6ft VGA cable X 1 - Power adapter X 1 - Power cord X 1 - Fastener screw for rear bracket x 2 < 1.2 > Structure Diagram Front view Power adapter Rear view... - Page 6 < 1.2 > Dimensions Front View Side View UNIT : mm Rear View 1mm = 0.03937 inch Bottom View Product Dimension Packing Dimension Gross Model (W x D x H) (W x D x H) Weight Weight 501.9 x 64 x 353 mm 555 x 124 x 537 mm 7.5 kg 10 kg...
-
Page 7: Installation
< 1.3 > VESA Mount Installation FMPHB-21 M4 screw VESA mount ( 100*100mm ) ■ Hardware and M4*4 pcs for VESA mount are not provided Page 07 -- ML39V02A -- www.EclipseRackmount.com... - Page 8 < 1.3 > Rear Mounting Bracket Installation Step ■ Mount the rear bracket with M6 screw set. ■ 8 x M6 screw set are required. M6 screw sets are not provided. rear bracket Step ■ Insert the upper part of the FMPHB-21 display panel into the rear bracket.
-
Page 9: Product Specifications
< Part 2 > FMPHB-21 < 2.1 > Product Specifications Panel Size ( diagonal ) 21.5-inch Widescreen TFT color LCD Panel Display pixel ( dots x lines ) 1920 x 1080 Brightness ( typ. ) 1000 Contrast Ratio ( typ. ) 5000:1 Color 16.7 M... - Page 10 Environmental Operating Temperature 0 to 50°C degree Conditions Humidity 20~90%, non-condensing Storage Temperature -5 to 60°C degree Humidity 5~90%, non-condensing Shock 10G acceleration (11ms duration) Vibration 5~500Hz 1G RMS random Physical Product ( W x D x H ) 501.9 x 64 x 353 mm Specification 19.8 x 2.5 x 13.9 inch Packing ( W x D x H )
-
Page 11: On-Screen Display Operation ( Osd )
FMPHB-21 < 2.2 > On-Screen Display Operation ( OSD ) Membrane Switch Function Turn the monitor on or off Display the OSD menu Act as an Enter key to select screen setting options Scroll through menu options and adjust the displayed control Exit the OSD screen Go back to the previous on-screen sub-menu or main menu... - Page 12 < 2.2 > On-Screen Display Operation ( OSD ) Auto adjust : Automatically adjust sizes, centers and fi ne tunes the video signal to eliminate waviness and distortion. Clock : Adjust the clock value Phase : Adjust the phase value H.
-
Page 13: Picture In Picture ( Pip ) / Picture By Picture ( Pbp )
FMPHB-21 < 2.3 > How to Use Picture In Picture ( PIP ) / Picture By Picture ( PBP ) < 2.3.1 > Picture in Picture ( PIP ) Mode Display the Sub screen in the Main screen. OSD Menu → MISC → PIP Mode → Large / Small / OFF Main screen Sub screen Position... - Page 14 < 2.3.2 > Picture By Picture ( PBP ) Mode Display the Sub screen next to the Main screen. OSD Menu → MISC → PIP Mode → PBP Main screen Sub screen Size LCD Monitor Main / Sub screen 1920 x 1200 955 x 716 1920 x 1080 955 x 716...
-
Page 15: Options : 3G / Hd / Sd-Sdi Input
< Part 3 > FMPHB-21 < 3.1 > Options : 3G / HD / SD-SDI input The SDI input is an ideal solution for the broadcast- grade video and high resolution CCTV market. Designed for use with CyberView Full HD 1080p and ultra high resolution 1920 x 1200 LCD displays, the board provides a SDI input module without using additional space or power and it comes standard with a 2-year warranty. -
Page 16: Multi-Display Control
< 3.2 > Options : MCS ( Multi-Display Control ) The MCS solution is able to control the OSD of various CyberView LCD displays up to 64 units.. The RS-232C is used for the communication between the PC and fi rst display via a 15' serial cable, while the CAN bus is used for the LCD displays. - Page 17 FMPHB-21 < 3.3 > AV3.0 Upgrade Options : - BNC ( S-Video + Composite, BNC ) - Audio ( 3.5mm audio jacks for audio in & out, and 2W + 2W speakers ) Audio DVI-D Power S-Video HDMI out - in - in Video PC Page 17 -- ML39V02A -- www.EclipseRackmount.com...
- Page 18 < 3.4 > Options : Touch-Screen & Driver 21.5" USB Touch-Screen Specification Model e-Resistive e-Capacitive TMC2 Multi-touch Technology 5-Wire Resistive Capacitive Projected Capacitive Touch Point Single Single Dual Method Stylus or Finger Finger Finger ≤ 50g / Stylus=R0.8 ≤ 50g ≤...
- Page 19 < 3.4 > Options : Touch-Screen & Driver FMPHB-21 TMC2 Driver Connect the USB cable from the USB port on the LCD to a computer. The touch-screen supports easy Plug-and-Play operations. There is no need to install additional drivers on the computer. <...
- Page 20 < 3.6 > Options : MIL-Type or Lockable Connector Input Part no. MIL Standard MIL - type MS3470W8-33P MIL - DTL - 26482 DC Power Connector ( Male ) MS3470W14-15P MIL - DTL - 26482 ( Male ) There are several additional MIL DC and VGA connector types with varying design characteristics to meet cost considerations and to provide users with the most design fl...
- Page 21 The company reserves the right to modify product specif cations without prior notice and assumes no responsibility for any error which may appear in this publication. All brand names, logo and registered trademarks are properties of their respective owners. Copyright 2013 Austin Hughes Electronics Ltd. & Eclipse Rackmount, Inc. All rights reserved. Manual ML39V02A -- www.EclipseRackmount.com...
