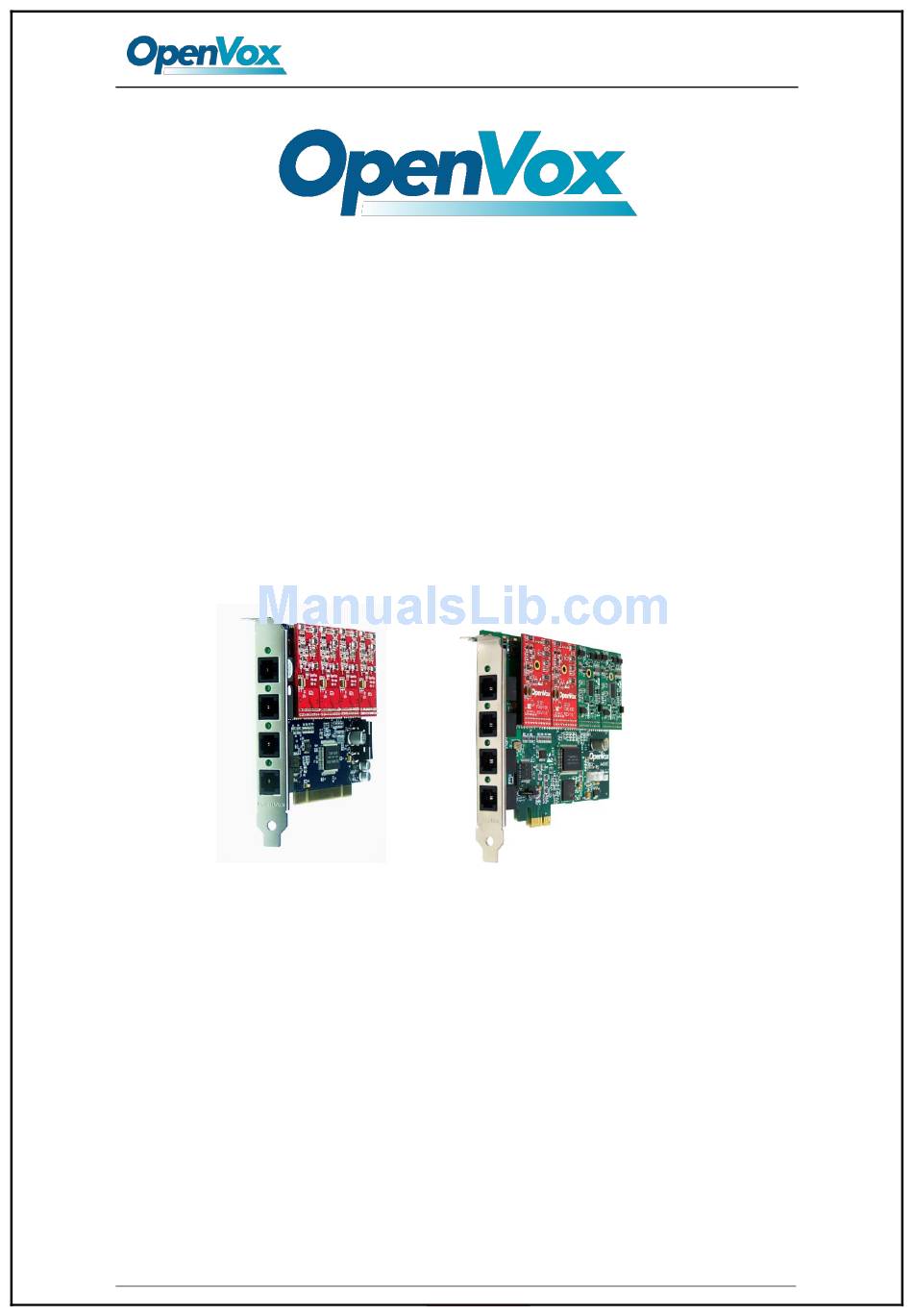

- Page 1 User Manual 深圳开源通信有限公司 OpenVox-Best Cost Effective Asterisk Cards OpenVox A400P/A400E User Manual Written by: James.zhu Email:james.zhu@openvox.cn,zhulizhong@gmail.com Date: 30/12/2008 Version: 0.03 OpenVox Communication Co. Limited. URL: www.openvox.cn...
- Page 2 OpenVox Communication Co. Ltd. Address: F/2,Building No.14,Shangsha Science & Technology Park, No.9283,Binhe Road, Futian District,ShenZhen ,Guangdong 518048,China Tel:+86-755-82535095,82535461,Fax:+86-755-82535174 E-Mail：sales@openvox.cn support@openvox.cn IM for Technical Support: support@openvox.cn,zhulizhong@gmail.com Business Hours: 9:30AM-17:30PM from Monday-Friday URL：www.openvox.cn Thank You for Choosing OpenVox Products! OpenVox Communication Co. Limited. URL: www.openvox.cn...
- Page 3 User Manual Table of Contents Chapter 1 Overview………………………………………………………………… 4 Chapter 2 Software Installation and Configuration ………………… 6 Chapter 3 Hardware Setting ……………………………………………………… 11 Chapter 4 References……………………………………………………………… 12 OpenVox Communication Co. Limited. URL: www.openvox.cn...
-
Page 4: Chapter 1 Overview
Chapter 1 Overview 1. What is A400P/A400E A400P/A400E is a modular analog telephony interface product. It is designed to be hardware compatible with Digium’s TDM400p. A400P/A400E must be used with FXO-100 or FXS-100 together to build a workable system. The FXO-100 and FXS-100 modules are also pin to pin compatible with Digium’s X100M and S100M。... - Page 5 Asterisk provides Voicemail services with Directory, Call Conferencing, Interactive Voice Response, Call Queuing. It has support for three-way calling, caller ID services, ADSI, IAX, SIP, H.323 (as both client and gateway), MGCP (call manager only) and SCCP/Skinny(voip-info.org). OpenVox Communication Co. Limited. URL: www.openvox.cn...
-
Page 6: Chapter 2 Software Installation And Configuration
3. If the card equips FXS modules (green color), plugging the power supply cable (D style) into A400P. If you want to use the timing cable (A400E ver1.1 or higher version) with pri cards, please make sure the timing cable is plugged... - Page 7 Edit /etc/zaptel.conf file, here the example file likes this: Figure 3: zaptel.conf After installing zaptel and asterisk, user executes: modprobe zaptel modprobe wctdm ztcfg –vvvvvvvvvvvv After ztcfg command, system will show some information. OpenVox Communication Co. Limited. URL: www.openvox.cn...
- Page 8 User Manual Figure 4: ztcfg 5) Start asterisk Before starting asterisk, please configure zapata.conf and extensions.conf under /etc/asterisk. zapata-channel.conf is given as bellow: OpenVox Communication Co. Limited. URL: www.openvox.cn...
- Page 9 User Manual Figure 5: Zapata-channels.conf Please make sure that zapata-channels.conf has been included into the zapata.conf. OpenVox Communication Co. Limited. URL: www.openvox.cn...
- Page 10 If user can see the zap channels, which means that the zap channels are loaded successfully. After then, you can make inbound calls and the call will be forward to first FXS channel: Figure 8: inbound calls OpenVox Communication Co. Limited. URL: www.openvox.cn...
-
Page 11: Chapter 3 Hardware Setting
Test environments are: Centos-5.0 Kernel version: 2.6.18-8.el5 Zaptel: 1.4.12.1 Asterisk: 1.4.20.1 Analog Card: OpenVox A400P Some problems with compiling A400P/A400E have been summarized and documented into FAQ of A400P/A400E; please check that under A400P/A400E categories. OpenVox Communication Co. Limited. URL: www.openvox.cn... -
Page 12: Chapter 4 References
User Manual Chapter 4 References www.openvox.cn www.digium.com www.asterisk.org www.voip-info.org www.asteriskguru.com OpenVox Communication Co. Limited. URL: www.openvox.cn...
