Leviton eXtreme 6+ Connector 61110-Rx6 Specifications

Component
Specifications

APPLICATION

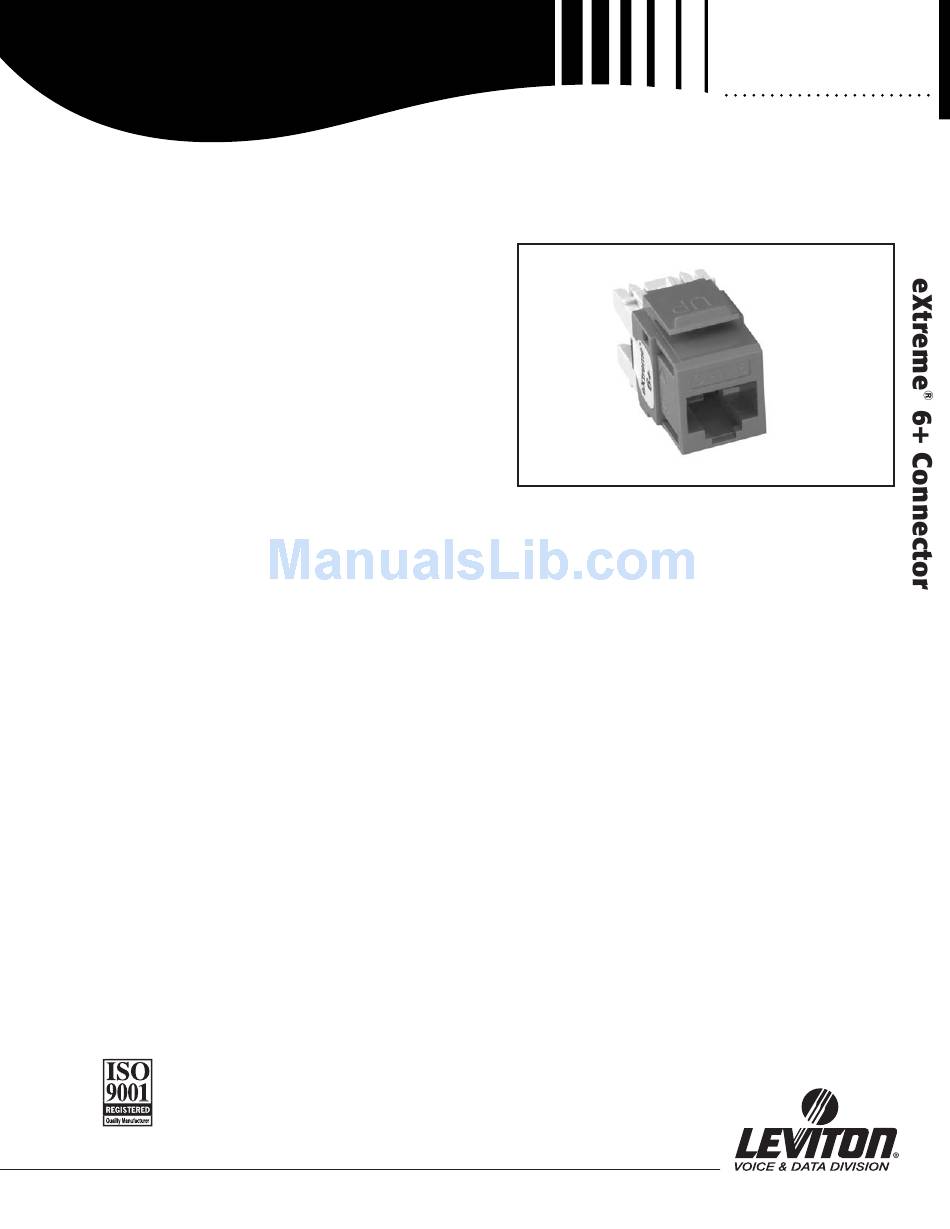

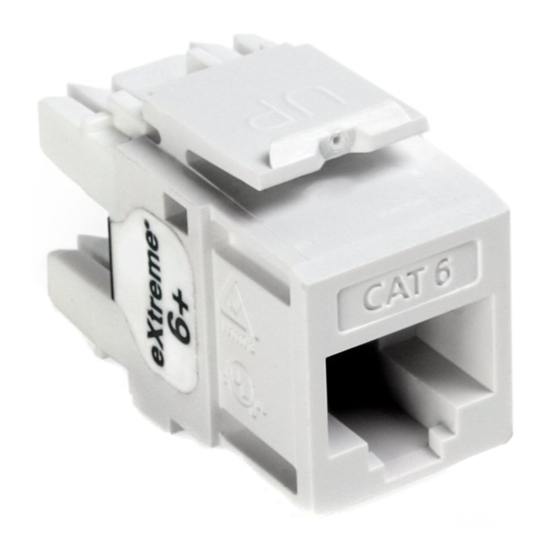

Leviton's eXtreme ® 6+ Connector is designed to be used with all
Leviton QuickPort ® compatible products. The connectors include
Leviton's patented "Retention Force Technology" (RFT) which
promotes consistent performance over the life of the system.
Includes unique pair separation towers allowing for quicker and
easier terminations. The connector is configured in a 180°
configuration such that the punch field is in the back, allowing for
rear termination.

STANDARDS COMPLIANCE

eXtreme ® 6+ system components meet or exceed the
requirements for channel and component-level performance for
TIA/EIA Category 6, cULus Listed, NOM and ACA.

PHYSICAL SPECIFICATIONS

Dimensions: .901"H x .575"W x 1.246"D
Materials: Connector body is high-impact, fire-retardant
plastic rated UL 94V-0. Spring wire contacts
are high quality copper-based alloy, plated
with 50 micro-inches of gold over 100 micro-
inches of nickel for lowest contact resistance,
maximum life.

DESIGN CONSIDERATIONS

• Use in any QuickPort ® housing to support Category 6 UTP
connectivity in surface mount, flush mount, or modular
furniture outlets and field configurable panels.
• Can be used in conjunction with other QuickPort
modules for voice/data and video applications over UTP, coax
and fiber.
• To identify ports: use different colored modules for each
application (full selection of TIA/EIA-606 compatible colors—
13 available).

INSTALLATION NOTES

• Designed for cable termination with a 110 punchdown tool.
• Detailed installation instructions are included in the standard
pack.
• IDCs arranged to minimize untwisting.
For Technical Support Call 1-425-485-4288; in USA call 1-800-824-3005.
Spec sheets and updates are also available at www.levitonvoicedata.com.
Tel: 1-800-722-2082 / 1-425-485-4288 • Fax: 1-425-483-5270 • Int'l Fax: 1-425-485-9170 • GSA Schedule Available
eXtreme ® 6+ Connector
® snap-in
2222 – 222nd St. SE • Bothell, WA 98021 USA
See ELECTRONIC FILES for CAD files (.DXF, .DWG, MS-DOS.EPS) on disk

WARRANTY INFORMATION

For a copy of Leviton product warranties, log on to
www.levitonvoicedata.com/warranty.
For ELECTRONIC Typical Specs see (.TXT) file on disk.

TYPICAL SPECIFICATION

The modular connector shall meet or exceed the requirements
for channel and component-level performance described in
TIA/EIA-568-B.2-1 Category 6
connector shall be individual snap-in style. The connectors shall
also be in compliance with all National Electrical Codes;
compliant with FCC Part 68; UL listed; and independently
verified. In addition to Category 6 compliance, the connector
shall have the ability to support high megabit and shared-sheath
applications. All plastics used in construction of the connector
bodies shall be fire-retardant with a UL flammability rating of
94V-0. Termination of all connectors shall be 110-type insulation
displacement connectors (IDC). The connector shall provide a
ledge directly adjacent to the 110-style termination against
which the wires can be directly terminated and cut in one action
by the installation craftsperson. Connector wiring is universal and
will accommodate installation color codes for T568A and T568B
wiring schemes. The termination field shall be in the rear for
easy access. The modular connector shall fit all other installed
telecommunications wallplates, outlets and field-configurable
patch panels and patch blocks. Colors and configurations to be
specified per schedule on plan.
3880-DIN
Part Number
61110-Rx6
standards. The modular
