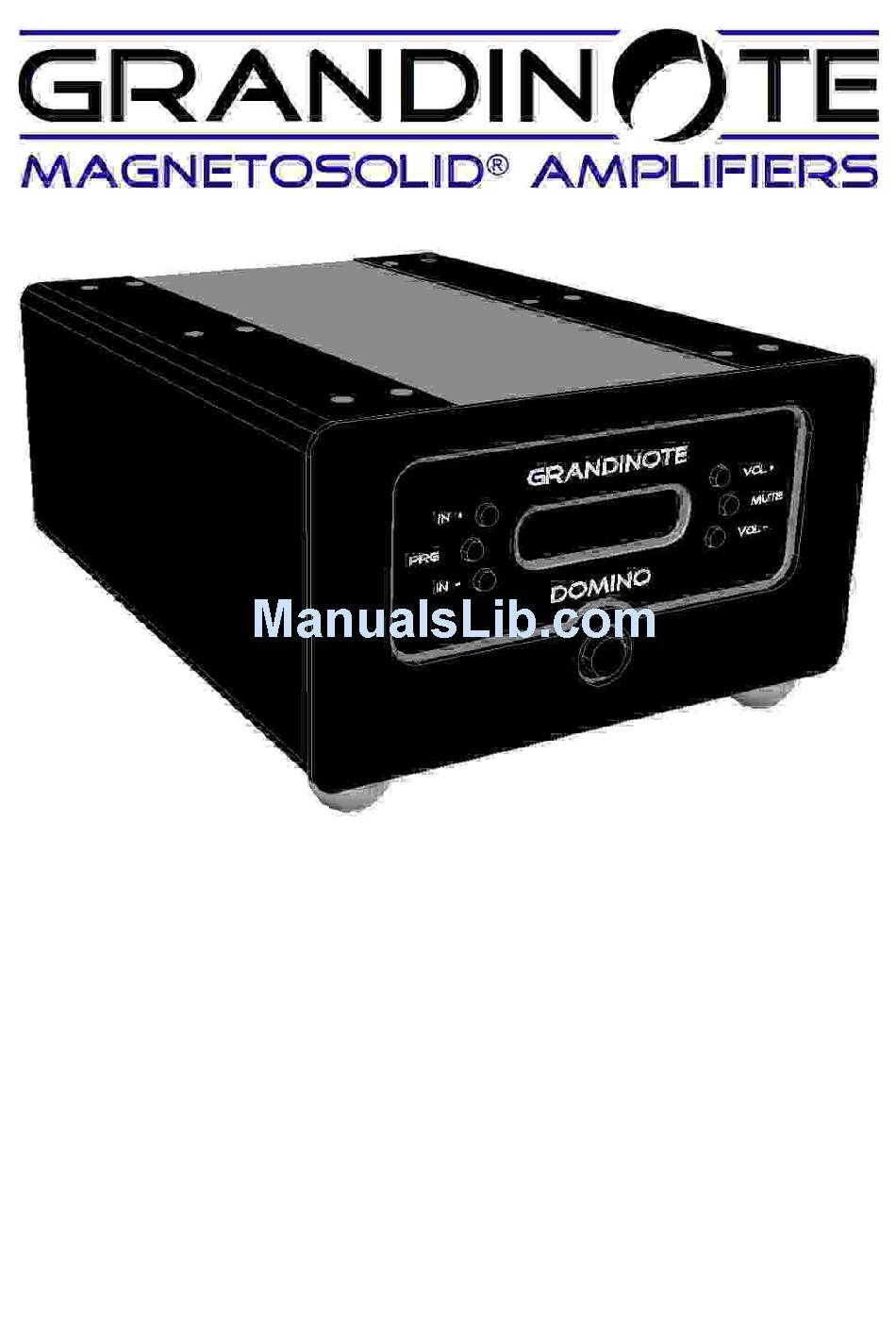

- Page 1 Pag. 1 di 16...
- Page 2 – user manual index introduction Pag. 3 product descrition Pag. 3 specifications Pag. 4 w arnings Pag. 5 Positioning Pag. 6 Connections - Rear Panel Pag. 7 front panel Pag. 8 Remote control Pag. 9 settings Pag. 10 Input's volume Pag.
-
Page 3: Product Descrition
These and other qualities are the result of studies and extensive research by Grandinote. product descrition Grandinote domino is a audio line preamplifier. -
Page 4: Specifications
No feedback Full dualmono Weight 16kg W=318 x H=196 x L=408 [mm] Voltage power supply 230V Absorption 30W note: These specifications will can change without the obligation to report, by Grandinote. Pag. 4 di 16... - Page 5 – user manual w arnings For the correct and sure use of this product, Grandinote recommends the study and the application of this warning list. Don't open the device. Don't turn off and turn on quickly the device.
- Page 6 – user manual positioning In the ”picture 1” we see the correct positioning of the device. The Domino's red rappresentations indicate the no good positioning for the sound. Especially in front of the loudspeakers. In the rear of the loudspeakers we keep the best sound performances.
-
Page 7: Connections - Rear Panel
– user manual Connections - Rear Panel In the picture 2, we see the device's input-output connectors. Input one, two and input three, called in1, in2 ed in3, are unbalanced RCA. The other inputs, in4, in5 ed in6 are balanced XLR (full balanced). -
Page 8: Front Panel
– user manual Front panel In the picture 3, we see the device's front panel. The display is in the middle of panel, below it the power supply switch. (Don't turn off and turn on quickly the device) To the sides of display we see six buttons for the total control to the device. -
Page 9: Remote Control
– user manual Remote control In the picture 4, we see the device's remote control. The meaning of the keys on the remote control: The up key: turns on the display (only if the display is off) ... - Page 10 – user manual settings Going in program settings, it will be possible to personalize some functions. To start program setting, press PRG key. The display visualize the first setting. Press PRG again, for to confirm and pass to the second setting, until the last setting.
-
Page 11: Input's Volume
– user manual Input's Volume The first 6 settings are for correlate a volume level to every input. If volume level 20 is correlated to input 3, every time the input become 3, the device slowly increases the volume, arriving to 20. -
Page 12: Black Display
– user manual black display This function is for the turn off the display in automatic, if the display don't changes for some seconds. When the utente press a button, the display turns on. So, when the display don't will change again, the display will turn off again. - Page 13 – user manual Balance Balance is for different level of volume between the two channels. Press PRG, to visualize on the display: The up rappresentation is for the same level for the two channels: the balance is totally excluded.
-
Page 14: Remote Control Off
– user manual Remote control off This setting excludes the remote control reception. Press PRG, to visualize on the display "TELE" write: By IN+ and IN- keys on change the “ON” / “OF” status. The next pres on PRG key confirms and leads to the next setting. -
Page 15: Increase Unbalanced Rca Inputs
– user manual Increase unbalanced RCA inputs This setting increases the number of unbalanced RCA inputs. Over the setting it's necessary to use a XLR/RCA adapter. Press PRG, to visualize on the display "RCA" write: By IN+ and IN- keys on change the value, from 3, to the max of 6. - Page 16 Grandinote di magri massimiliano Via Mangiarotti, 20 27042 Bressana Bottarone (pv) -it al y- P.IV A: 02083730180 COD. FISCALE: MGRMSM73L10B201W COD. IBAN: IT 40 M 08386 83800 000000380994 www.grandinote.it info@grandinote.it postmaster@grandinote.it Pag. 16 di 16...
