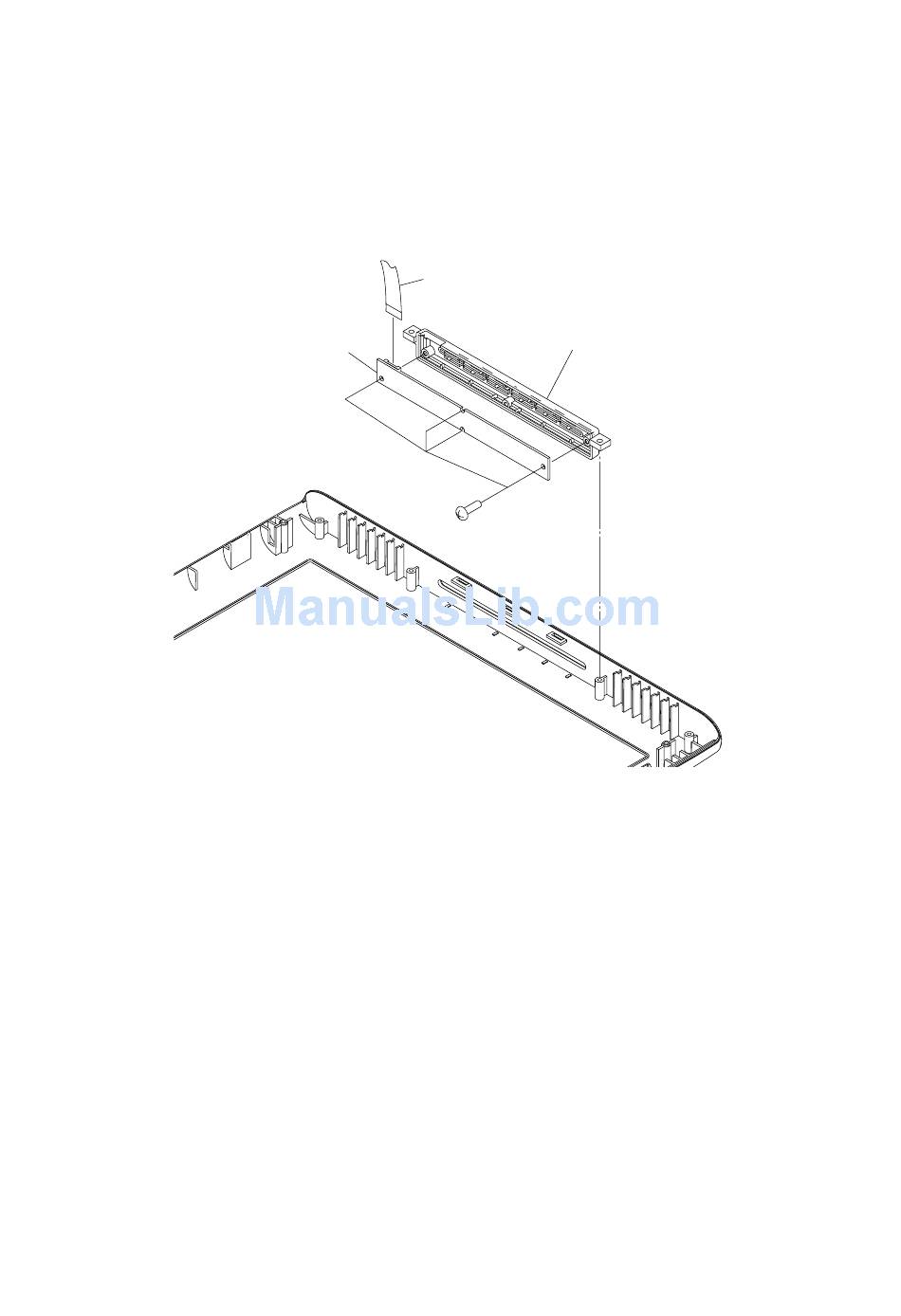

8. Removing the Key board
1) Remove the back cover, stand and back cabinet. (Refer to items 1 and 2.)
2) Remove the Main (Analog) board, Main (Digital) board, Inverter unit and panel bracket with TFT panel.
(Refer to items 3,4 and 7.)
3) Remove 4 screws, then remove the Key board from the function key.
4) Disconnect the FFC from the Key board.
FFC
Key board
BITTB
3x6
Illustration describes for model 14JL7
– 24 –
Function key
