7-2. 20JL7E/H/R

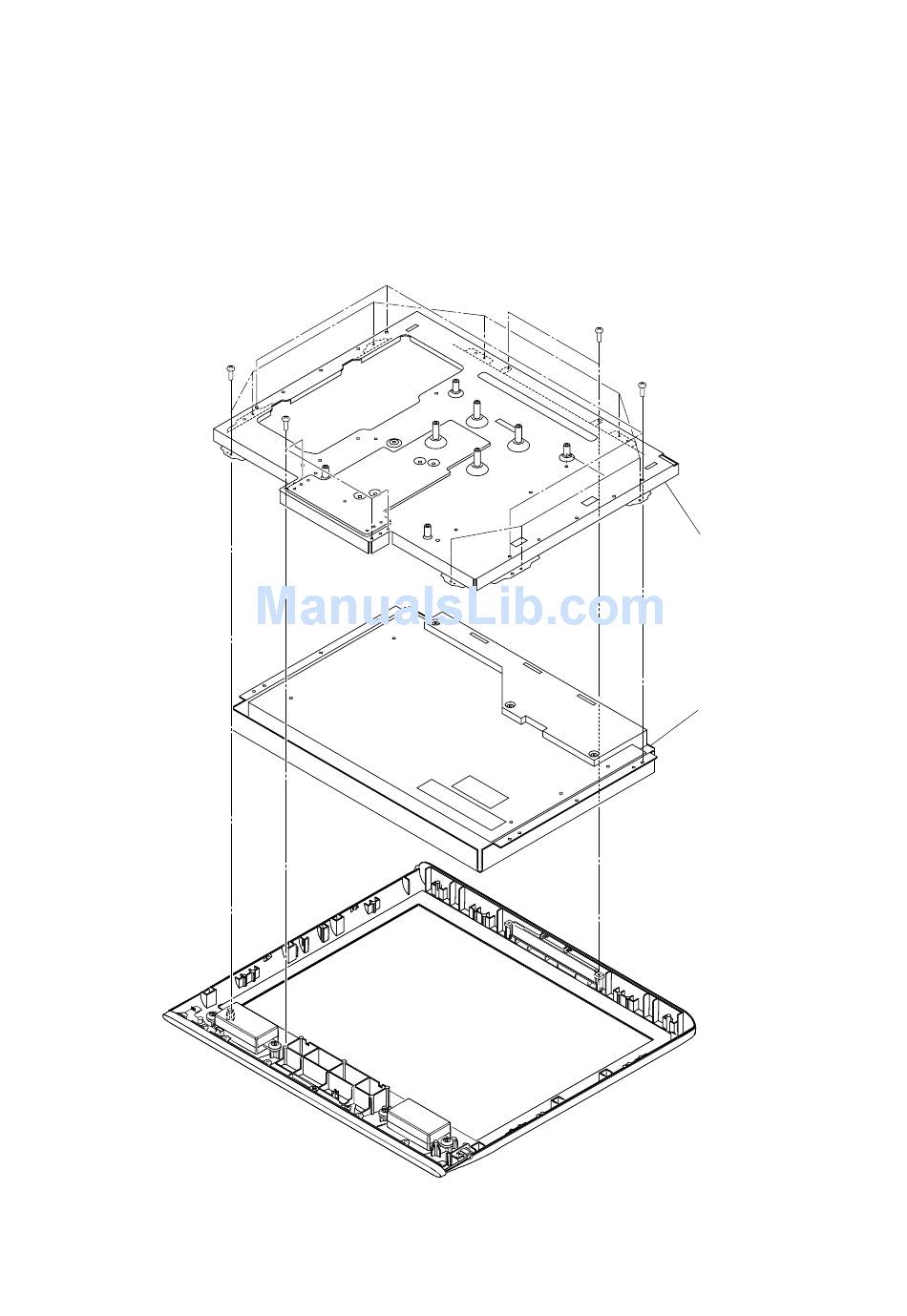

1) Remove the back cover, stand and back cabinet. (Refer to items 1 and 2.)
2) Remove the Main (Analog) board, Main (Digital) board and Inverter unit. (Refer to items 3 and 4.)
3) Remove 4 screws, 8 screws and 2 screws, then remove the panel bracket with TFT panel.
4) Remove 4 screws, then remove the TFT panel.
BITTB
3x12
BITTB
3x12
– 23 –
PP 4x6
Panel bracket
TFT panel
