Removing the Earphone board

1) Remove the back cover, stand and back cabinet. (Refer to items 1 and 2.)

2) Remove the Earphone board.

3) Disconnect the FFC from the Earphone board.

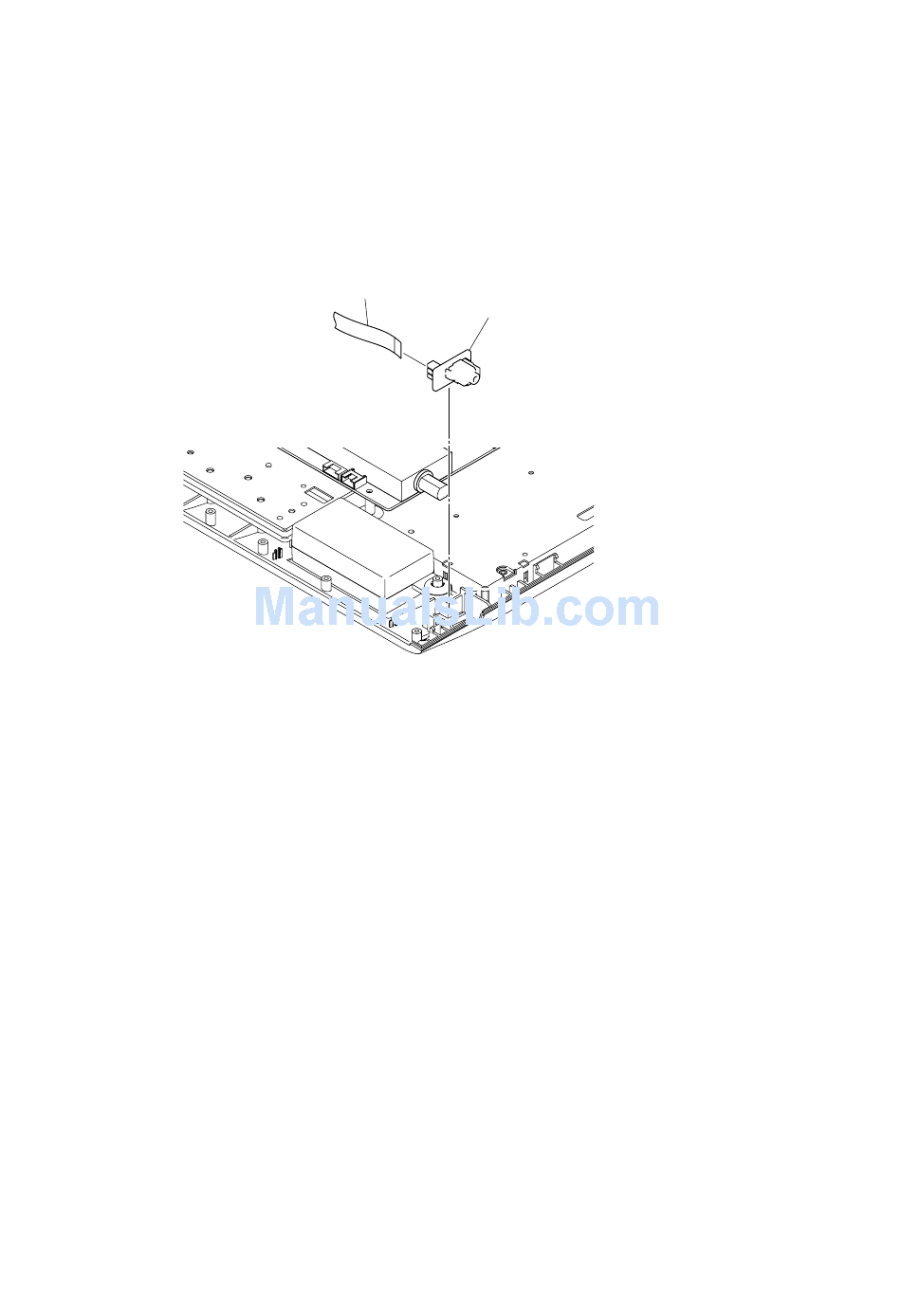

FFC

Earphone board

Illustration describes for model 14JL7

– 21 –
