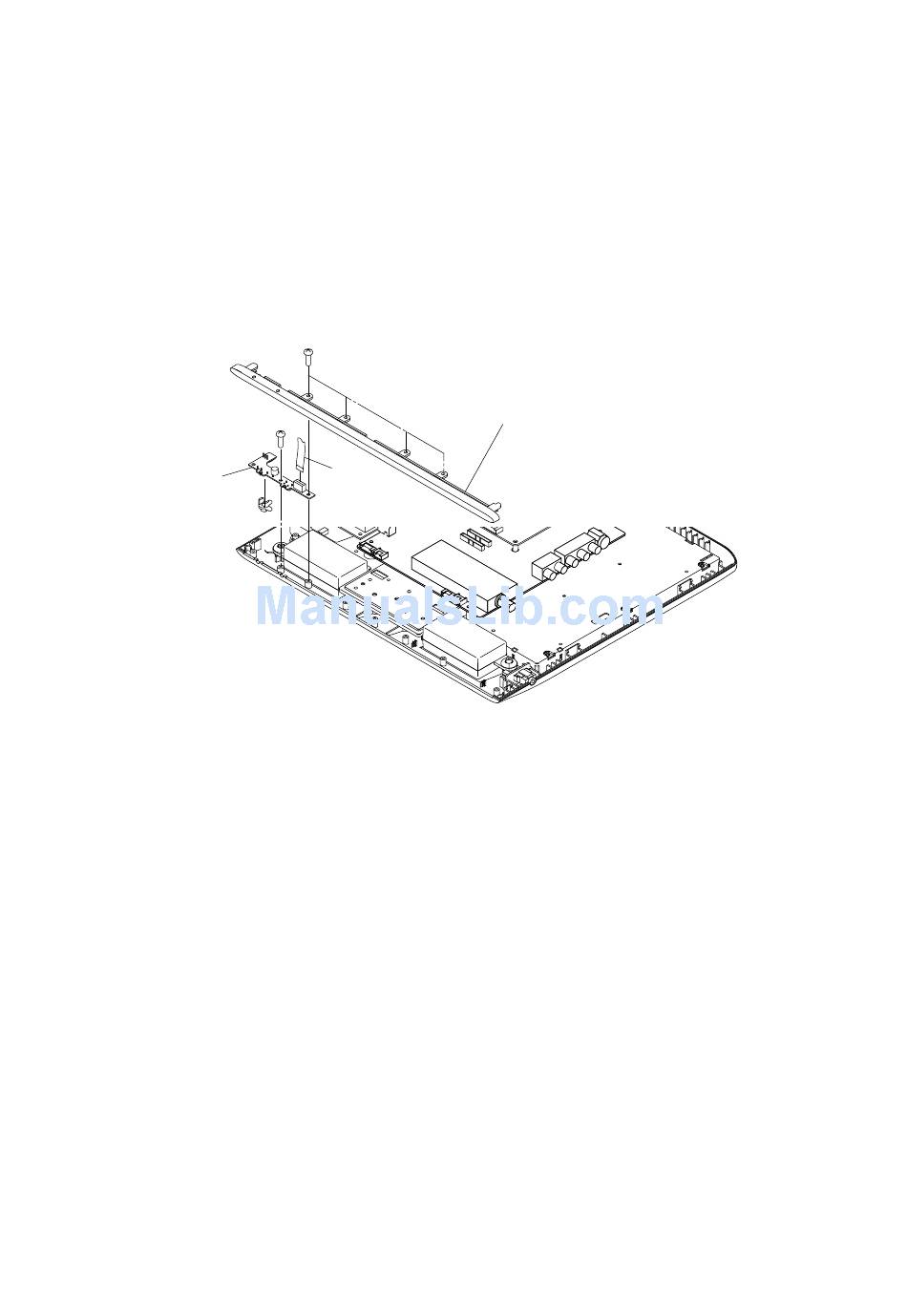

Removing the IR board

5-1. 14JL7E/H/R

1) Remove the back cover, stand and back cabinet. (Refer to items 1 and 2.)

2) Disconnect 1 wire harness.

3) Remove 4 screws, then remove the LED lens trim.

4) Remove 1 screw, then remove the IR board.

IR Board

PAN HEAD

3x8

BITTB

3x6

FFC

LED Lens trim

– 19 –
