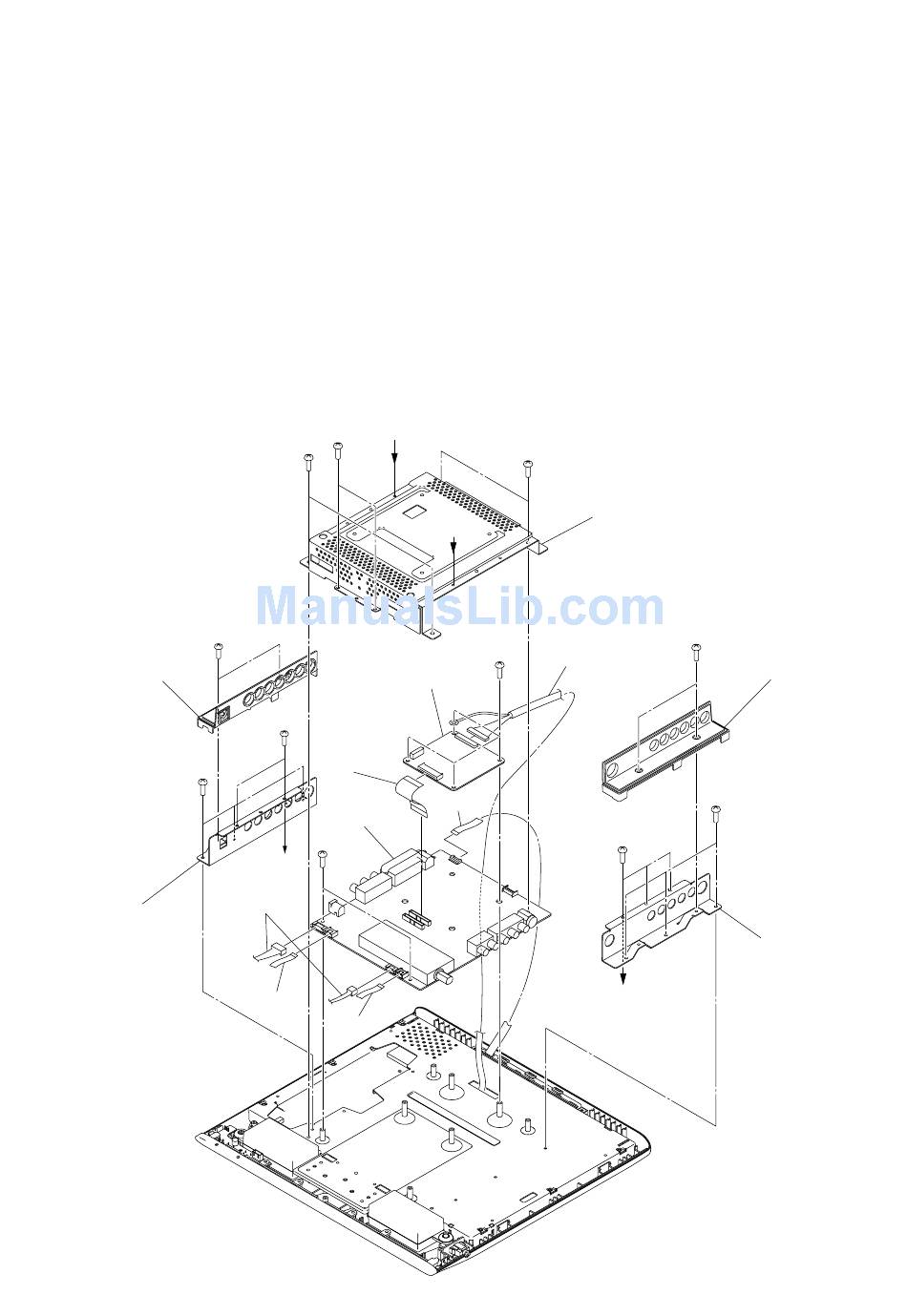

3. Removing the Main (Analog) and Main (Digital) boards
3-1. 14JL7E/H/R
1) Remove the back cover, stand and back cabinet. (Refer to items 1 and 2.)
2) Remove the Inverter unit. (Refer to item 4.)
3) Remove 4 screws, then remove the I/O cover L and I/O cover R.
4) Remove 6 screws, then remove the I/O bracket L.
5) Remove 5 screws, then remove the I/O bracket R.
6) Disconnects 2 wire harnesses and 3 FFC [A].
7) Remove 6 screws, then remove the A/D shield cover.
8) Remove 4 screws, and disconnect 1 FFC [B] and 1 cable on the Main (Digital) board, then remove the Main
(Digital) board.
9) Remove 2 screws, then remove the Main (Analog) board.
