Mechanical Disassembly - Toshiba 14JL7E Service Manual

• Note: Be sure to lay down the main body (by placing its LCD panel
downward) for disassembly using the electric conducting
cushion.
The illustrations of disassembly describes for model 14JL7.

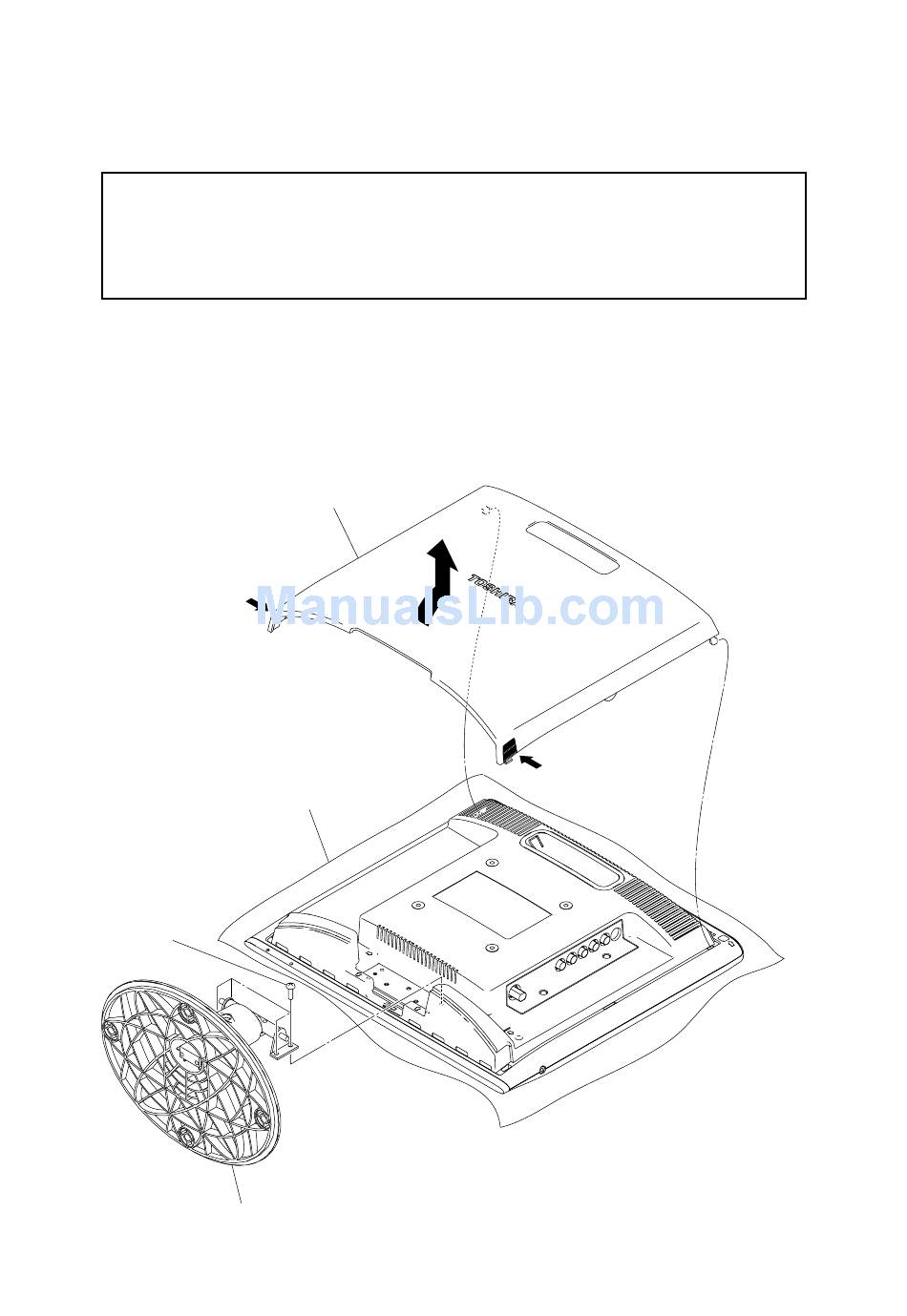

1. Removing the back cover and stand
1) Lay down the unit while placing its LCD panel downward.
2) Press the A portions (anti-slip parts) at the bottom on both sides and pull them, then remove the back cover
toward by arrow direction.
3) Remove 4 screws, then remove the stand.
A portion
Electric conducting cushion
BTB 4x12
Stand

MECHANICAL DISASSEMBLY

Back cover
– 13 –
A portion
Illustration describes for model 14JL7
