Exploded Views - Sony TAM-100 Service Manual

Ver 1.1 2001.06
QQ
3 7 63 1515 0
NOTE:
• -XX, -X mean standardized parts, so they may have
some difference from the original one.
• Items marked "*" are not stocked since they are
seldom required for routine service. Some delay
should be anticipated when ordering these items.
• Color Indication of Appearance Parts Example:
KNOB, BALANCE (WHITE) . . . . (RED)
Â
Parts color Cabinets color
8
7
TE
L 13942296513
#2
3
10
T70
1
#3
Ref. No. Part No. Description
1 3-034-197-01 FOOT, RUBBER
2 3-034-193-01 CABINET (LOWER) (FORMER TYPE)
2 3-034-193-11 CABINET (LOWER) (NEW TYPE)
* 3 A-3062-589-A MAIN BOARD, COMPLETE (NEW TYPE)
www
* 3 A-3072-702-A MAIN BOARD, COMPLETE (FORMER TYPE)
* 4 1-673-413-11 KEY BOARD MK2 (FORMER TYPE)
* 4 1-682-078-11 KEY BOARD MK2 (NEW TYPE)
.
5 1-771-695-11 SWITCH, RUBBER KEY
6 3-034-194-01 BUTTON
7 3-034-192-01 CABINET (UPPER) (FORMER TYPE)
7 3-034-192-11 CABINET (UPPER) (NEW TYPE)
http://www.xiaoyu163.com

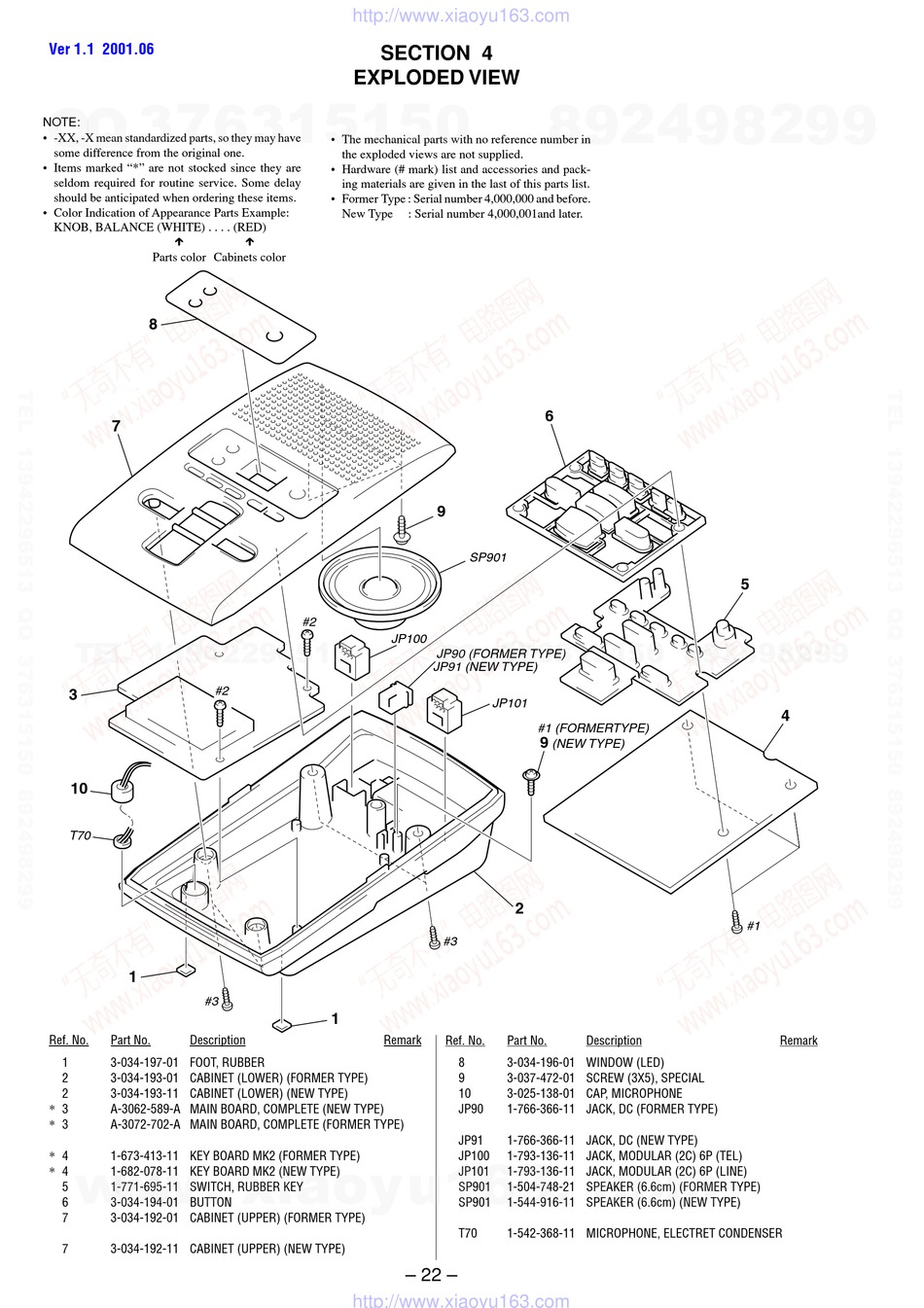

SECTION 4
EXPLODED VIEW
• The mechanical parts with no reference number in
the exploded views are not supplied.
• Hardware (# mark) list and accessories and pack-
ing materials are given in the last of this parts list.
• Former Type : Serial number 4,000,000 and before.
New Type : Serial number 4,000,001and later.
Â
#2
JP100
1
Remark
x ao u163
y
i
– 22 –
http://www.xiaoyu163.com
2 9
8
6
9
SP901
Q Q
3 6 7 1 3 1 5
JP90 (FORMER TYPE)
JP91 (NEW TYPE)
JP101
#1 (FORMERTYPE)
9
(NEW TYPE)
2
#3
Ref. No. Part No. Description
8 3-034-196-01 WINDOW (LED)
9 3-037-472-01 SCREW (3X5), SPECIAL
10 3-025-138-01 CAP, MICROPHONE
JP90 1-766-366-11 JACK, DC (FORMER TYPE)
co
JP91 1-766-366-11 JACK, DC (NEW TYPE)
JP100 1-793-136-11 JACK, MODULAR (2C) 6P (TEL)
JP101 1-793-136-11 JACK, MODULAR (2C) 6P (LINE)
.
SP901 1-504-748-21 SPEAKER (6.6cm) (FORMER TYPE)
SP901 1-544-916-11 SPEAKER (6.6cm) (NEW TYPE)
T70 1-542-368-11 MICROPHONE, ELECTRET CONDENSER
9 4 2 8
5
0 5 8 2 9 9 4 2 8
4
#1
Remark
m
9 9
9 9
