Vollrath TSI7001 Operator's Manual

Countertop sandwich press
Hide thumbs Also See for TSI7001:

Advertisement

Table of Contents

See also: Operator's Manual
Item
Model
40794
TSI7001 Sandwich Press, Ribbed Plate, Cast Iron
40795

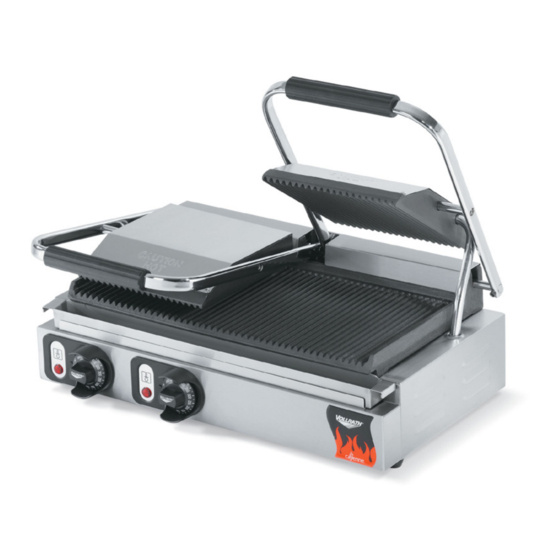

TSI8002 Sandwich Press, Ribbed Plate, Cast Iron
40794-C TSI7001 Sandwich Press, Ribbed Plate, Cast Iron
40795-C TSI8002 Sandwich Press, Ribbed Plate, Cast Iron
Thank you for purchasing this Vollrath Counter Top Cooking Equipment. Before operating the unit, read and familiarize yourself with the following
operating and safety instructions. SAVE THE ORIGINAL BOX AND PACKAGING. Use this packaging to ship the unit if repairs are needed. SAVE THESE
INSTRUCTIONS FOR FUTURE REFERENCE.
COUNTERTOP SANDWICH PRESS
Description
Operator's Manual
Voltage
Watts
120V
1800
220V
3080
120V
1800
220V
3080
Item No. 2350014-1 en Rev 06/14
ENGLISH
Amps
Plug
15 Amps
5-15P
14 Amps
6-15P
15 Amps
5-20P
14 Amps
6-20P

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TSI7001 and is the answer not in the manual?

Questions and answers

Related Manuals for Vollrath TSI7001

Summary of Contents for Vollrath TSI7001

  • Page 1 6-20P Thank you for purchasing this Vollrath Counter Top Cooking Equipment. Before operating the unit, read and familiarize yourself with the following operating and safety instructions. SAVE THE ORIGINAL BOX AND PACKAGING. Use this packaging to ship the unit if repairs are needed. SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE.

  • Page 2: Features And Controls

    This sandwich press is a medium duty appliance capable of a wide variety of aFety recaUtionS applications. The temperature is thermostatically controlled. The temperature range for non-coated surface models is between 120°F (49°C) and 550°F (288°C). The thermostat is also the ON/OFF switch. An indicator lamp To ensure safe operation, read the following statements and adjacent to the thermostat dial indicates when the elements are heating.

  • Page 3: Operation

    leaning PILOT LIGHT. This light indicates the element is heating. Once the set temperature has been reached the light will go out. This light indicates To maintain the appearance and increase the service life, clean your unit that the element is heating. Once the temperature has been reached daily.

  • Page 4: Troubleshooting

    There are no user serviceable parts within this appliance. To avoid serious injury or damage, never attempt to repair the unit or replace a damaged power cord yourself. Do not send units directly to the Vollrath Company. Please contact the qualified professional repair service listed below.
  • Page 5 electrical draWing - c ~ 40794, 40795, 407941-c 40795-c oUntertop andWich reSS odelS 208-240V ~ 2700-3600 Watt 120V ~ 1800Watt Callout Description Callout Description Thermostat Control Thermostat Control Heating Element, Top, 120V ~ 810 Watt Heating Element, Top, 208-240V ~ 860W Max Heating Element, Bottom, 120V ~ 990 Watt Heating Element, Bottom, Pilot Light, 120V, Amber...
  • Page 6 Spare partS liSt - c ~ 40794 40794-c oUntertop andWich reSS odelS Callout Part Number Description XAA0005 Power Cord, 120V, NEMA 5-15P Plug 1786001 Power Cord, 120V, NEMA 5-20P Plug (Canada only) XAA0012 Power Cord Restraint XTSI2004 Foot, Rubber XTSI2030 Top Heating Element, 120V ~ 810 Watt XTSI2006 Top Plate, Ribbed, Non-Coated...
  • Page 7 eXploded vieW - c ~ 40794 40794-c oUntertop andWich reSS odelS ’ peratOr anual...
  • Page 8 Bottom Heating Element, 208-240V 940W Max XTSI3019 Handle, Steel XTSI3020 Handle Grip, Plastic XTSI2018 Handle Spring XTSI2023 Brass Saddle Clamp XTSI3006 Bottom Plate XTSI3021 Hinge Axle, Rear Decal, Vollrath Bottom Cover, Vented Bottom Cover, Non-Vented Wire Brush ’ peratOr anual...
  • Page 9 eXploded vieW - c ~ 40795 40795-c oUntertop andWich reSS odelS 6 11 ’ peratOr anual...

  • Page 10: Warranty

    For ollrath This warranty does not apply to products purchased for personal, family or household use, and The Vollrath Company LLC does not offer a written warranty to purchasers for such uses. The Vollrath Company LLC warrants each of its products listed below against defects in materials and workmanship for the applicable period provided below. All other products manufactured or distributed by The Vollrath Company LLC are warranted against defects in materials and workmanship for a period of one year.

This manual is also suitable for:

Tsi8002
