Summary of Contents for Laser STB-HDM2000
-

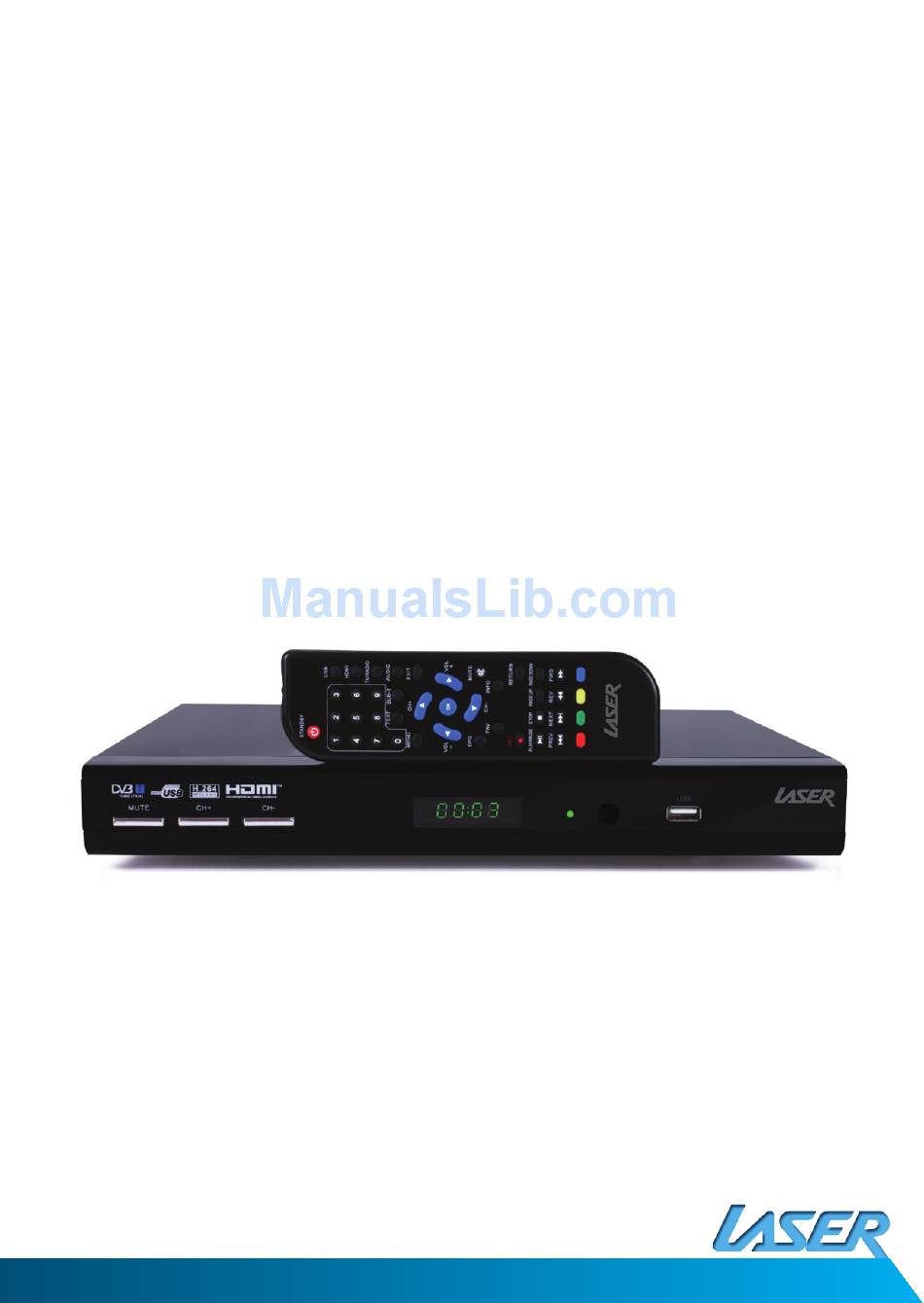

Page 1: User Manual
STB-HDM2000 User Manual Please read carefully before use... -
Page 2: Important Safety Instructions
STB-HDM2000 User Manual IMporTanT SafeTy InSTrucTIonS Please read carefully and keep for future reference CAUTION! Do not open. Risk of electric shock! No parts can be repaired by the end-user. Only qualified personnel can repair and maintain this product. If the electric cord is damaged, it must be replaced by the manufacturer or qualified after-sales personnel. -
Page 3: Table Of Contents
InTroDucTIon Thank you for choosing this quality Set top box from Laser Co Australia. This device enables you to receive digital free-to-air channels. TaBle of conTenTS Front Panel and Rear Panel ...4 Remote Controller ...5 First time installation ...6 System Setup ...6 Video Setting ...7... -
Page 4: Front Panel And Rear Panel
STB-HDM2000 User Manual fronT panel anD rear panel Front Panel 1. MUTE 2. CH+ 3. CH- 4. LED DISPLAY Rear Panel 1. Antenna Input 2. Spare Antenna Output 3. Video Output 4. HDMI Output 5. STANDBY INDICATOR 6. REMOTE CONTROL SENSOR 7. -
Page 5: Remote Controller
reMoTe conTroller STANDBY: Press to place the unit in standby mode. NUMBER KEYS:Used to select channel numbers or input numbers in menus. TEXT: Used to open teletext OSD display if teletext available in the broadcast stream. MENU: Display main menu on TV screen, press again to exit the menu. -
Page 6: First Time Installation
STB-HDM2000 User Manual fIrST TIMe InSTallaTIon Start channel installation. For first time use, the automatic installation message will appear on screen. a. Select the menu display language. b. Select the reception country. c. Then, select your time zone . d. Please keep the LCN (Logical Channel Number) option ON (activated), so that the channels can be classified in the correct order. -
Page 7: Video Setting
the up and down arrow keys to select the level of program rating to be blocked. All programs with this rating and above will require the PIN code to view the program. Change Password To change your password (PIN Code) follow these simple steps: 1. -
Page 8: Audio Setting
STB-HDM2000 User Manual Display problem in HDMI mode If you have selected a HDMI resolution which is not supported by your TV (for example, you have selected 1080i while your TV supports 720p resolution only), a black screen will appear. To solve this problem, press the HDMI button on the remote to change the HDMI resolution. -
Page 9: Favourites
faVourITeS This function allows you to define a list of favourite channels. When you select the menu CHANNEL EDIT, a message will appear to ask you to select whether you want to create a favourite list for DVB-T channels, or for radio stations. a. -
Page 10: Recording
STB-HDM2000 User Manual recorDIng anD prograM reMInDer Record live TV Simply use the “REC” button while viewing the current channel. Schedule record / Reminder Highlight your chosen program and press “OK”. Confirm the schedule recording/ reminder settings and press “OK” to confirm. -
Page 11: Trouble Shooting
TrouBle SHooTIng Symptom LED on front panel does not display No picture or sound Black and white screen or V-Hold The remote controller is not working No Power possible cause AC power cord disconnected Incorrect connection of the video/audio output to TV input terminal Incorrect Connection of antenna cable... - Page 12 STB-HDM2000 Digital Set Top Box For technical support please visit www.LaserCo.net...
