MP3/MP4/WMA Player
Instruction Manual
Please read this manual carefully before operation.
MP3/MP4/WMA Přehrávač
Návod k obsluze
Přečtěte si prosím tento návod ještě dříve, než začnete s přístrojem pracovat.
MP3/MP4/WMA Prehrávač
Návod na obsluhu
Prečítajte si, prosím, tento návod ešte skôr, než začnete s prístrojom pracovať.
MP3/MP4/WMA Lejátszó
Használati útmutató
Kérjük olvassa el ezt a használati útmutatót mielőtt a készüléket használni kezdi.
Odtwarzacz MP3/MP4/WMA
Instrukcja obsługi
Przed rozpoczęciem używania urządzenia zapoznaj się z jego instrukcją obsługi.
Advertisement
Table of Contents
Related Manuals for Sencor SFP 5660
Summary of Contents for Sencor SFP 5660
-

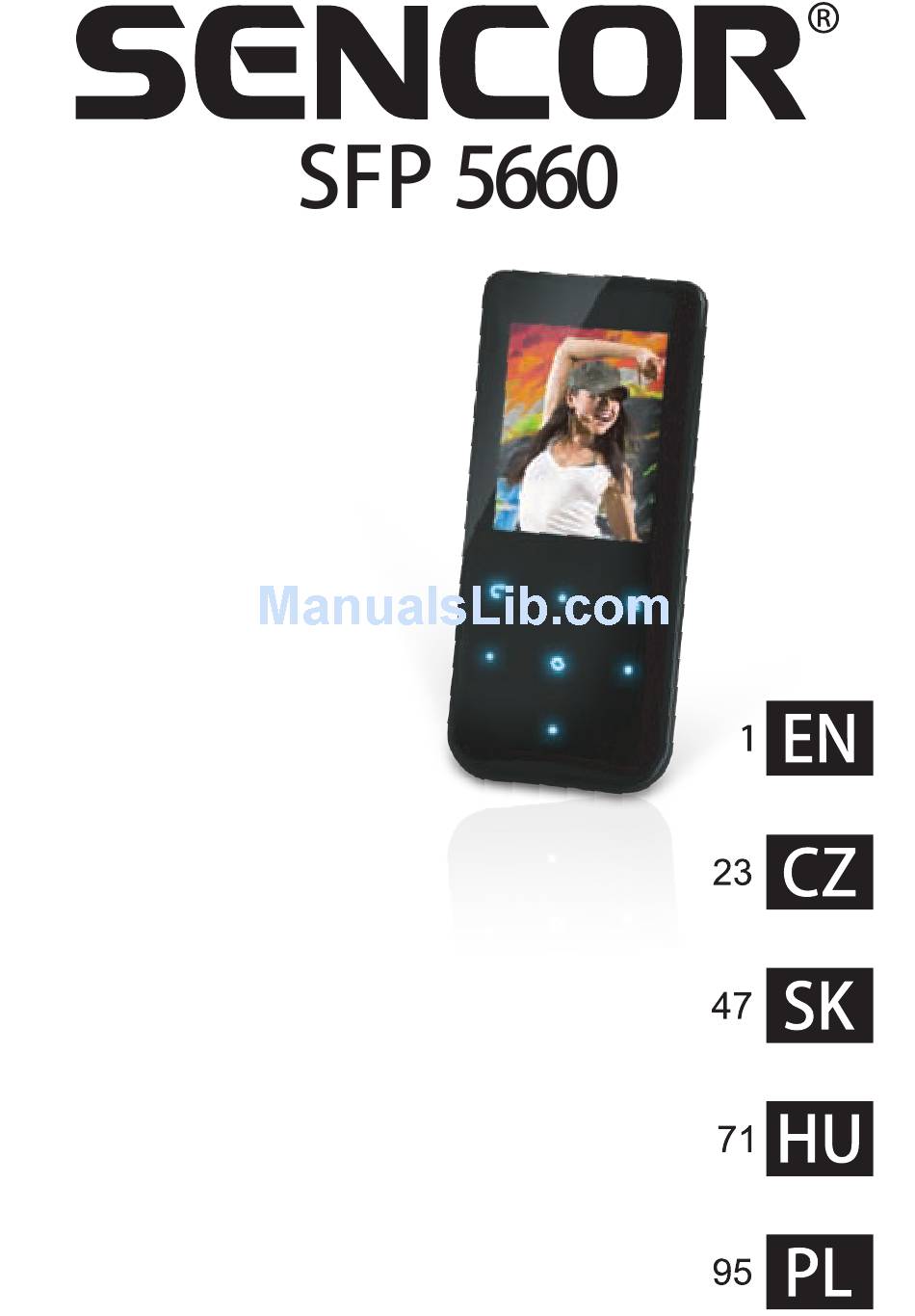

Page 1: Instruction Manual
MP3/MP4/WMA Player Instruction Manual Please read this manual carefully before operation. MP3/MP4/WMA Přehrávač Návod k obsluze Přečtěte si prosím tento návod ještě dříve, než začnete s přístrojem pracovat. MP3/MP4/WMA Prehrávač Návod na obsluhu Prečítajte si, prosím, tento návod ešte skôr, než začnete s prístrojom pracovať. MP3/MP4/WMA Lejátszó... -
Page 2: Table Of Contents
Contents Precautions ........................2 Characteristics........................2 Player description ......................3 Touch key function description: ..................4 Forward / backward under movie playing status: ..........4 Finger Touch operation: ....................4 Main Menu ........................5 Basic Operation........................ 5 Power On/Off ....................5 Hold On/Off.................... -
Page 3: Precautions
Precautions This manual contains important safe measurements and correct operational information, so please read all the information carefully before you use the device in order to avoid any unexpected accidents. Do not put the player in high temperature, humidity or dust place (over 40℃), especially not in the cars with window closed in summer. -
Page 4: Player Description
Multi music formats as MP3, WMA and WAV, good timber and real audio frequency display Movie function, full-screen play display High-definition JPEG picture browse function Microphone record Energy-saving setting, brightness adjustable Good timber, support 3D EQ surrounding effect, customized EQ ... -
Page 5: Touch Key Function Description
Touch key function description: “vol+/up”: Volume + and moving up “vol-/down”: Volume + and moving down “ ”: Confirm / Enter into submenu, play and pause “ ”: Short touch: Exit to superior menu / Back “ ” : Setting options under different functions, music, movie etc. “Next/Forward”: Next Long touch “Next/Forward”: Fast forward playing “Prev/backward“... -
Page 6: Main Menu
Main Menu Basic Operation Power On/Off Long pressing the power keys for three seconds, the MP4 player will be powered on. Long pressing the power keys for three seconds when MP4 player is on, the player will be powered off. -
Page 7: Hold On/Off
*Important: If your MP3 player is blocked or doesn’t work, please Reset it and after two seconds, restart it again. Hold On/Off Hold On: Touch the “setting option” and keep touching key for 2 second, the lock icon will show on the screen. Hold Off: Touch the “setting option”... -
Page 8: Video
Video Select “Video” in main menu and touch “ ” to enter into Video playback status. Touch “ ” key to exit to main menu. Select “FM” in main menu and touch “ ” to enter into FM radio status. Then touch “ ”... -
Page 9: Photo
Memory: If you want to save FM channel, touch “ ” to exit to FM submenu and select “Mem” and touch play key to choose channel to save the FM channel. Preset: Touch “ ” to enter into “Pres” , you will see the FM channel you preset or saved before, touch “Next/Forward”... -
Page 10: Record
When you are reading the book, touch “ ” to save the bookmark, there are total three bookmarks can be saved. Touch “ ” to confirm and save bookmark in the current page. Short touch “ ” to exit saving. Touch “Prev/backward”... -
Page 11: Settings
For example: Settings Note: Under different functions such as music playback, movie playback etc., you can touch “ ” to enter related setting options as well. Music Setup: 1) Repeat mode: Once: Stop when every one song is played over Repeat 1: Repeat a single song Folder once: Stop after finishing playing songs in one subfolders Folder Repeat: Repeat songs in subfolders... -
Page 12: Fm Radio Setup
root folders first and default play them once or repeat them continuously. If you want to play songs in other subfolders, please enter into from “Navigation” first and select songs in other subfolders and play it, then MP3 will play all songs in this folder. 2) Play mode: Order: Play music or movie one by one in order Shuffle: Play music or movie randomly... -
Page 13: System Setup
System setup 1) About:: It shows the information of Firmware version, Date and Memory capacity. 2) Firmware Upgrading Touch “ ” to see the window as following: it reminds you whether to upgrade the firmware, it will exit if no firmware upgrading. 3) Defaulted Set Reset your MP3 player back to defaulted setting. -
Page 14: Charging Battery Mode
Charging Battery Mode If the battery is too low, the display will shows “Low battery to power off”. Please turn it off and you can use USB CABLE to charge the battery from computer. During charging, the battery icon will display as following. After the charging, the battery electricity will shows full grids (Fig.). - Page 15 Windows Media Player to 9.0 or 10.0 version ( 10.0 version only for Windows XP). A) On Windows Media Player 9.0 version : (Window 98SE/ Window ME / Windows 2000/ Windows XP) 1) Connect your MP3.Player to PC 2) Open Windows Media Player 9.0 3) In Windows Media Player 9.0 , open the desired WMA music with DRM System maybe request to download the license in case if user does not download the WMA music with DRM properly from the website .
- Page 16 6) Then click Icon “Copy ” to transfer the WMA music with DRM to your MP3-Player 7) Safely remove your MP3-Player from PC B) On Windows Media Player 10.0 version (Windows XP only) 1) Connect your MP3-Player to PC 2) Choose the desired WMA music with DRM...
- Page 17 3) Click Right button of mouse and choose “Add to Sync list” 4) On the open windows , choose “Sync ” option 5) On “Sync ” window , choose the desired WMA music with DRM as step 2) And choose “Removable Disk” 6) Click “start Sync “...
-
Page 18: Convert And Play Video File
Safely remove your MP3-Player from PC. Convert and Play Video File This player can convert the WMV, RM, AVI, VOB or DAT into AVI video format via the attached video convert software in CD driver. 1. Click and run the program of “AV Converter.exe”, shown as follows: 2.click "add ", show dialog as follows:... -
Page 19: Upgrade Player Driver
3.Select and set your desired parameters, select your desired video/audio file and AVI video file routine to be generated, save it and close the window. Then click [Start to Convert] button, it begin to convert to AVI file. 4.The successfully converted AVI video file can be played in MP3 player. Upgrade Player Driver The player can be upgraded or resume the damaged player driver via the firmware software in the attached CD. - Page 20 then click “Open” and select “Firmware.rfw” file in the CD (the Interface is as follows) 3. Power on your MP3 player enter into “Settings” and select “System”, choose “Upgrade” item, you will be asked “Firmware upgrade?”, choose “Yes”, then connect the player to PC via USB cable.
-
Page 21: Troubleshooting
will see “System Init…”, that means MP3 player start to initialize the system. After it is completed, you will see MP3 player’s main menu again. 5. Now connect MP3 player with computer again, click this removable disk, you will see the window that asking you to format removable disk, click “Yes”... -
Page 22: Specifications
Specifications: Items Specifications Dimensions 88×40×9.0mm (W*H*D) 1.8inch TFT; 65K real color display, Diagram (160 x TFT colored display 128) Language support Multiple languages High speed USB2.0 Data transmission speed Read: 4Mbps, Write: 1Mbps Music: MP3: 8K bps – 320K bps Supportable file format WMA: 32K bps –... - Page 23 Recycling This symbol bears the selective sorting symbol for waste electrical and electronic equipment(WEEE). This means that this product must be handled pursuant to European Directive 2002/96/EC in order to be recycled or dismantled to minimize its impact on the environment.
