DX Air Curtain
In case of heating
x The heating operation mode is selected in accordance with the room temperature and operation starts after
approximately 3 to 5 minutes.
x After the heating operation has stopped, FAN operation may continue for approx. 30 seconds.
x When the room temperature reaches the set temperature and the outdoor unit stops, low fan speed is discharged
and the air volume decreases.
REQUIREMENT
When restarting the operation after stop
x When restarting the operation immediately after stop, the air conditioner does not operate for approx. 3minutes to
protect the machine.

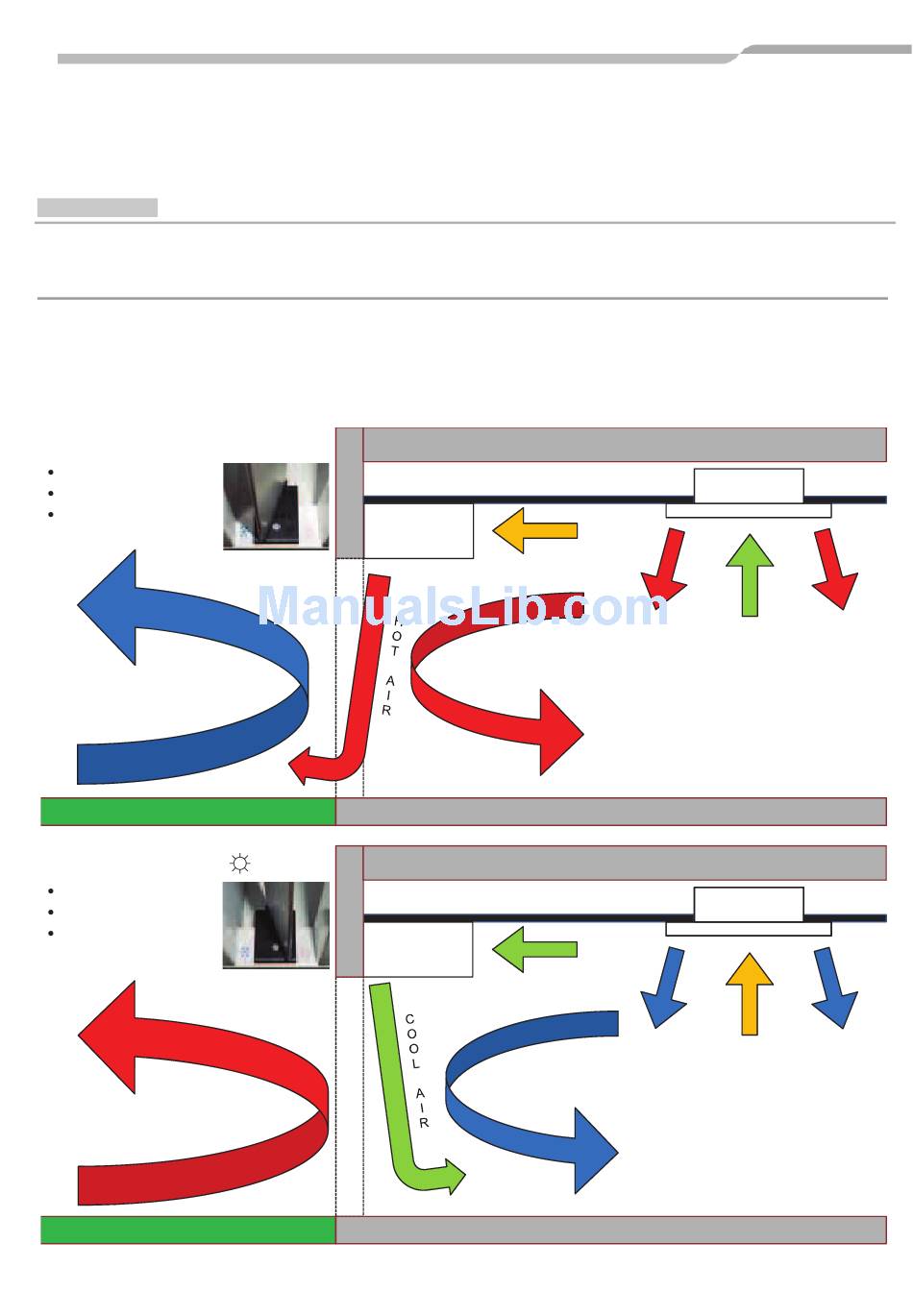

ƒ Recommendation for Winter and Summer Operation
The outlet grille can be manually adjusted to 5 different positions. In winter the outlet grille needs to be adjusted
outwards (Heating), in summer inwards (Fan Only). The airstreams then needs to be adjusted in a way that the air
stream reaches the ground at room temperature.
7 Winter
Outlet Grille Angled Outwards
Air Curtain HEATING
Air Conditioning HEATING
COLD AIR
OUTSIDE
Summer
Outlet Grille Angled Inwards
Air Curtain FAN ONLY
Air Conditioning COOLING
HOT AIR
OUTSIDE
W
A
L
TOSHIBA
L
Air Curtain
(HEATING)
D
O
O
R
HOT AIR
W
A
L
TOSHIBA
L
Air Curtain
(FAN ONLY)
D
O
COLD AIR
O
R
32
CEILING
Air Conditioning
WARM
AIR
HOT
AIR
FLOOR
CEILING
Air Conditioning
COOL
AIR
COLD
AIR
FLOOR
Owner
TOSHIBA
(HEATING)
COOL HOT
AIR AIR
TOSHIBA
(COOLNG)
WARM COLD
AIR AIR
