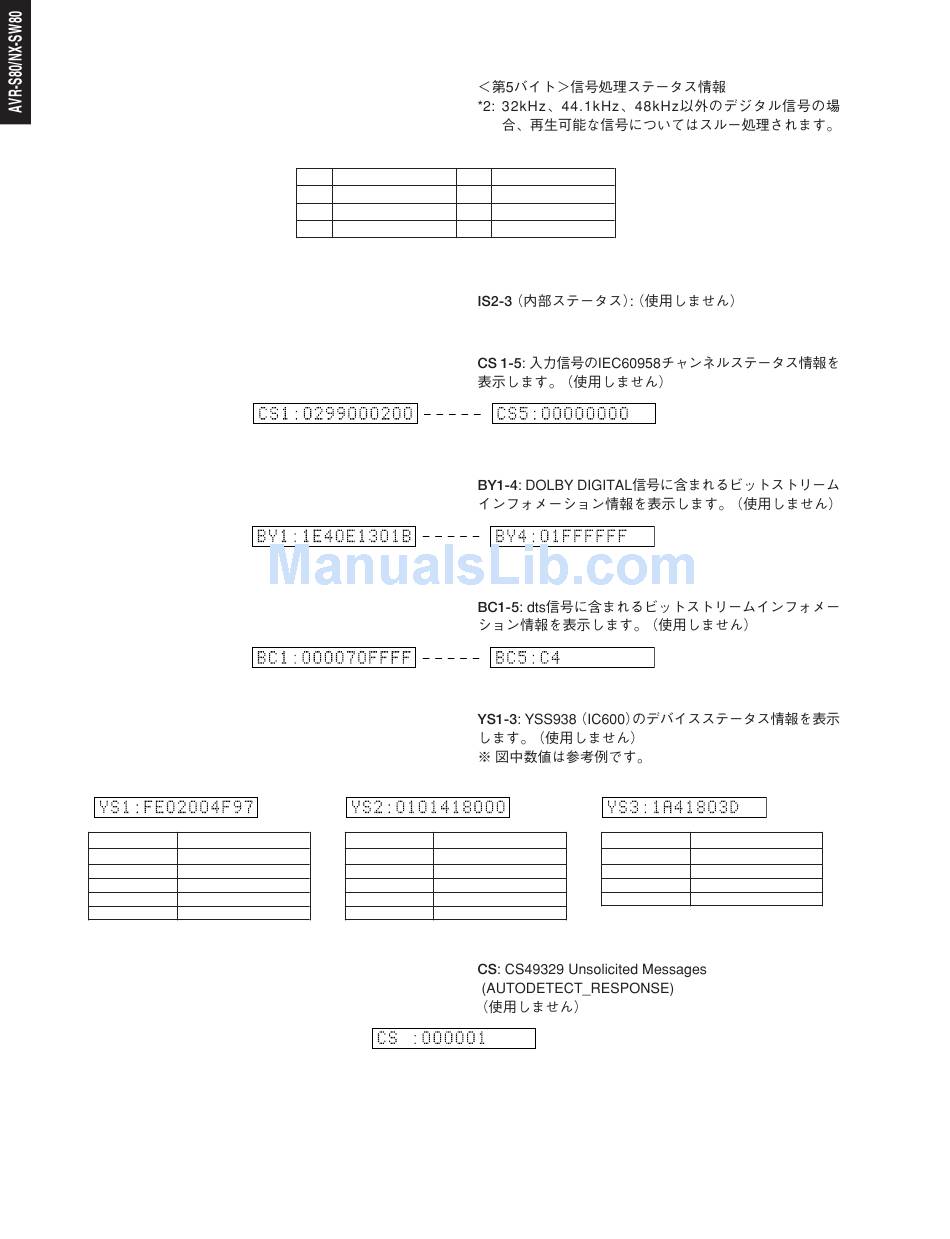

AVR-S80/NX-SW80
<5th byte>
Signal processing status information
*2: With digital signals other than 32kHz, 44.1kHz and
48kHz, through processing method is used for
reproducible signals.
IS2-3 (Internal status): (Not used in this model)
CS1-5: Indicates channel status information of the input
signal (IEC60958). (Not used in this model)
BY1-4: Indicates information of the bit stream included in
the DOLBY DIGITAL signal. (Not used in this model)
BC1-5: Indicates information of the bit stream included in
the dts signal. (Not used in this model)
YS1-3: Indicates device status information of YSS938
(IC600). (Not used in this model)
* The numeric value in the figure is an example for
reference.
Byte No.
Function
1
YSS MUTE Reg
2
YSS MODE Reg
3
YSS IPORT BIT 7-0
4
YSS IPORT BIT 14-8
5
YSS OPORT
CS: CS49329 Unsolicited Messages
(AUTODETECT_RESPONSE)
(Not used in this model)
30
bit7
MUTE request
bit3
bit6
Red dts flashing
bit2 Through & bypass (*2)
bit5
6.1/ES processing
bit1
bit4
FULL MUTE (ON: 1)
bit0
Byte No.
Function
1
IEC 1937 Preamble Pc
2
Data Stream Reg
3
Status Reg
4
YSS ZERO Reg
5
MIREG
dts analog mute
Byte No.
1
2
3
4
Function
DIR Status
DIR fs
DIR fs count
YSS ZEROBS
