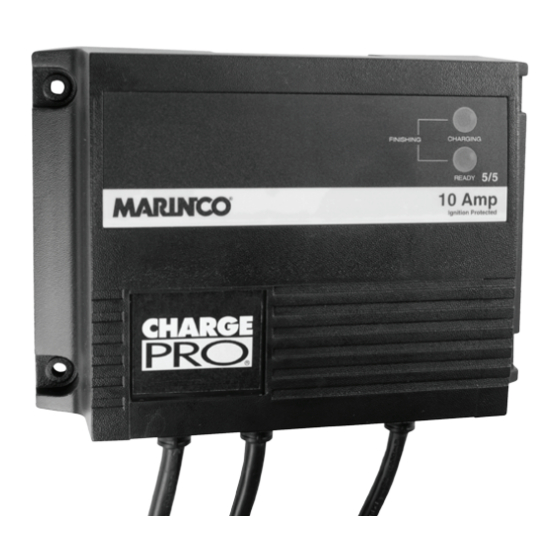

The Marinco chargers are designed to both recharge your batteries, and extend
your battery's life in applications where it is stored for long periods of time.
They are multi-stage, completely automatic, lightweight, silent, battery chargers
and each output produces 12 Volts DC at either a full 5 or 6 Amps (model
specific), while using much less AC current than other charger types. When
the charger is attached to your batteries and plugged into a standard 115 Volt
/ 60 Hz AC outlet, the red and green LED's let you know the unit is recharging
and maintaining your batteries. Model 28210 uses Sense-Send Technology
to quickly charge two batteries and will automatically start charging when the
battery voltage becomes low.
WARNING THIS CHARGER SHOULD BE USED TO CHARGE ONLY LEAD
ACID OR AGM TYPE BATTERIES. USE ON OTHER BATTERY TYPES MAY
EXPLODE AND CAUSE PERSONAL INJURY.
Amperage
6 Amps
5/5 Amps
instruction manual
502-2 & 503-2 instructions
Charge Pro™ Chargers
MODELS: 28106, 28210
No. Of Banks
1 Banks
2 Banks
Volts
12
12/24
Advertisement
Table of Contents
Related Manuals for marinco Charger Pro 28106
Summary of Contents for marinco Charger Pro 28106
- Page 1 5/5 Amps 2 Banks 12/24 The Marinco chargers are designed to both recharge your batteries, and extend your battery’s life in applications where it is stored for long periods of time. They are multi-stage, completely automatic, lightweight, silent, battery chargers and each output produces 12 Volts DC at either a full 5 or 6 Amps (model specific), while using much less AC current than other charger types.
-
Page 2: Important Safety Instructions
Charge Pro™ Charger Instructions IMPORTANT SAFETY INSTRUCTIONS A) SAVE THESE INSTRUCTIONS - This manual contains important safety and operating instructions for the chargers. Read the entire manual before using. Also read all instructions and cautions for and on the charger, batteries and equipment in the vicinity of the batteries. -
Page 3: Personal Precautions
Charge Pro™ Charger Instructions WARNING – RISK OF EXPLOSIVE GASES 1) WORKING IN VICINITY OF A LEAD-ACID BATTERY IS DANGEROUS. BATTERIES GENERATE EXPLOSIVE GASES DURING NORMAL OPERATION. FOR THIS REASON, IT IS UTMOST IMPORTANCE THAT YOU FOLLOW THE INSTRUCTIONS EACH TIME YOU USE THE CHARGER. - Page 4 Charge Pro™ Charger Instructions Preparing To Charge A) Before charging a battery with the charger, read the following precautions: 1. Do NOT operate the charger if the cables or an LED is damaged. B) Make sure all accessories on the product you are charging are OFF. C) If the battery or batteries must be removed from the product, always remove the grounded terminal from the battery first.
-
Page 5: Mounting The Charger
Charge Pro™ Charger Instructions Choosing Charging Location A) The charger should have at least eight inches of unobstructed area on all sides of the unit for effective cooling. The case of this charger will become warm during operation. Because the charger is convection cooled (airflow over the back of the charger), the optimum mounting position for the charger is vertical. -
Page 6: Charge Cycle
Charge Pro™ Charger Instructions Charge Cycle A) Soft Start – Charger verifies connections are good and the battery is capable of accepting a charge. Batteries with very low voltage (near dead) will be slowly charged to not harm the battery. When the battery voltage reaches 10V for 30 seconds the charger switches to the next stage. -
Page 7: Led Indicators
Charge Pro™ Charger Instructions LED Indicators Condition Green Charger is in the “Soft Start” or “Bulk Stage” and the battery is being charged. If the red LED stays on for more than 24 hours refer to Problem 1 in the troubleshooting section. Red &... - Page 8 Charge Pro™ Charger Instructions 28210 connection used with 2 12V batteries POSITIVE connected in series for a POSITIVE 24V System. OUTPUT #2 OUTPUT #1 ENGINE START (OR TROLLING) Specifications Model: 28106 28210 Input voltage: 115 V 50/60 Hz AC Input Amps (Max): 2.0 Amps 2.5 Amps Input Voltage Range:...
-
Page 9: Operating Condition
No AC power available at Connect AC power or turn on when the AC the charger reset the AC breaker on power is applied the main panel Component failure Go to www.marinco.com under the resources tab, refer to FAQ section. -
Page 10: Maintaining The Charger
Charge Pro™ Charger Instructions MAINTAINING THE CHARGER Periodically clean both battery terminals with baking soda and tighten all connections. No other maintenance on the charger is required. FCC Class B EMC Notice This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. -
Page 11: Warranty Statement
WARRANTY Statement LIMITED WARRANTY For two (2) years from the date of purchase, Marinco will, at its discretion, repair or replace for the original consumer, free of charge, any part or parts found upon examination by Marinco to be defective in material or workmanship or both. All transportation charges under this warranty must be borne by the consumer. - Page 12 For more information visit our website: www.marinco.com marinco.com For a FREE catalog of Marinco Recreational ZX464 Group products, contact your local dealer or MAR_TL_046_1113 visit Marinco.com.
