AirKing 9898L Instruction Manual

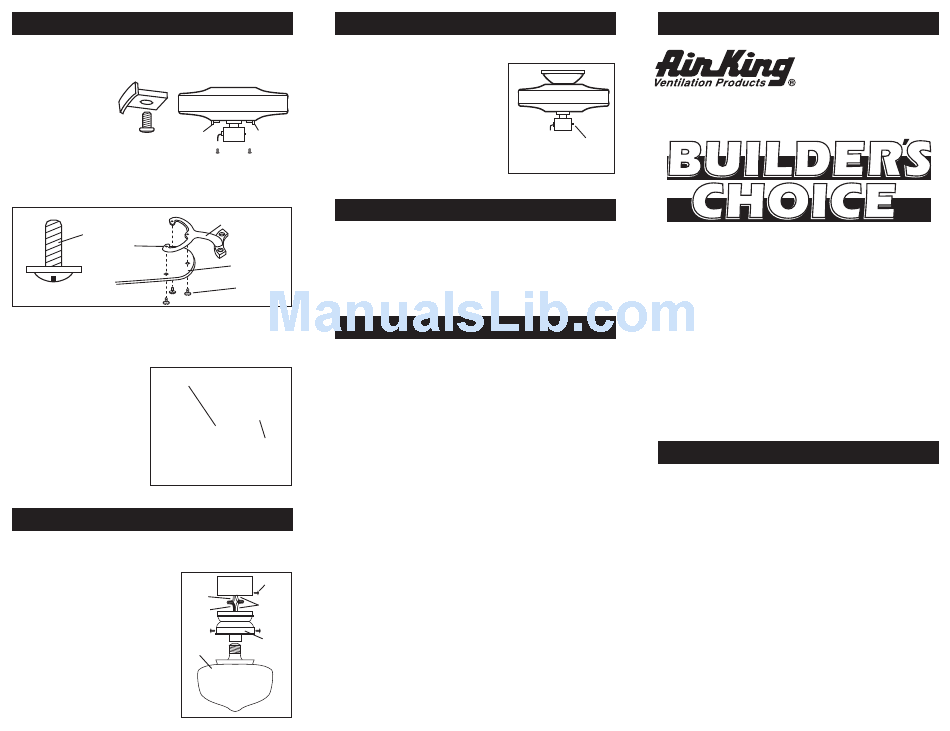

BLADE ASSEMBLY AND ATTACHMENT

NOTE: The blades should be attached to the fan after it is
hung and wired to prevent blade brackets from being bent
and causing the fan to wobble.
Remove the three shipping
stabilizer tabs from the
Remove
bottom of the fan.
1. Using three phillips washer head screws, secure one bracket
to each of the blades. Complete this assembly before
attaching blades to ceiling fan. (Figure 6)
Phillips Washer
Head Screw
Figure 6
2. Place one of the phillips pan head screws into one of the
recessed holes in the blade bracket. Turn screw until it
mates with threaded hole in hub. Do not tighten screw
completely at this time. (Figure 7)
3. Install the second screw
Motor Hub
in the same manner,
then tighten both screws
firmly.
4. Install the remaining
blade assemblies by
repeating the above
Phillips Pan
steps.
Head Screw
Figure 7

LIGHT KIT INSTALLATION

1. Connect the black wire in the light fitter with the blue
wire marked "For Light" using the supplied wire nuts.
(Figure 8)
2. Connect the white wire in the
Blue
light fitter with the white wire
Wire
marked "For Light" using the
Black
supplied wire nuts.
Wire
3. Tuck the wires and wire nuts into
switch cup. Lift the light fitter
Globe
into place and insert the three
screws and tighten.
4. Install light bulb (not included)
and lift globe into place and
secure with the three thumb
Figure 8
screws. Do not overtighten.

USING YOUR CEILING FAN

1. Restore power to the electrical box.
2. Check the operation of the fan
by gently pulling the chain
switch.
3. To reverse airflow direction, turn
fan off and wait for the blades
to come to a full stop, then slide
reversing switch to opposite
Remove
position. (Figure 9)
4. Your ceiling fan is equipped
with four position, three speed
pull chain switch.
Blade Bracket
Periodic cleaning of your ceiling fan is the only maintenance
that is needed. When cleaning, use only a soft brush or lint
free cloth to avoid scratching the finish. Abrasive cleaning
Blade
agents are not required and should be avoided to prevent
damage to the finish. Do not spray water directly onto your
Screws
ceiling fan. It could damage the motor or the blades and create
the possibility of an electrical shock or fire.
The ceiling fan you have purchased is warranted by the
manufacturer for one year from the date of purchase against
defects in workmanship and/or materials. The motor is
warranted for ten years. This warranty means that only the
parts that prove to be defective during the period of warranty
will be either repaired or replaced at our option. The right is
reserved by the manufacturer to replace the whole product in
lieu thereof. Should repair become necessary during the
warranty period, write to: AIR KING c/o LASKO PRODUCTS,
Blade
INC., Appliance Service Department, 820 Lincoln Ave., West
Bracket
Chester, PA 19380. Describe the problem you are having. DO
NOT SEND FAN!
This warranty does not apply if the damage occurs because of
accident, improper handling, installation or operation, shipping
damage, abuse, misuse or unauthorized repairs made or
attempted. ALL WARRANTIES, EXPRESSED OR IMPLIED LAST
FOR ONE YEAR FROM DATE OF ORIGINAL PURCHASE, EXCEPT
FOR THE MOTOR. THIS WARRANTY DOES NOT COVER LIABILITY
FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES FOR ANY
CAUSE WHATSOEVER. Some states do not allow limitations on
how long any implied warranty lasts, or the exclusion or
Screw
limitations of incidental or consequential damages, so that the
above limitation or exclusion may not apply to you. This
White
warranty gives you specific legal rights, and you may have
Wires
other rights that vary from state to state.
FOR REPLACEMENT PARTS: Please call 1-800-966-2028, Monday
Light
- Friday, between the hours of 8am and 4 pm EST. Reference
Fitter
the type and style of product when you call.
FOR QUESTIONS OR COMMENTS ABOUT YOUR CEILING FAN:
Please call 1-800-233-0268, Monday - Friday, between the hours
of 8am and 4pm EST.
New 11/00
Reversing Switch
Figure 9

MAINTENANCE

WARRANTY

INSTRUCTION MANUAL
5 2 " P O R C H C E I L I N G FA N
READ AND SAVE THESE INSTRUCTIONS
Your new ceiling fan is UL listed for Damp locations and will
require a grounded electrical supply line of 120 volts AC, 60
Hz, 15 amp circuit. The 52" total fan weight is 26 lbs maximum.
WARNING: To reduce the risk of fire, electrical shock or personal
injury, mount fan at least 7 feet above the floor to an outlet
box marked "Acceptable for fan support." Use screws provided
with outlet box. Most outlet boxes commonly used for the
support of lighting fixtures are not acceptable for fan support
and may need to be replaced. Consult a qualified electrician
if in doubt.
Your ceiling fan will fit any of the following electrical boxes:
4" octagon box, 3" octagon box, 1/2" deep ceiling pan, or a
plaster ring with 3 1/2" mounting hole centers mounted on
one of the above listed boxes. Your new fan will also install on
a "wiremold" No. 5738 fixture box. The electrical box must be
securely anchored an capable of withstanding a load of at least
50 pounds.
If your ceiling fan does not have one of the above electrical
boxes for proper wiring, you may wish to contact a licensed
electrician for installation.
Model 9898L
