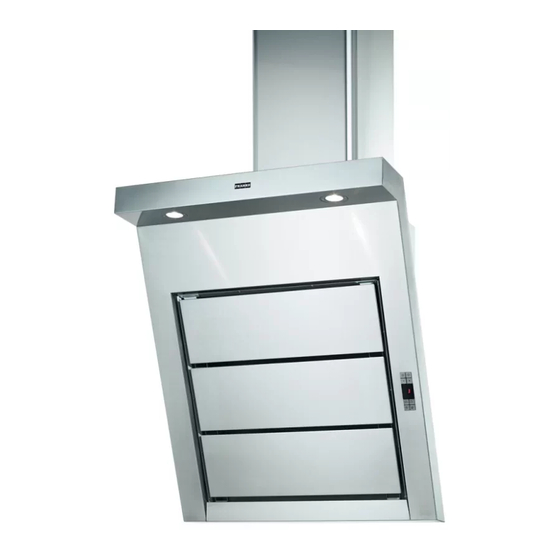

Franke FAK 607 XS Handbook
  1. Manuals
  2. Brands
  3. Franke Manuals
  4. Ventilation Hood
  5. FAK 607 XS
  6. Handbook

Franke FAK 607 XS Handbook

Hide thumbs Also See for FAK 607 XS:

Advertisement

Quick Links

Download this manual
HANDBOOK HOOD FAK607XS ACTIVE 9925093 110.0023.303
UPDATED DECEMBER 2009
Model
FAK 607 XS
FUN Number
110.0023.303
Hood type
Wall
Width
60cm
Control type
Electronic
Finish
Stainless Steel
Extraction speed setting
4 + int.
Automatic cut-off timer
Continuous 24 hour ventilation
Digital Display
Filtering function
Motor
Energy
Filter type
A
Perimetric extraction
Easy fit
Remote control
Optional
Filter saturation indicator
Illumination
Halogen 2 x 20W
Comfort light
Grease filter
Aluminium cassette
Outlet tube diameter
150mm (120mm adaptor supplied)
3
db at 400m
/h
Recommended positioning
250mm Electric
MOTOR
NR 01 POWER IMPUT : 340 W
SPEED :
4+INTENSIVE
LIGHTING
: 20 W X2 HALOGEN LAMPS
TOTAL POWER
: 340 W
IMPUT VOLTAGE :
230V 50 HZ
CONTROLS : electronic
Speed Extraction
Pressure
Power
Sound
Rate
Input
Power
IEC 61591
Maximum
IEC 60704-2-13
3
[M
/H]
[Pa]
[W]
[dB(A)]
1
2
I
270/260
290
75
45
360/340
360
155
51
II
III
570/510
450
215
60
730/660
480
300
65
IV
Int
820/720
500
340
67
3
1 (200 m
/h, 5 Pa) Resistance curve according to IEC 61591
3
2 (200 m
/h, 15 Pa) Resistance curve according to IEC 61591
1
