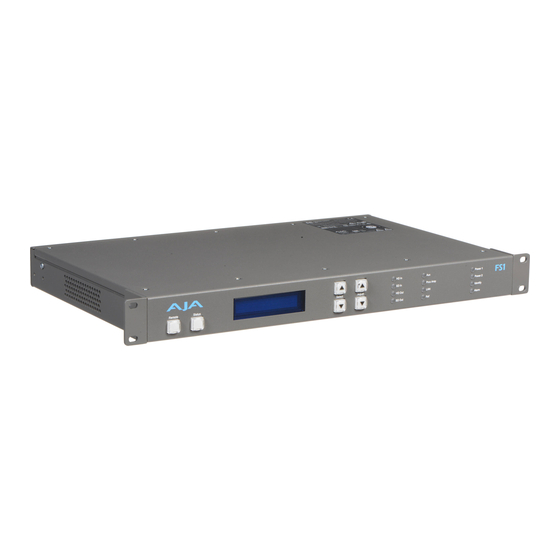

AJA FS1 Installation And Operation Manual

Niversal sd/hd audio/video frame synchronizer and converter
Hide thumbs Also See for FS1:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Operation & Installation Manual
www.aja.com
Published: 2/16/2011
Software Version 2.2.0.47
Installation and Operation
Guide
B e c a u s e
i t
m a t t e r s .

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FS1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for AJA FS1

Summary of Contents for AJA FS1

  • Page 1 Published: 2/16/2011 Software Version 2.2.0.47 Installation and Operation Guide B e c a u s e m a t t e r s .

  • Page 2: Notice

    Notice Copyright © 2011 AJA Video, Inc. All rights reserved. All information in this manual is subject to change without notice. No part of the document may be reproduced or transmitted in any form, or by any means, electronic or mechanical, including photocopying or recording, without the express written permission of AJA Inc.

  • Page 3: Limited Warranty

    AJA Video, with shipping charges prepaid. AJA Video shall pay for the return of the product to the Customer if the shipment is to a location within the country in which the AJA Video service center is located.

  • Page 5: Table Of Contents

    Status Display ............. . 9 Controlling the FS1—Using the Select and Adjust Buttons ......10 Remote Control .
  • Page 6 Networking the FS1 using the Factory Default IP........
  • Page 7 FS1 Installation and Operation Manual — Table of Contents 2.16 Audio Map Ch6............39 2.17 Audio Map Ch7.
  • Page 8 Remote FS1 Control Via a Web Browser ........
  • Page 9 FS1 Simple Network Management Protocol ........
  • Page 10 Translated Caution Statements, Warning Conventions and Warning Messages ... . .113 Before Operating Your FS1 Unit, Please Read the Instructions in This Document ...114 Appendix E: Glossary .

  • Page 11: Introduction

    Featuring a flexible architecture, the FS1 Universal SD/HD Audio/Video Frame Synchronizer and Converter simultaneously works with both HD and SD video— all in full 10-bit broadcast quality video and 24-bit audio. The FS1 supports virtually any input or output, analog or digital, HD or SD: Converts up or down between SD and HD, and provides simultaneous HD •...

  • Page 12: Fs1 Front Panel Control

    Sidebar Keyer • 5-year international warranty with unlimited technical support • FS1 Front Panel Control FS1 operation can be monitored and changed in a number of ways: Front panel control • Remote web browser via Ethernet • VTECS protocol via Ethernet •...

  • Page 13: Remote Web Browser Control

    HD-SDI and down-converted 525i SDI (or 1080i in and 720p and 525i out). The FS1 also allows the user to set the output format, and the conversion will be automatic depending on what the input is. The FS1’s output format can also be...

  • Page 14: What's In The Box

    Optional: Late-breaking News or Read-Me-First notices (where applicable, • AJA may include additional bulletins related to your product and software) Please save all packaging for shipping the FS1 should you wish to do so when moving or sending it in for service.

  • Page 15: In This Manual

    FS1 panel, from unpacking, cabling the system and then getting it up and running. Chapter 4 Parameter Menus gets you started with setting up and using the FS1 via its front panel controls. Discussed are the Parameter Menu and the Select and Adjust buttons used to view and edit settings.

  • Page 17: Controls And Indicators

    However, fault-tolerance exists only if both power supplies are connected and plugged into separate branch circuits. Then if power is lost on a branch or a supply, the FS1 will continue to operate on the remaining circuit and power supply.

  • Page 18: Front Panel

    Control: The control mode displays the menu structure for selecting and changing/adjusting machine functions and parameters. The display changes from status to control mode when you press a Select or Adjust button. When the FS1 is powered up, the display will show an AJA logo and then the status display.

  • Page 19: Status Display

    OUT 720p59.94 SDI 1 If the selected input has no valid signal present, the FS1 displays IN No Input. Note: If the input is incompatible with the chosen output format, the default status screen will display the actual format, such as IN 525i 59.94. The video format status screen, however, would be the default status screen at that point (since the Alarm LED would be on), and it would display IN Incompat.

  • Page 20: Controlling The Fs1-Using The Select And Adjust Buttons

    FS1 into control mode: Buttons Select Adjust To operate the FS1, use the Select buttons to select a function or parameter. Then use the Adjust buttons to adjust the selected function or parameter. The control display has two lines:...

  • Page 21: Remote Control

    Note: Parameter displays and adjustment choices and values are described in detail in Chapter 4. Pressing the Remote button once results in a display showing how the FS1 is being Remote Control controlled. Pressing the button again cycles the display through all control options: LOCAL+REMOTE: Control is from the panel buttons, a web browser, or remote panel (VTECS).

  • Page 22: Power And Status Indicators

    Power and Status Indicators Power 1—Shows that the FS1 #1 power supply is connected to AC mains power via its power cord and is operational. Both the Power 1 and Power 2 LEDs must be lit to ensure redundant power is available.

  • Page 23: About Video And Format Compatibility

    Notes: 1. In the case of 1080pSF/23.98 input—and when 1080i59.94 (or 525) is selected as an output format, the FS1 automatically adds 3:2 pulldown to get the correct frame rate. Similarly, in the case of 1080pSF/24 input, FS1 automatically adds 3:2 pulldown to get the correct frame rate.

  • Page 24: Rear Panel

    Reference ID (Identify) with Loop- Through About Inputs and The functions of the FS1 Inputs and Outputs depend on the operational mode. Outputs The operational steps are simple: 1. Select an output format. 2. Select the desired input. All outputs are active all the time. If you select an output format first and then the input source, the FS1 automatically performs up/down/cross conversion.

  • Page 25: Connector Descriptions

    FS1 Installation and Operation Manual — Connectors 10/100 LAN—RJ45 Ethernet connector. • SDI In/Out—digital video with embedded audio. There are two input and two • output BNC connectors. The outputs are active all the time, although you must specify the output format (and thus whether any conversion takes place). SDI 2 can follow the input (“bypass”)—see description on the following page.

  • Page 26: Gpi

    A female DE-9 connector provides connection to external equipment or circuits via an isolated TTL-compatible interface. Appendix B contains a pinout and specifications for the GPI connector. An RJ45 connector provides a 10/100 Ethernet port for connection directly to a computer or Ethernet hub or switch for connecting to a LAN.

  • Page 27: Composite Ntsc/Pal

    (see Chapter 4 for discussion of these parameters). Reference Video (looping) These two BNC connectors allow you to synchronize FS1 outputs to your house reference video signal (blackburst or composite sync for SD, or Tri- level for HD). If you have a sync generator or video equipment source to use for synchronizing other video equipment in your studio, connect its composite output here.

  • Page 29: Installation & Configuration

    Installation & Configuration Installation Overview The installation and set up of an FS1 is very simple. Plug both AC supply cords into AC mains power (separate branch circuits for redundancy), connect the LAN connector to a LAN, WAN or local computer with a web-browser, and then connect source and destination video and audio equipment.
  • Page 30 LAN or directly to the FS1 Ethernet port) has a web browser installed. If the FS1 will be attached to a LAN, talk to your IT administrator and obtain the details about how to configure the FS1 (DHCP or static IP, explained in this chapter).
  • Page 31 FS1 Installation and Operation Manual — Installation Overview Laptop w/Web Browser for FS1 Remote Control 10/100Base-T 10/100 Base-T WAN/ISP Firewall & Router FS1 Network Example, Two FS1s on a LAN, with Laptop for Remote Control...

  • Page 32: Unpacking

    Unpacking Shipping Box An FS1 chassis is shipped with two AC power cords, a user manual CD, and any late-breaking news bulletins (if applicable). Chassis rackmount brackets are Contents provided as part of the chassis with screws. AC Power Cords (2)

  • Page 33: Mounting The Fs1 Chassis

    LAN requires static IP addresses, also ask your IT administrator for the Subnet Mask and default gateway IP address (your LAN’s internet router). The following two topics discuss two different ways to set up the FS1: via DHCP or via a static IP address.

  • Page 34: Networking The Fs1 Via Dhcp

    IP address. So, as long as your network has a DHCP server FS1 via DHCP (usually part of your router), all you need to do is plug the FS1 into the network. Network configuration happens automatically.

  • Page 35: Networking The Fs1 Using A Static Ip Address

    FS1 Installation and Operation Manual — Connecting to a Network Networking the To set a static IP address for the FS1’s IP address, you’ll need to make some simple Parameter Menu selections. The illustration below shows the four menu selections...

  • Page 36: Networking The Fs1 Using The Factory Default Ip

    Networking the If you don’t want to use DHCP to network the FS1 and also don’t want to set your own static IP address, you can simply use a Default setting to use a factory setting of FS1 using the 10.65.74.65.

  • Page 37: Controlling With A Web Browser

    To control the FS1 from a web browser on a network attached computer, enter the FS1 IP address as a URL in the browser. For example, if the FS1 IP address were “90.0.6.31”, you would then type into the web browser: http://90.0.6.31. This topic is explained in greater detail in Chapter 5: Browser Remote Control.

  • Page 38: Uploading And Installing The Software To The Fs1

    FS1. If there is a power outage or glitch during the software download, the FS1 will boot the older software version and you can restart the upgrade process. The FS1 has been designed with a safety feature where an internal “safe”...

  • Page 39: Gpi Connections

    The GPI inputs and outputs are electrically isolated from the power and ground on the FS1 frame. There are two inputs and two outputs. Electrical isolation is provided for up to two pieces of external equipment. The following guidelines apply to the two GPI inputs and outputs: Input 1 and Output 1 share a common isolated ground on pins 6 &...

  • Page 40: Power Requirements

    Warning! To meet safety regulations for leakage current, connect the FS1 dual power supplies to separate branch circuits. Warning! Refer all servicing to qualified service personnel. Servicing is required when the device...

  • Page 41: Fs1 Audio Level Choices-Pro Or Consumer

    FS1 Installation and Operation Manual — Cabling the System FS1 Audio Level Since the FS1 handles both digital and analog audio and can convert between the two, it provides settings via the Parameter Menus and the remote web browser that allow...
  • Page 42 RP-155), so the +24 dBu setting on the FS1 provides proper headroom levels for digital and analog audio. Most users in the EU use 0dBu as their Alignment Level. This corresponds to -18dBFS in the digital domain (18 dB of headroom per EBU R68).

  • Page 43: Parameter Menus

    Parameter Menus Controlling the FS1 via Front Panel Parameter Menus There are three ways to control the FS1: (1) remotely from a web browser, (2) using a remote control panel, and (3) using the front panel Select/Adjust buttons and Parameter Menus. This chapter deals with the latter—the most direct and all- inclusive way to configure an FS1.
  • Page 44 Pressing one of the parameter Adjust buttons changes the current parameter’s value to a new one from the FS1’s list of choices—repeating the list if you continue to press Adjust—or adjusting a numerical value up or down. The exact choices displayed will vary depending on the parameter.

  • Page 45: Output Format

    FS1 Installation and Operation Manual — 1.1 Output Format 1.1 Output Format This parameter defines the SDI 1 output format. Depending on other settings, it may also apply to SDI 2 and the Component Video output. 1.1 Output Format Description of Choices...

  • Page 46: Component Out

    This parameter performs input video source selection for the FS1. Multiple input sources may be present at all the connectors on the FS1 rear panel, but the active input source routed through the FS1 will be the one selected here.

  • Page 47: Audio Input

    2.2 Audio Input This parameter performsinput audio source selection for the FS1. Multiple input sources may be present at all the connectors on the FS1 rear panel, but the active input source routed through the FS1 will be the one selected here.

  • Page 48: Audio Map Ch1

    2.11 Audio Map Ch1 This parameter is used with parameter 2.2—when Channel Map is selected—to specify the source of the audio output on channel 1. Possible choices (48 in all) are: 2.11 Audio Map Ch1 Description of Choices Parameter Adjustments: AES Ch 1 (default) Selects AES channel 1 and maps it to Channel 1 audio out.

  • Page 49: Audio Map Ch2

    FS1 Installation and Operation Manual — 2.12 Audio Map Ch2 Note: If parameter 4.5 Audio Follow Video is set to On, then Audio Map Ch1 selection is independently kept for each separate input: SDI 1, SDI 2, Composite, S- Video, and Component. If Audio Follow Video is set to Off, then another Audio Map Ch1 selection is used.

  • Page 50: Audio Map Ch1/2

    2.21 Audio Map Ch 1/2 This parameter is used with parameter 2.2—when Stereo Map is selected—to specify the source of the channel pair for audio output channels 1 and 2. Possible choices (24 in all) are: 2.21 Audio Map Ch1/2 Description of Choices Parameter Adjustments: AES Ch 1/2 (default)

  • Page 51: Audio Map Ch 7/8

    FS1 Installation and Operation Manual — 2.24 Audio Map Ch 7/8 This parameter is used with parameter 2.2—when Stereo Map is selected—to specify the source of the channel pair for audio output channels 5 and 6. Possible choices are the same as parameter 2.21. Default = AES Ch 5/6.

  • Page 52: Ntsc Standard

    +12 dBu Select +12 dBu as the expected analog audio level. Maximum amplitude (0 dBFS) Note: Audio levels are discussed at the end of Chapter 3 (FS1 Audio Level Choices— Pro or Consumer). 4.2 Audio Delay (mS) This parameter allows you to adjust the delay to compensate for video timing issues (delay/latency).

  • Page 53: Embed Audio Out

    1. You want to pass digital encoded audio from either embedded or AES into embedded and/or AES out. 2. You have the embedded or AES input genlocked to the FS1 output. In other words, the encoded audio will not survive the frame-sync function (dropping or repeating frames) so it needs to be set to lock to the input.

  • Page 54: Audio Follow Video

    Normal operation. Audio settings must be made separately from any video settings; they are not associated automatically. The FS1 remembers the saved audio settings associated with the currently selected input. Whenever an input is selected, the corresponding audio settings will be recalled.

  • Page 55: Upconvert Mode

    FS1 Installation and Operation Manual — 5.1 Upconvert Mode 5.1 Upconvert Mode This parameter selects the type of upconversion performed on the incoming selected SD source input. See the following illustration for visual representations of the upconversions. 5.1 Upconvert Mode...

  • Page 56: Downconvert Mode

    In the FS1 downconverter, the AFD code on the video input can be used to guide the downconverter in choosing which mode to use to best display the important content of the input 16:9 HD video on the 4:3 SD output.
  • Page 57 FS1 Installation and Operation Manual — 5.2 Downconvert Mode Downconvert Illustrations—FS1 16:9 Downconverts To These displays on 4:3 Letterbox Crop Anamorphic 14:9 Downconvert Illustrations...

  • Page 58: Sd Aspect Ratio Convert

    Converts 4:3 Standard video to 16:9 Anamorphic video. V Crop Converts Letterbox video to 16:9 Anamorphic video. 14:9 Converts 16:9 Anamorphic video to 14:9 Cropped video. SD Aspect Ratio Conversion Illustrations—FS1 4:3 Converts To These displays on 4:3 (no conversion) Letterbox...

  • Page 59: Downconvert Afd Default

    FS1 Installation and Operation Manual — 5.5 Downconvert AFD Default 5.5 Downconvert AFD Default This parameter selects how the FS1 will operate when parameter 5.2 Downconvert Mode has been set to Auto AFD and no AFD codes are detected at the selected input source (i.e., selects which default downconversion to use when no AFD is present).

  • Page 60: Afd Out Sdi1

    Parameter Adjustments: OFF (Default) The FS1 does not insert an AFD code into the output. If the video input has an AFD code and the FS1 is not up/down/cross-converting it, the input AFD code will be passed through to the output.

  • Page 61: Genlock Source

    Use the signal on the currently selected input as the genlock source. Free run Free run mode (FS1 syncs to its own timebase, not locked to an external source). 6.2 Output Timing H This parameter adjusts horizontal output timing with reference to the genlock source already selected.

  • Page 62: Analog Output Fine (Horizontal Timing)

    (parameter 2.1), upconverts it, and then adds HD sidebars from the source selected here in parameter 7.1. The sidebars keyed over the FS1’s source video (2.1) will each have a width as specified in parameter 7.2. Sidebar video is useful when upconverting standard definition video in 4:3 Pillar mode, as the sidebar takes the place of the black on the...

  • Page 63: Sidebar Edge

    FS1 Installation and Operation Manual — 7.2 Sidebar Edge 7.2 Sidebar Edge This parameter selects the width of the sidebars when turned on via parameter 7.1. Sidebar Keyer. The video selected in 7.1 will appear on the right and left of the active video input (selected in 2.1).

  • Page 64: Proc Amp Gain

    10.2 Proc Amp Gain This parameter adjusts the video gain from black to 1.5 times luma in steps of .01, each time an Adjust button is pressed. 10.2 Proc Amp Gain Description of Choices Parameter Adjustments: Variable Adjustment range increments from zero to 1.5 in .01 steps. Default (unity): 1.0 10.3 Proc Amp Black This parameter adjusts the video black level from -20 IRE to +20 IRE in .5 steps,...

  • Page 65: Loss Of Input

    20.0 Audio Output Levels This parameter enables or disables individual audio output level adjustment of the eight FS1 audio output channels. When Adjust is selected, parameters 20.1 through 20.8 are then used to select the output levels for each separate channel.

  • Page 66: Audio Level Ch2

    20.2 Audio Level Ch2 This parameter adjusts the audio level of audio channel 2 ± 18dB in steps of 0.5 dB. Parameter adjustments are the same as for 20.1. 20.3 Audio Level Ch3 This parameter adjusts the audio level of audio channel 3 ± 18dB in steps of 0.5 dB. Parameter adjustments are the same as for 20.1.

  • Page 67: Audio Output Phase

    FS1 Installation and Operation Manual — 21.0 Audio Output Phase 21.0 Audio Output Phase This parameter enables or disables individual audio phase adjustment of the eight FS1 audio output channels. When Adjust is selected, parameters 21.1 through 21.8 are then used to adjust phase for the eight channels.

  • Page 68: Audio Phase Ch5

    Description of Choices Parameter Adjustments: When set to On and using the UpConverter, the FS1 will automatically translate incoming line 21 captions to CEA-708 format and insert the VANC packets into the converted HD video stream. This is a complete translation from CEA-608 format to CEA-708 format (including the embedded SD captions).
  • Page 69 CEA-708 VANC packets, and output it on line 21 of the standard definition outputs. To pass closed captioning data to the outputs, parameter 31.1 UC Line 21 must also be set to Pass. The FS1 CrossConverters will reformat and pass any incoming CEA- 708 VANC packets for the output frame rate.

  • Page 70: Upconvert Line 21

    Passes input video Line 21 to the converter and to the outputs. Auto blank The FS1 looks for Line 21 caption data on the video input. If present, Line 21 is blanked before video conversion occurs. If no caption data is found, Line 21 passes to the converter.

  • Page 71: Authentication

    5. After you select Basic, a password is required for webUI (browser) access to the FS1. Passwords cannot be entered at the front panel but must be entered via web browser. Your browser will prompt for a username/password. The FS1 ignores any supplied username and uses only the password during authentication.

  • Page 72: Gpi In 1 Response

    The setting of this parameter determines what happens when a GPI trigger is received at the FS1’s first GPI input (pin 1 on DE-9). A GPI Trigger is defined as a TTL low voltage level (0 to 0.8V with respect to its isolated ground pin). The GPI interface pinout and specifications are discussed in Appendix B.

  • Page 73: Gpi In 2 Response

    FS1 selects SDI2 as the video input if a GPI trigger is received at pin 2. Composite In FS1 selects Composite In as the video input if a GPI trigger is received at pin 2. S-Video In FS1 selects S-Video In as the video input if a GPI trigger is received at pin 2.

  • Page 74: Gpi 1 Out

    FS1 generates a GPI 1 output trigger on pin 3 if an internal alarm condition occurs. No Video FS1 generates a GPI 1 output trigger on pin 3 if no video is detected at its selected input. FS1 generates a GPI 1 output trigger on pin 3 if no video is detected at its Ref No Ref video input.

  • Page 75: Freeze Output

    FS1 Installation and Operation Manual — 40.1 Freeze Output 40.1 Freeze Output This parameter tells the FS1 to freeze the current video frame on all outputs. This may be useful either for testing or in case of loss of the input source.

  • Page 76: Ip Config

    Parameter Adjustments: DHCP (Default) Select automatic IP address assignment from DHCP server on LAN. Note: if the FS1 cannot find a DHCP server to communicate with, it will fail over to the static IP address. Static Addr Assign a static IP address manually (parameters 50.2, 50.3, and 50.4 will have to be entered to accomplish this).

  • Page 77: Subnet Mask

    FS1 will be unable to see other FS1s on the network, although you may still be able to control this FS1 via a web browser. Also, without a proper gateway defined, the discovery feature “Available FS1s—Click to Refresh” on the Network web page will not work correctly and list other FS1s on the network.

  • Page 78: System Name

    Parameter Adjustments: variable Using the Select and Adjust buttons, enter a name for the FS1, up to 20 characters. The top Select button advances to the next character, and the bottom Select button steps back to the previous character. The Adjust buttons scroll through the choices for each character.

  • Page 79: Snmp Enable

    This parameter turns ON and OFF all SNMP messaging between the FS1 and an external client. Refer to Chapter 6 for a description of SNMP and how the FS1 supports it. When SNMP is enabled, one or more of 4 alarms may be sent by the FS1 as a trap message: Power supply failure or disconnection: fs1PSAlarm (see parameter 60.1)

  • Page 80: Snmp Trap Port 1

    Description of Choices Parameter Adjustments: variable Using the Adjust buttons, select a UDP port for sending FS1 trap messages. Default: 162 Note: The SNMP Trap Port number does not blink when changed (as does the Trap Destination IP address); if you change the port number and exit the parameter (moving to another parameter), the port will change immediately as edited.

  • Page 81: Snmp Trap Port 2

    (Normal) is that the alarm will be triggered anytime either of the internal power supplies fails or is disconnected from a power source (becomes unplugged). If the FS1 will only be connected to one power cord, you can suppress this alarm. 60.1 Pwr Supply Alarm...

  • Page 82: Format Alarm

    2. The reference signal is required, due either to 1.1 Output format set to “Follow Ref” or 6.1 Genlock Source set to “Reference.” If you want the FS1 alarm to only trigger on hardware failures, you can suppress the Format Alarm.

  • Page 83: Screen Saver

    FS1 Installation and Operation Manual — 70.1 Screen Saver 70.1 Screen Saver When set to AJA Logo, a rolling AJA logo screen saver will appear on the alphanumeric display after 60 minutes of inactivity—defined as no button presses on the front panel. If disabled, the display just becomes dim. When the Screen Saver is on, the Status button will return the display to the last Status display, or any Select or Adjust button will return the display to the last parameter menu.

  • Page 84: Preset Recall

    [Saved]. Presets cannot be named from the front panel. To change a preset name, refer to the web interface Presets Screen description in Chapter 5. The FS1 displays the same name on the front panel and the web interface. Parameters Not Only editable parameters are saved into presets.

  • Page 85: Factory Settings

    • • 99.0 Factory Settings Selecting this parameter and then pressing the Adjust (up) button recalls the FS1’s factory default settings. Caution: Selecting this parameter and recalling factory defaults will overwrite the current settings (except for the settings listed below). Existing settings will be lost.

  • Page 87: Browser Remote Control

    Status button on the FS1 front panel until the Network Status display is shown or you can go to parameter 50.2 and read it there. When the FS1 is shipped from the AJA factory, the FS1 defaults to DHCP operation.

  • Page 88: General Screen Information

    General Screen All FS1 web screens have certain areas in common. On the left of each screen is a navigational list of the available FS1 screens. Click any of these items to jump to that Information screen. At the top of each screen you’ll also find a heading showing the connection status and IP address in addition the FS1’s serial number and software version.

  • Page 89: Resetting Values To Factory Settings

    To perform a global reset of the FS1 to factory settings, go to the Miscellaneous screen and click on the button at the bottom labelled Reset all FS1 parameters to Factory Values. (This functions the same as the FS1 front panel parameter 99.0—another way to reset to factory...
  • Page 90 Video In (2.1) SDI 1 (default) Select SDI 1 connector as the input source. SDI 2 Select SDI 2 connector as the input source. Composite Select the Composite connector as the input source. S-Video Select the S-Video connector as the input source. Component Select the Component connector as the input source.
  • Page 91 Off (default) Normal operation. The FS1 outputs video from the input. The FS1 captures and freezes the most current video frame and displays it on the outputs as long as this parameter is set to On. SDI 2 Output (1.2) Normal (default) SDI 2 output follows the 1.1 Output Format parameter selection (both SDI 1 and SDI 2 are...
  • Page 92 Turns the Sidebar Keyer On and selects Component In as the HD input source for the Component Sidebar keyer. (The FS1 input source selected by parameter 2.1 cannot be either Composite or S-Video when Component is chosen as the Sidebar Keyer source.) Side Bar Edge (7.2)—Specify a value to widen or narrow the sidebar keyer.

  • Page 93: Audio Control Screen

    FS1 Installation and Operation Manual — Remote FS1 Control Via a Web Audio Control This screen offers settings for a variety of audio-related functions: Screen Turning AFV on and off. • Saving AFV settings for any selected video input. •...
  • Page 94 Source (Audio Input 2.2)—Defines the input audio source selection for the FS1. Multiple input sources may be present at all the connectors on the FS1 rear panel, but the active input source routed through the FS1 will be the one selected here.

  • Page 95: Convert Mode Screen

    1. You want to pass digital encoded audio from either embedded or AES into embedded and/or AES out. 2. You have the embedded or AES input genlocked to the FS1 output. In other words, the encoded audio will not survive the frame-sync function (dropping or repeating frames), so it needs to be set to lock to the input.
  • Page 96 Upconvert Mode (5.1) 4x3 Pillar Results in 4x3 image in center of screen with black sidebars. 14x9 Pillar (default) Results in 14x9 image, zoomed slightly to fill a 14x9 image with black sidebars. Full Screen Anamorphic full screen display. LB to Full Image is zoomed to fit the full screen (letterbox).
  • Page 97 AFD Out SDI1 (5.6) Off (Default) The FS1 does not insert an AFD code into the output. If the video input has an AFD code and the FS1 is not up/down/cross converting it, the input AFD code will be passed through to the output.

  • Page 98: Genlock Control Screen

    Use the currently selected input as the genlock source Free run Free run mode (FS1 syncs to its own timebase, not locked to an external source) Horizontal Output Timing, pixels (6.2)—This slider adjusts horizontal output timing relative to the reference video already selected. When adjusting the horizontal timing (H), this value specifies a number of pixels to offset, from zero to full line...

  • Page 99: Procamp Control Screen

    Video In—Selecting a value results in the ProcAmp screen showing the current ProcAmp settings for that specific input as well as changing the FS1’s input to the one chosen. Note: ProcAmp controls (Parameters 10.1 through 10.5) are independently kept for each separate input: SDI 1, SDI 2, Composite, S-Video, and Component.

  • Page 100: Caption Screen

    Passes input video Line 21 to the converter and to the outputs. Auto blank The FS1 looks for Line 21 caption data on the video input. If present, Line 21 is blanked before video conversion occurs. If no caption data is found, Line 21 passes to the converter.

  • Page 101: Presets Screen

    This screen also includes Export and Import functions that allow exporting one or all FS1 presets to your computer as an XML file and importing an exported preset XML file from your computer. A message banner above the functions indicates successful or failed saves, recalls, exports, and imports.
  • Page 102 Only editable parameters are saved in the presets. Example non-editable parameters that saved include 50.6 MAC Address, 80.1 Serial Number, and 80.2 SW Version, as well as “trigger” parameters, such as 90.0 Reboot, 91.1 Preset Recall, 92.1 Preset Save, and 99.0 Factory Settings.

  • Page 103: Miscellaneous Screen

    Turn the front and rear panel “ID” LED lights Off . Screen Saver (70.1) AJA Logo (default) Display horizontally rolling AJA logo after 60 minutes of FS1 front panel button inactivity System Name Display horizontally rolling System Name after 60 minutes of FS1 front panel button inactivity...
  • Page 104 FS1 performs no action if a GPI trigger is received at pin 1 ( GPI DE-9 Connector) Freeze FS1 freezes the current video frame at its outputs if a GPI trigger is received at pin 1. The freezing of the frame will stop when the GPI trigger is released...
  • Page 105 FS1 performs no action if a GPI trigger is received at pin#2 ( GPI DE-9 Connector). Freeze FS1 freezes the current video frame at its outputs if a GPI trigger is received at pin 2. FS1 selects SDI1 as the video input if a GPI trigger is received at pin 2.
  • Page 106 FS1 generates a GPI 1 output trigger on pin 3 if no video is detected at its selected input. No Video FS1 generates a GPI 1 output trigger on pin 3 if no video is detected at its Ref video input. No Ref FS1 generates a GPI 1 output trigger on pin 3 if SDI1 is selected as the main video input.
  • Page 107 The browser then prompts for a username/password for all access to the FS1. The FS1 ignores any supplied username and uses only the password during authentication. If prompted for a password more than once, please re-enter the proper password each time you are asked.
  • Page 108 (dim) to 8 (brightest). Reset All FS1 Parameters To Factory Values (99.0)—As this button title implies, clicking it will cause all current FS1 parameter settings to revert to the original AJA factory values (except network settings—which are retained). Any settings you have made to date will be overwritten.

  • Page 109: Test Signals Screen

    Screen FS1 Web Interface, Test Signals Screen Video SG (41.2): This parameter determines the video signal output from the FS1’s internal test signal generator: OFF (default), Black, 75% Bars, or 100% Bars. This parameter is used with the preceding parameter (41.1) to determine the type of video test signal output by the FS1.

  • Page 110: Network Screen

    Network This screen contains all of the information required to set up FS1 TCP/IP networking. The screen also shows all FS1s that are on the same LAN as the FS1 the web browser is Screen communicating with. Note: FS1 IP Address and netmask fields filter keystrokes and only allow legal characters.
  • Page 111 FS1s on the LAN, or their defined System Names (see parameter 50.5) are listed— and clicking on any of these will bring up the Status screen of that FS1. Note: the FS1 you control may be running a different software version so screens may look different.

  • Page 112: Snmp Screen

    IP address entered here. A Port number for the TCP/IP port to be used for trap messages from the FS1 to the NMS must also be specified (UDP Port 162 is the default). Two sets of Trap Destination IP and Port numbers are provided so you can send trap messages in parallel to two NMS.

  • Page 113: Snmp

    When set to Enable Both , the FS1 issues SNMP trap messages to Trap Destination 1 and 2 (parameters 51.2 and 51.4) and as defined in the MIB. When SNMP is enabled, one or more of 4 alarms may be sent by the FS1 to the client NMS as a trap message: Power supply failure or disconnection: fs1PSAlarm (see parameter 60.1)
  • Page 114 The trap message would be sent to server-based external network management systems (NMS). These trap destinations must have a fixed IP address that you have pre-defined (FS1 parameters 51.2 and 51.4 must be set to point to these, if used). 51.2 SNMP Trap Dest 1...

  • Page 115: Specifications

    Appendix A: Specifications Formats 525i 625i 1080i 50/59.94/60 Hz 1080psf 23.98/24 Hz 720p 50/59.94/60 Hz Video Inputs and Outputs Dual SDI/HD-SDI, SMPTE 259/274/292/296 HD component YPbPr/RGB (RGB is output only), SMPTE-274 SD component/composite/YC (S-Video) Video A/D, D/A 12 bits 2x oversampled (HD) 4x oversampled (SD) Audio Inputs and Outputs 8 Channel Balanced, 25 pin D (Tascam pinout)

  • Page 116: Rs422

    RS422 DE-9: Reserved for future use. DE-9: single connector provides two inputs and two outputs. See Appendix B for pinout and specifications Physical Width: 17.25" (43.81cm) Depth: 12.5" (31.75cm) Height: 1RU, 1.75" (4.44cm) Weight: 6.5lbs (2.94kg) Operating temperature range: 0–40 degrees C Convection cooled Power Voltage: 100-240 VAC...

  • Page 117: Gpi Connector Pinout

    The GPI inputs and outputs are electrically isolated from the power and ground on the FS1 frame. There are two inputs and two outputs. Electrical isolation is provided for up to two pieces of external equipment. The following guidelines apply to the two GPI inputs and outputs: Input 1 and Output 1 share a common isolated ground on pins 6 &...
  • Page 118 The following illustration shows typical external wiring to the GPI connector. The GPI inputs require some kind of contact closure between the input pin and the input ground pin to register the logic low that triggers the GPI input. You can connect the outputs to TTL buffers that communicate the GPI output logic levels to other devices.
