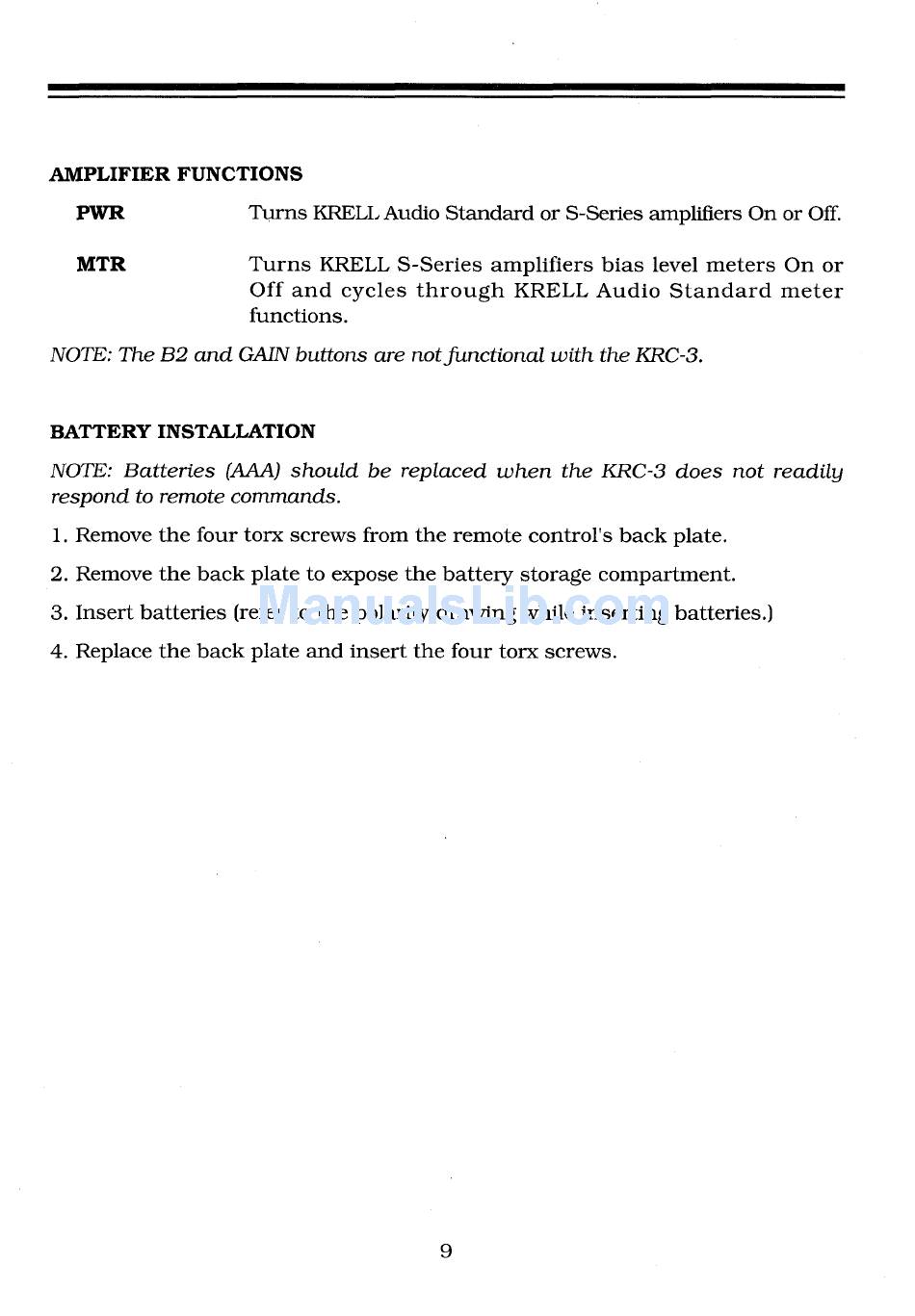

AMPLIFIER FUNCTIONS
Turns KRELL Audio Standard or S-Series amplifiers On or Off.
MTR Turns KRELL S-Series amplifiers bias level meters On or
Off and cycles through KRELL Audio Standard meter
functions.
NOTE: The B2 and GAIN buttons are not functional with the KRC-3.
BATTERY INSTALLATION
NOTE: Batteries (AAA) should be replaced when the KRC-3 does not readily
respond to remote commands.
1. Remove the four torx screws from the remote control's back plate.
2. Remove the back plate to expose the battery storage compartment.
3. Insert batteries (refer to the polarity drawing while inserting batteries.)
4. Replace the back plate and insert the four torx screws.
9
