Synthesizer

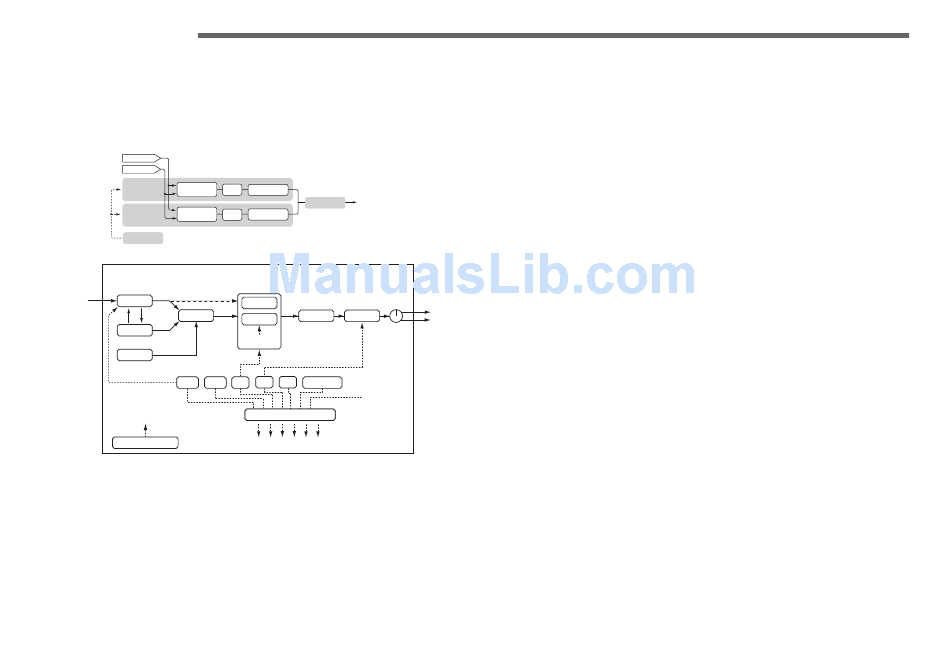

Each of the R3's programs consists of two timbres, a master effect, and an
arpeggiator (Figure 0-1).
Figure 0-1
Audio Input 1
Audio Input 2
Timbre 1
Timbre 2
Arpeggiator
Synth
Filter Routing= Individual
OSC1
AUDIO INPUT 1, 2
MIXER
OSC MOD
OSC2
NOISE
LFO1
Free Assign
MOD SEQUENCER
Timbre 1/2
In the top diagram, you can see that each timbre consists of a Synth, an
EQ, and two Insert Effects (IFX). The lower diagram shows the structure
of each timbre's synth section.
Oscillator (OSC1/OSC2/NOISE)
There are three Oscillator sources; Oscillator 1, Oscillator 2, and the noise
generator. Oscillator 1 (OSC1) lets you choose from seven different
oscillator algorithms. These include conventional analog synthesizer
waveforms, DWGS waveforms, formant waves, noise, plus an external
2

The structure of a program

Synth
EQ
Insert FX 1/2
OUTPUT
Master FX
(L/MONO, R)
Synth
EQ
Insert FX 1/2
Drive/WS Position
FILTER1
= PreAmp
DRIVE/WS
AMP
FILTER2
EG1
KBD TRACK
LFO2
EG1
EG2
EG3
MIDI 1–3
KBD Track
Velocity
Pitch Bend
VIRTUAL PATCH
Mod Wheel
Free Assign
audio signal. Oscillator 2 (OSC2) lets you choose from four different
oscillator waves - sine, triangle, square, and sawtooth. The noise genera-
tor (NOISE) produces white noise. You can use this for a variety of sound
shaping situations, such as adding breath noise for a wind instrument
sound, or as part of a special effect sound. Modulation such as cross-
modulation, unison, and VPM (Variable Phase Modulation) can be
applied to the analog synthesizer waveforms of Oscillator 1. Oscillator 2
can be used as the modulating oscillator for the sync modulation (SYNC)
or ring modulation (RING) that are such classic analog synthesizer
techniques. The best elements of SYNC and RING modulation can be
combined using a third option: RING SYNC.
Voice / Unison / Pitch
These sections provides additional parameters relating to the oscillators,
such as trigger mode, unison stacking, transpose, portamento, bend
range, etc. For die-hard analog fans, this is also where you can find the
Analog Tune parameter, used to introduce simulated oscillator drift.
To EQ
Mixer (MIXER)
PAN
The mixer adjusts the volume levels of oscillator 1 (OSC1), oscillator 2
(OSC2), and the noise generator (NOISE), and sends the combined signal
to the filter (FILTER).
Filter (FILTER1/FILTER2)
The filter section consists of two multi-mode, resonant filters. The two
filters can be routed in series or parallel, or even side by side in a "one
oscillator per filter" arrangement. The filters adjust the tone of the sound
coming from the oscillators by boosting or cutting specific frequency
regions. Filter settings will have a major impact on the sound. By default,
envelope generator 1 (EG1) is set to vary the cutoff frequency of the
filters over time.
Amp (AMP)
Traditionally, the amp section controls the output volume (AMP) and the
panning (PAN), or the position in the stereo field. By default, envelope
generator 2 (EG2) is set to vary the volume level over time.
Drive/Wave Shape (DRIVE/WS)
The R3 provides additional features to add more tonal complexity and
"edge" to the sound - including Drive, Wave Shape control (DRIVE/WS).
