Here you can set the parameters that modulate the cutoff frequency of the carrier's band-pass filters (synthesis filter), and adjust the output of

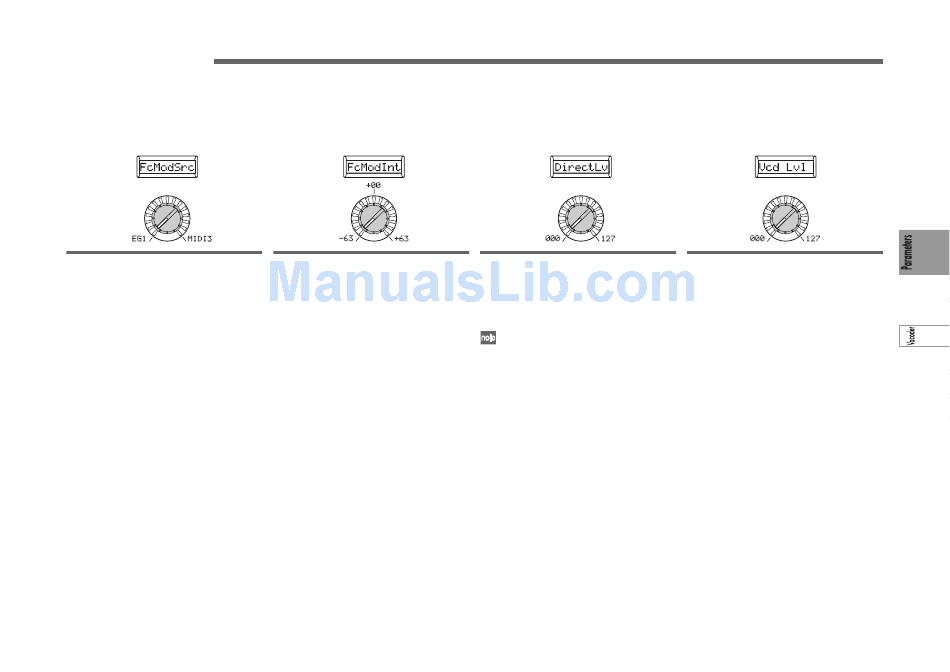

FcModeSrc (Fc Mode Source) [EG1...MIDI3]
Selects the modulation source that will be
applied to the carrier band-pass filter
"FcOffset." The available modulation
sources are the same as the modulation
sources for program parameter virtual
patches (☞p.45 "Source1...Source6").
FcModInt (Fc Modulation Intensity)
Specifies the depth of the modulation that
is applied to the carrier band-pass filter
(Synthesis filter) "FcOffset."
DirectLv (Direct Level)
Sets the volume level at which the
modulatior input source will be output
If you press the [VOCODER] button
to make it blink, and raise the Edit
mode 38. Filt/Amp page "DirectLv"
value, the incoming audio signal will
be output directly. Raise this value if
you want to hear the audio input while
you're adjusting it.
Vcd Lvl (Vocoder Level)
Sets the output level of the vocoder.
