Summary of Contents for AYURA WSM 02

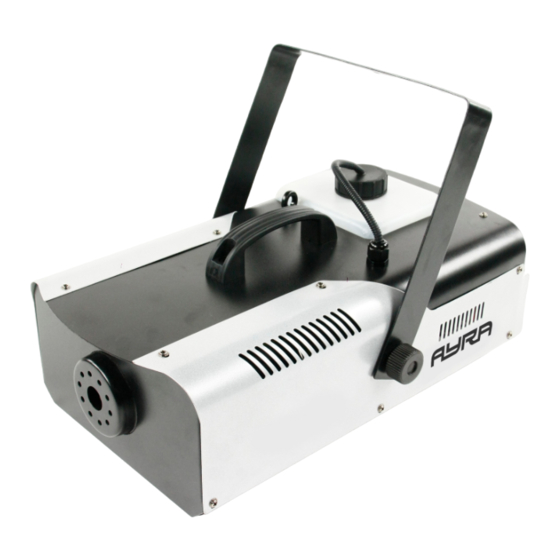

- Page 1 WSM 02 – WSM 03 MKIII 1200W – 1500W DMX fog machine User manual All information and illustrations shown in this user manual are subject to change without further notice. User manual version: 2.0 Creation date + author initials: 11-02-2014 RV Revision date + author initials: 16-06-2014 RV...
-
Page 2: Safety Instructions
Safety instructions WARNING! Always keep this device away from moisture and rain! Hazardous electrical shocks may occur! WARNING! Only connect this device to a matching power outlet. This device is intended to work on a specified AC currency. Connecting this device to power outlets with other voltages may result in permanent damage and possible hazardous situations, such as fire or electrical shocks! WARNING! Be careful with every operation of this device. - Page 3 - Avoid nearby flames or heat sources, do not place this device near flammable liquids, gas or flammable items. - Always disconnect the device when it is not in use for a longer period or time, when servicing is needed or when the device needs cleaning.
- Page 4 rating. - Do not bridge the fuse with electrical wires, aluminum foil, as the fuse is used for protection against electrical shocks and short circuit. - Always mount the fuse cover back to the fuse compartment. All information and illustrations shown in this user manual are subject to change without further notice. User manual version: 2.0 Creation date + author initials: 11-02-2014 RV Revision date + author initials: 16-06-2014 RV...
- Page 5 Guidelines for fog machines Fluid guidelines: - Only use water-based fog liquids! - Ayra recommends the use of Ayra fog machine fluid only. Other types of fog liquid may cause permanent damage or bad performance. When the wrong type of fog liquid is used, the machine might spray hot liquid. - It is possible to keep fog machine fluid in the tank during transport.
- Page 6 - The handle provided on the device is only to be used during transport, not during operation. - This device is not intended to be installed directly above publicly accessible areas. - When using the device in a hanging position, always mount a G-clamp or half coupler to the bracket, or use bolts to install the bracket directly to a ceiling or beam.
-
Page 7: Box Contents
Box contents Box contents 1x WSM fog machine (WSM 02 MKIII or WSM 03 MKIII) 1x power cable 1x wired controller 1x keychain wireless remote control 1x mounting bracket Unit and accessory inspection - Always check the unit, box and accessories for possible damage before use. If you suspect that something is wrong with the unit, do not connect it to a power source! When you suspect that your unit is broken or damaged, contact your local dealer or a certified technician to inspect the unit. -
Page 8: Device Overview
Device overview 1. Fog machine nozzle (fog output) 2. Transport handle 3. Ventilation slots 4. Liquid hose and liquid tank cap 5. Wired control input (5-pin connector) 6. DMX dipswitch panel with indication LED 7. On/off switch 8. DMX input 9. -
Page 9: Setting Up The Unit
Setting up the unit To make sure that you use this machine as intended, Ayra recommends to follow the steps described below. Liquid Before turning on the machine, make sure there is enough fog liquid in the tank. This machine is designed and set for Ayra fog fluid. - Page 10 The dipswitch value is shown for each dipswitch. By adding several values you are able to make combinations to reach the desired DMX value between 1 and 512. For example, if you wish to set the device to channel 17, you need to select dipswitch 1 + 5. A status LED is provided, indicating that the machine receives DMX-signal from your controller.
- Page 11 Maintenance and protection against damage and/or injuries To be able to keep your fog machine in optimal shape, please pay attention to the maintenance guidelines stated below. Following these guidelines ensures that your fog machine remains in perfect condition over a longer period of time.
-
Page 12: Technical Specifications
Technical specifications WSM02 MKII WSM03 MKII Heating element 1200 Watt 1500 Watt Pump 40DCB 55DCB Output distance 8-12m 10-14m Warm-up time Approximately 6 Approximately 7 minutes minutes Tank capacity Approximately 2.3 liters Fog output 350m³ per minute 570m³ per minute Ready-indicator inside tank Wireless keychain remote included Wired timer remote included...
