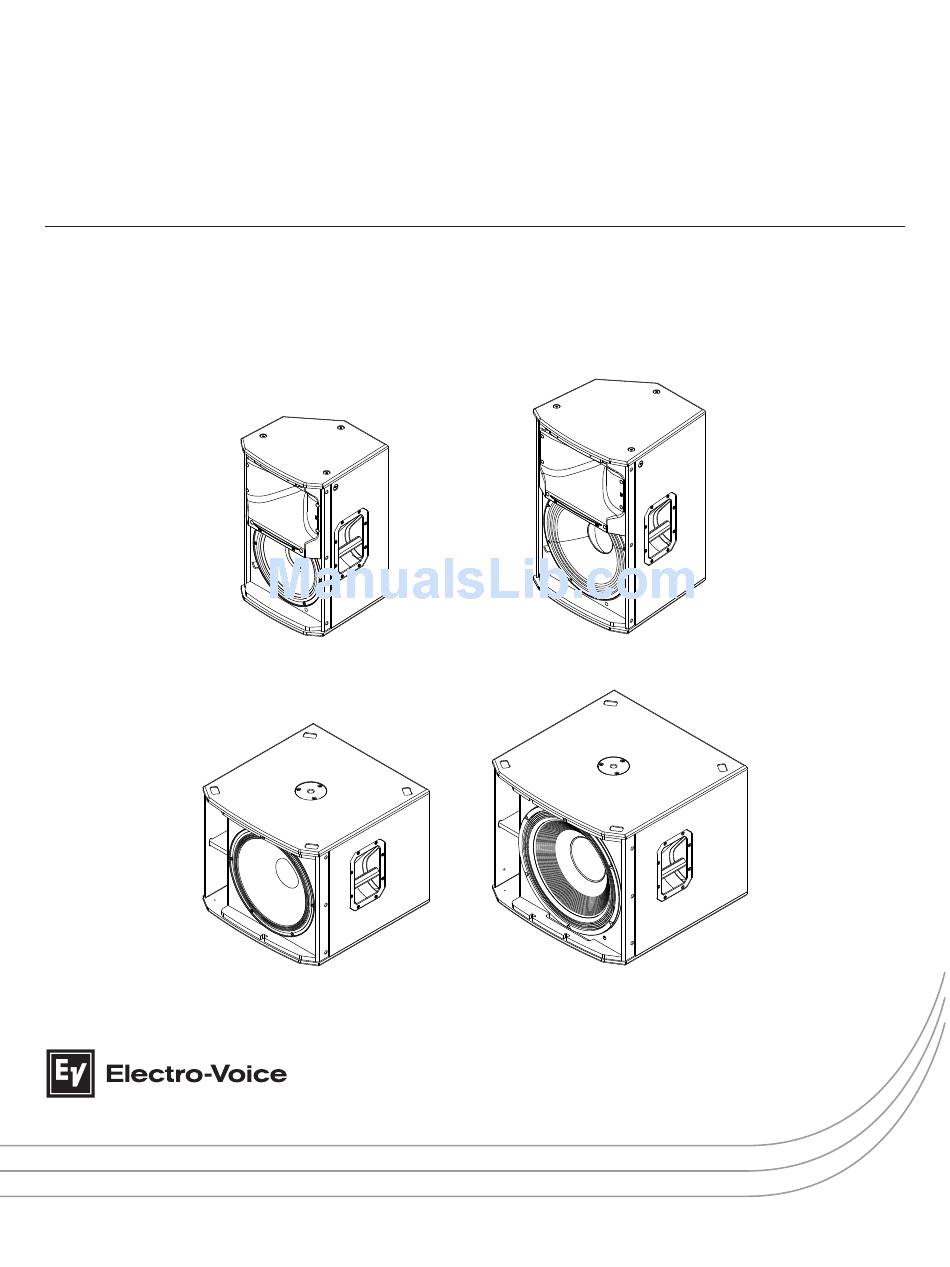

- Page 1 EKX Passive Loudspeakers EKX-12, EKX-15, EKX-15S, and EKX-18S en | User Manual...
-
Page 3: Table Of Contents
System overview Dimensions Frequency response Tripod and floor monitor operation Suspension Recommended configuration Basic stereo system using full-range systems Using full-range systems as stage monitors Stacking full-range-systems with subwoofers Troubleshooting Technical data Electro-Voice User Manual 2015.01 | 01 | F.01U.308.100... -
Page 4: Safety
Do not use Electro-Voice loudspeakers in an environment where temperatures are below 0°C (32°F) or exceed +40°C (104°F). Never expose an Electro-Voice loudspeaker to rain, water, or high moisture. Electro-Voice loudspeakers are easily capable of generating sound pressure levels sufficient to cause permanent hearing damage to anyone within normal coverage distance. -
Page 5: Suspension
Suspending any object is potentially dangerous and should only be attempted by individuals who have a thorough knowledge of the techniques and regulations of suspending objects overhead. Electro-Voice strongly recommends all loudspeakers be suspended taking into account all current national, federal, state, and local laws and regulations. It is the responsibility of the installer to ensure all loudspeakers are safely installed in accordance with all such requirements. -
Page 6: Description
EV system and fully utilize its performance capabilities. The EKX series is the newest member of the Electro-Voice portable loudspeaker family, and combines legendary EV sound quality and reliability with the latest technology — all in a compact package suitable for a wide range of sound reinforcement scenarios, including musicians/DJs and live/club/installed sound applications. -
Page 7: System Features

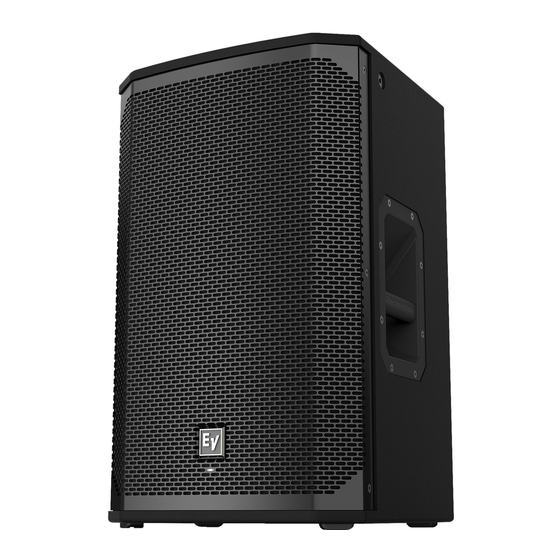

System features EKX-12 – 12-inch two-way passive loudspeaker system ▪ 1400 W (peak), 131 dB SPL utilizing high-sensitivity transducers designed and engineered by EV. ▪ EV-patented Signal Synchronized Transducers (SST) waveguide design provides precise and consistent coverage. ▪ Lightweight, compact 15-mm wood enclosure with internal bracing and durable EVCoat finish. -
Page 8: System Overview
EKX Passive Loudspeakers System overview Dimensions Figure 3.1: EKX-12 dimensions Figure 3.2: EKX-15 dimensions Figure 3.3: EKX-15S dimensions Figure 3.4: EKX-18S dimensions 2015.01 | 01 | F.01U.308.100 User Manual Electro-Voice... -
Page 9: Frequency Response
Frequency response Figure 3.5: EKX-12 Frequency Response Figure 3.6: EKX-15 Frequency Response Electro-Voice User Manual 2015.01 | 01 | F.01U.308.100... - Page 10 EKX Passive Loudspeakers Figure 3.7: EKX-15S Frequency Response Figure 3.8: EKX-18S Frequency Response 2015.01 | 01 | F.01U.308.100 User Manual Electro-Voice...
-
Page 11: Tripod And Floor Monitor Operation
Tripod and floor monitor operation Tripod or pole mount EKX-12 and EKX-15 loudspeakers mount on a tripod stand or on a pole above a subwoofer. Mounting a loudspeaker on a tripod stand Figure 4.1: Full-Range model on a tripod stand Caution! Tripod is not evaluated for safety with this loudspeaker. - Page 12 Turn the M20 threaded pole clockwise to secure the pole to the subwoofer. Using two (2) hands lift the loudspeaker. Set the pole cup located on the bottom of the loudspeaker onto the pole. 2015.01 | 01 | F.01U.308.100 User Manual Electro-Voice...
- Page 13 Floor monitor EKX-12 and EKX-15 loudspeakers may be used as a floor monitor by placing the loudspeaker on the integral monitor angle. To set up a loudspeaker as a floor monitor, do the following: Place the loudspeaker on a level stable surface.
-
Page 14: Suspension
EKX Passive Loudspeakers Suspension The EKX-12 and EKX-15 enclosures have eight (8) M10 threaded points; six (6) points on top of the enclosure and two (2) points on the bottom. Forged shoulder eyebolts rated for overhead suspension may be used to suspend an individual loudspeaker, such as the EBK-M10 accessory. - Page 15 Replace the M10 screw with the fender washer and eyebolts. Notice! If the eyebolts are removed reinstall the screws. If the screws are not reinstalled air leaks occur in the enclosure, resulting in undesirable performance. Electro-Voice User Manual 2015.01 | 01 | F.01U.308.100...
- Page 16 1.5 inch in diameter and 1/16 inch thick under the eyebolt to distribute the load on the enclosure. Figure 5.2: Eyebolt shown with and without washer Figure 5.3: Eyebolts shown oriented in the plane of pull 2015.01 | 01 | F.01U.308.100 User Manual Electro-Voice...
- Page 17 Warning! Never exceed the limitations or maximum recommended working load for Electro-Voice loudspeakers. Disregarding this warning could result in serious injury or death. Figure 5.4: Maximum working load - vertical orientation Warning! Never suspend EKX Series loudspeakers in a vertical column array.
-
Page 18: Recommended Configuration
EKX Passive Loudspeakers Recommended configuration Basic stereo system using full-range systems Basic stereo system using EKX-12’s or EKX-15’s (EKX-15 versions shown). NL4 Pin Configuration Pin 1+ and 1- Used Pin 2+ and 2- Not used Caution! Do not exceed the maximum load rating of the amplifier. -
Page 19: Using Full-Range Systems As Stage Monitors
Using full-range systems as stage monitors Multiple EKX-12’s or EKX-15’s in monitor position (EKX-15 versions shown). NL4 Pin Configuration Pin 1+ and 1- Used Pin 2+ and 2- Not used Caution! Do not exceed the maximum load rating of the amplifier. -
Page 20: Stacking Full-Range-Systems With Subwoofers
Not used Caution! Do not exceed the maximum load rating of the amplifier. Amplifier Load (per Output Channel) # of Subwoofer/Full-Range Nominal Minimum Combinations 4 Ohms 3.8 Ohms 2 Ohms 1.9 Ohms 2015.01 | 01 | F.01U.308.100 User Manual Electro-Voice... -
Page 21: Troubleshooting
Most likely there is a break in the signal path. Poor system Check and correct the system grounding, as required. grounding or ground loop If these suggestions do not solve your problems, contact your nearest Electro-Voice dealer or Electro-Voice distributor. Electro-Voice User Manual 2015.01 | 01 | F.01U.308.100... -
Page 22: Technical Data
EKX Passive Loudspeakers Technical data EKX-12 and EKX-15 EKX-12 EKX-15 Frequency Response (-3 dB): 82 Hz - 18 kHz 75 Hz - 18 kHz Frequency Range (-10 dB): 55 Hz - 20 kHz 50 Hz - 20 kHz Axial Sensitivity: 95 dB... - Page 23 31.8 kg (70.0 lb) Shipping Weight: 31.3 kg (69.0 lb) 40.1 kg (88.4 lb) 1. Half Space Measurement. 2. Maximum SPL is measured at 1 m using broadband pink noise at rated peak power rating. Electro-Voice User Manual 2015.01 | 01 | F.01U.308.100...
- Page 24 Bosch Security Systems, Inc 12000 Portland Avenue South Burnsville MN 55337 www.electrovoice.com © Bosch Security Systems, Inc, 2015...
